12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
12 - 16 Bit Seamless Sphere LED Display Screen With 360 Degree Viewing Angle
Specifications
Control System :
Asynchronous and Synchronous
Humidity Range :
10% to 90% non-condensing
Gray rate :
12-16bit
Display Type :
LED
Pixel Pitch :
Varied
Shape :
Spherical
Operating Temperature :
-20°C to 60°C
Viewing Angle :
Adjustable
Price :
To be discussed
Color :
Full Color
Refresh Rate :
≥1920-3840 Hz
Input Voltage :
AC 110-240V
Brand Name :
No Brand
Model Number :
Sphere LED display
Certification :
CE, CCC, FCC, EMC, UL, RoHs
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
10000above
Delivery Time :
10-15days
Packaging Details :
Customizable cardboard box packaging; customizable flight case packaging
Lifespan :
100,000 hours
Description
Sphere LED Display
Product Overview

Our Sphere LED Display offers a unique 360-degree viewing experience, capable of displaying any video or images across its entire spherical surface.

Key Features
  • 360-degree viewing angle for complete spherical content display
  • Customizable diameter and pixel pitch to meet specific requirements
  • Precision CNC-machined frame with seamless module assembly
  • Lightweight construction with excellent wind resistance
  • Advanced heat dissipation system
  • Front-service accessible design
  • Fan-less quiet operation
  • Custom solutions tailored to job site conditions
Technical Specifications
Indoor Models
Product Model P3 P4 P5 P6
LED Standard SMD1515 SMD2020 SMD2020 SMD2020
Pixel Pitch (mm) 2.9-3.2 3.91-4.1 4.9-5.1 5.9-6.1
Drive Mode 1/22s 1/22s 1/22s 1/22s
Brightness (CD/m²) 1000 1000 1000 1000
Box Material Iron Iron Iron Iron
Max Power Consumption 1000W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 320W/㎡ 240W/㎡ 240W/㎡ 240W/㎡
Outdoor Models
Product Model P6 P8 P10
LED Standard SMD2727 SMD2727 SMD3535
Pixel Pitch (mm) 5.9-6.1 7.9-8.1 9.9-10.1
Drive Mode 1/8s 1/8s 1/4s
Brightness (CD/m²) ≥5000 ≥5000 ≥5000
Box Material Iron Iron Iron
Max Power Consumption 1000W/㎡ 1000W/㎡ 1000W/㎡
Average Power Consumption 320W/㎡ 320W/㎡ 320W/㎡
Common Technical Parameters
  • Refresh Rate: ≥1920Hz
  • Gray Scale: 12-16bit
  • Indoor Protection Level: IP43
  • Outdoor Protection Level: IP65

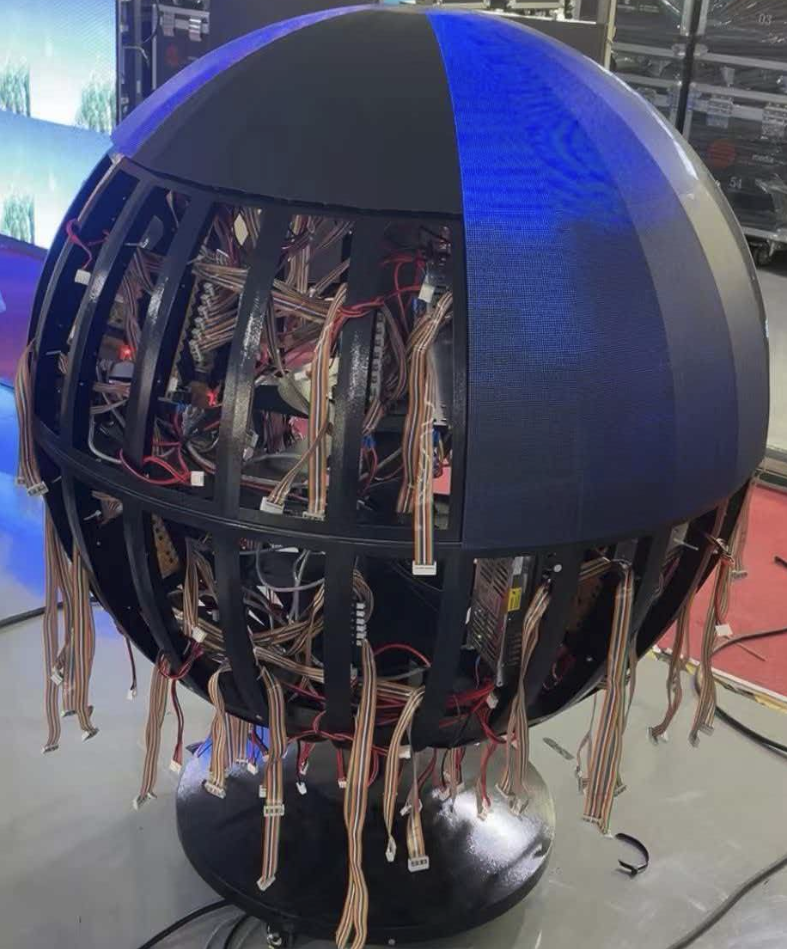

Real-World Display Example
