Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
Specifications
Brand Name :
SINOHONE
Model Number :
Bow-type Ribbon Self-supporting
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Bow-type Ribbon Self-supporting Drop Cable
Fiber Type :
G652, G655 or G657 single-mode fiber
Material of jacket :
PVC, LSZH
Delivery Length :
1 km or 2 km, or as required
Cable Count :
1~2
Operating Temperature :
-20℃~+60℃
Description

Bow-type Ribbon Self-supporting Drop Cable For Indoor Fiber Optic Cable

Description:

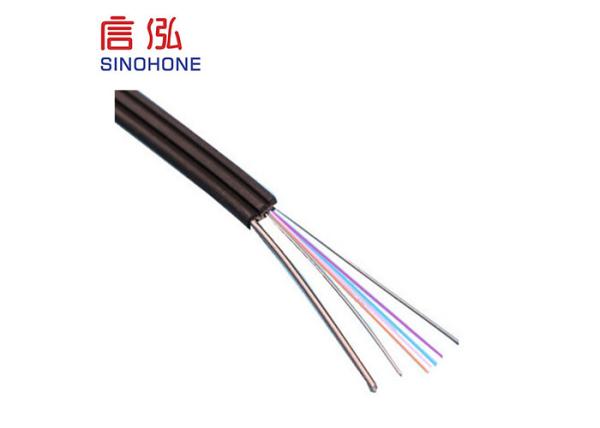

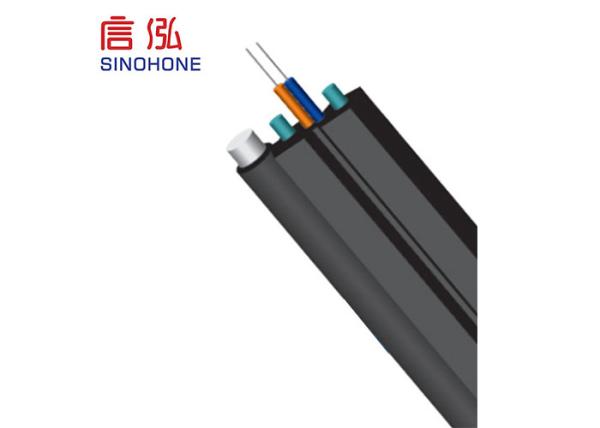

Sinohone self-supporting bow-type fiber cable consists of optical communication unit, strength member, single steel wire and outer sheath. Its optical communication unit includes fibers or tight buffer fibers. While strength member can be metallic or Non-metallic according to customers’ demand.


Characteristics:

  • Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
  • Material of jacket: Flame-retardant polyvinyl chloride (PVC), low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), environmental thermoplastic polyurethane (TPU) or other material;
  • Delivery Length: 1km or 2km, or as required;


Features:

  1. Simple structure, lighter and excellent practicability;
  2. Low smoke zero halogen sheath environment friendly material;
  3. Unique goug design, strip and splic easily,simplify installation and maintenance
  4. Two parallel strength members ensure good performance of crush and tensile strength
  5. Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet work, CATV network and telephone network.
  6. Single steel wire as the additional strength member ensures good performance of tensile strength.


Specifications:

Cable Count

Cable Dimension

(mm)

Cable Weight

(kg/km)

Tensile

(N)

Crush

(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature

(℃)

Long TermShort TermLong TermShort TermDynamicStatic
1~25.2×2.018300600100022006030-20~+60

Note:

  • The cable core use the colored coating fiber of 250μm;
  • H is height of the flat cable;
  • The minimum bend radius (static) is 5H when G657 fiber is used.


Ribbon Drop Indoor Fiber Optic Cable Bow type Self supporting
