Specifications
Brand Name :
SINOHONE
Model Number :
Ftth Drop Cable
Certification :
CE/ROHS/ISO9001/SGS
Place of Origin :
Sichuan, China
MOQ :
1METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Product name :
Indoor Miniature Fiber Optic Cable
Strength member :
Loose tube stranded/SZ stranded
Type :
Single mode
Color :
Black/White
Application :
Outdoor duct and conduit and installation that needs rodent prote
Description

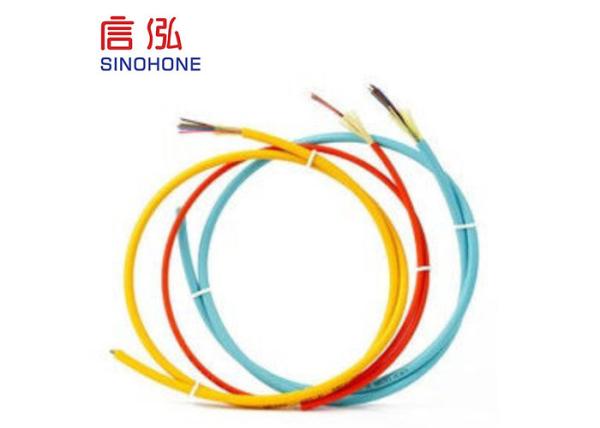

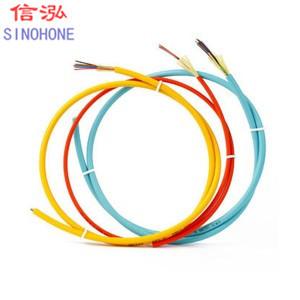

Tight Buffer Fiber FTTH 1-4 Core Indoor Fiber Optic Cable Of Flame Retardant

Characteristics:


Tight buffer fiber and can be striped easily;
The designs of tight buffer fiber and aramid yarn ensure excellent performance of flame retardant
Strength member, glass yarn, ensure excellent tensile resistance;
Excellent press resistant and flexibility;
Excellent rodent resistance;
Material of loose tube has good hydrolysis resistance and high strength;
Excellent temperature and mechanical performance;
Good water-blocking performance;
Not be influenced by electromagnetism due to all dielectric structural design;
Reasoning designs and strict manufacturing processes.

Applications:


Multi-core mobile connectors;
Indoor general cabling
Trunk cabling in buildings

Standards:


YD/T1258.4
IEC60794-2-20/21

Temperature:


Operating temperature: -40°C~+60°C
Storage, transportation and installation temperature: -5°C~+50°C

Structural Parameters

Fiber Count Nominal diameter (mm) Nominal weight (kg/km) Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
4 4.7 24 200 440 300 1000 10D 20D
6 5.2 30 200 440 300 1000 10D 20D
8 5.8 35 200 440 300 1000 10D 20D
12 6.3 41 200 440 300 1000 10D 20D


Combined Structure

Fiber Count Structure Nominal diameter (mm) Nominal weight (kg/km) Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
16 1+4-4.0 13.1 160 400 900 300 1000 10D 20D
20 1+5-4.0 14.1 189 500 1100 300 1000 10D 20D
24 1+6-4.0 15.3 224 600 1400 300 1000 10D 20D
24 1+4-4.5 14.5 180 500 1100 300 1000 10D 20D
36 1+6-4.5 16.8 262 750 1700 300 1000 10D 20D
48 1+6-4.8 17.7 300 750 1700 300 1000 10D 20D
48 1+4-5.5 16.9 239 600 1400 300 1000 10D 20D
60 1+5-5.5 18.3 295 750 1700 300 1000 10D 20D
72 1+6-5.5 19.9 355 900 2000 300 1000 10D 20D


Note:


The structural dimensions and materials used can be designed according to the demands of the customers.
