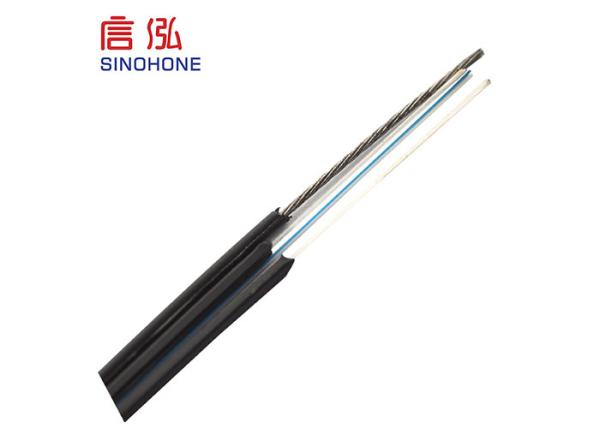

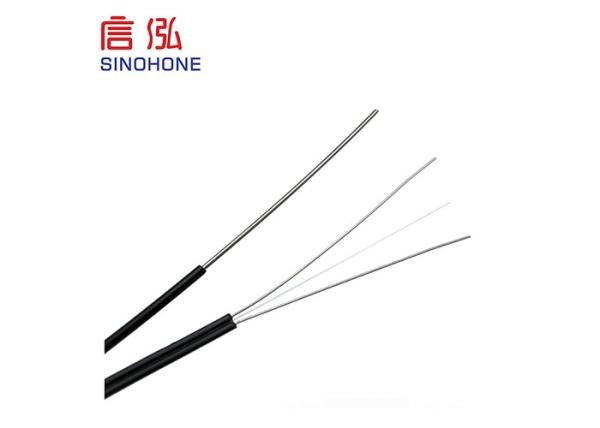

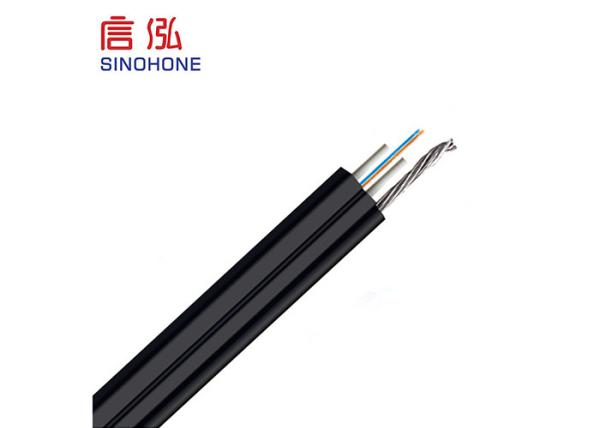

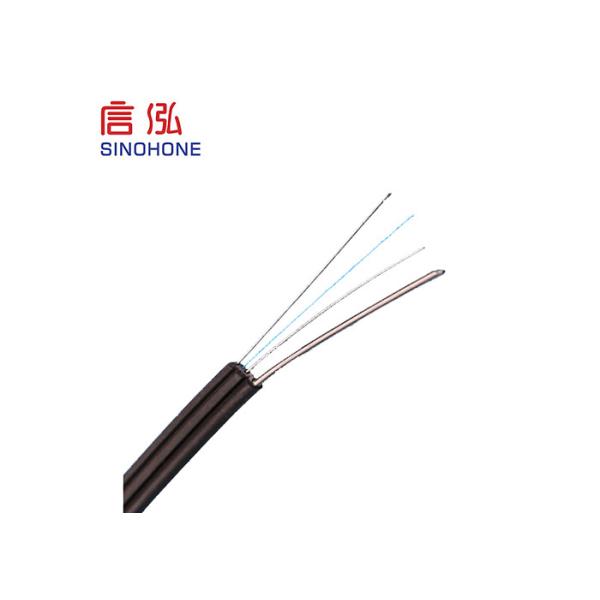

FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
FTTH Aerial Duct Drop Indoor Fiber Optic Cable Bow Type Self Supporting Stretch Proof
Specifications
Brand Name :
SINOHONE
Model Number :
FTTH Self-supporting Bow-type Cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 Meters per Month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
FTTH Self-supporting Bow-type Drop Cable
Installation :
Duct, Aerial
Applications :
Fiber to the Home, Access Network
Outer Sheath :
Low Smoke Zero Halogen
Shape :
Unique Gouge Design
Operating Temperature :
-40°C~+60°C
Description

Indoor Fiber Optic Cable FTTH Self-supporting Bow-type Aerial And Duct Drop Cable

Description of products:

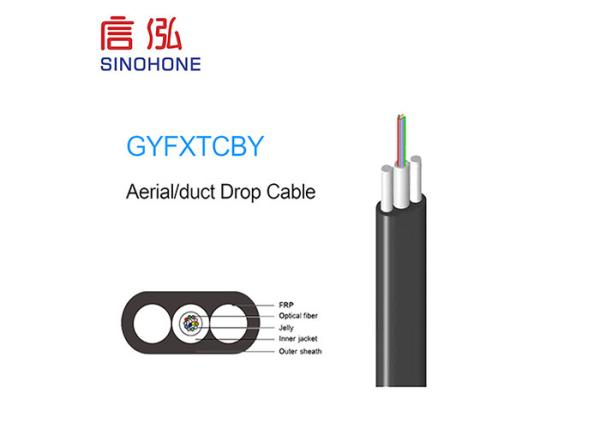

FTTH indoor cable consists of optical communication unit, strength member and outer sheath. Optical communication unit includes fibers or tight buffer fibers, etc. Metallic or non-metallic strength member will be used according to the demands of the customers.

Characteristics:

  • Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of internet network, CATV network and telephone network;
  • Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength.
  • Simple structure, lighter and good practicability
  • Unique gouge design, strip and simplify installation and maintenance;
  • Low smoke zero halogen sheath environment friendly.

Applications:

  • Access network
  • Fiber to the Home(FTTH)

Standards:

  • YD/T1997

Temperature:

  • Operating temperature: -40°C~+60°C
  • Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Fiber Count Dimension(mm) Weight (kg/km) *FRP/# Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
Single or double fibers (2.0±0.2)*(5.0±0.2) *18.0 40 80 500 1000 15 30
#19.5 100 200 1000 2200
Three or four fibers (2.0±0.2)*(5.1±0.2) *19.0 40 80 500 1000 15 30
#21.0 100 200 1000 2200
Single fiber tight buffer (2.0±0.2)*(5.6±0.2) *23.0 40 80 500 1000 15 30
#26.0 100 200 1000 2200

Note:

  • The structure dimension, mechanical performance and material can be designed according to the demands of the customers.
  • The weight of non-metallic cable #:the weight of the metallic cable.
