Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
Specifications
Brand Name :
SINOHONE
Model Number :
FTTH Cable
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan, China
MOQ :
1000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Product name :
Factory Outlet 1F 2F Indoor Fiber Optic Drop Cable
Cable Structure :
Multi-Loose Tube Aluminum Tape Armored
Type :
Single mode
Color :
Black / White
Working Temperature :
-40°C~+85°C
Application :
FTTH FTTB FTTX Network
Description

Factory Outlet 1F 2F Indoor Fiber Optic Drop FTTh FTTx Cable 1km Price

A simplex fiber cable consists of a single strand of glass of plastic fiber. Simplex fiber is most often used where only a single transmit and/or receive line is required between devices or when a multiplex data signal is used (bi-directional communication over a single fiber).

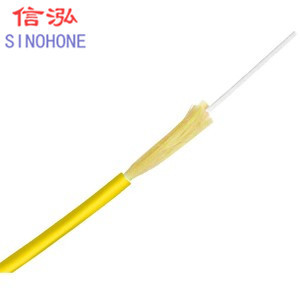

Sinohone indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.


Characteristics:

  1. Cable diameter small,lighter,Bending performance is good,easy to stripping,Low construction cost;
  2. By cold meet technology,Speed, flexibility and quick;
  3. Field wiring can separate wear tube,also can directly fixed cable camp on the wall;
  4. Cable has very high resistance to tension and compression flat force,the Self supporting aerial cable can be capable of the span less than 50m;
  5. Sheath anti-burns the environmental protection material,Fully meet the cable in indoor use of flame retardant performance when the requirements



Application:

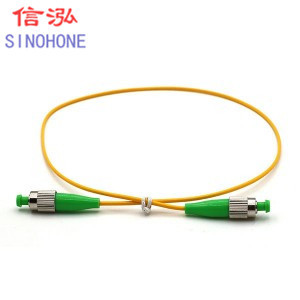

  1. Optical fiber jumper or pigtail
  2. Indoor riser level and pleum level cable distribution
  3. Interconnect between instruments, communication equipment
  4. Transport/storage/operating temperature: -20℃~+60℃

Installation temperature: -5℃~+50℃)

Parameters:

Cable Diameter(mm) TBF Diameter(μm) Tensile Strength Crush Resistance long/short term(N/100mm) Bending Radius
Long/short term(N) dynamic/static(mm)
1.6 600±50 100/500 50/30
1.8 900±50 60/100 100/500 50/30
2.8 900±50 60/100 100/500 50/30
Optical Paremeters
50/125 μm 62.5/ 125 μm G.652 G.655
@ 850nm ≤ 3.5dB/km ≤ 3.5dB/km
@ 1300 nm ≤ 1.5 dB/km ≤ 1.5 dB/km
Attenuation(+20℃) @ 1310 nm ≤0.50 dB/km ≤0.50 dB/km
@ 1550 nm ≤0.40 dB/km ≤0.40 dB/km
@850nm ≥500MHz.km ≥200MHz.km
Bandwidth(
Class A) @1300nm ≥1000MHz.km ≥600MHz.km
Numerial Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤ 1260nm ≤ 1450nm
Attenuation @ 1300nm ≤ 0.25dB/km ≤ 0.25dB/km
at temperature cyclingΔα(-20℃~+60℃) @ 1550nm ≤ 0.10dB/km ≤ 0.15dB/km

Wire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2FWire Single Mode Armored Fiber Cable , Loose Tube Fiber Optic Cable Outlet 1F 2F
