Specifications
Brand Name :
SINOHONE
Model Number :
Non-metallic central tube
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Non-metallic Central Tube Access Fiber Optic Cable
Application :
Duct, Network, Access Network
Structure :
Loose Tube
Fiber Count :
2 ~ 24 Fibers
Outer Sheath :
LSZH
OEM / ODM :
Customize Available
Description

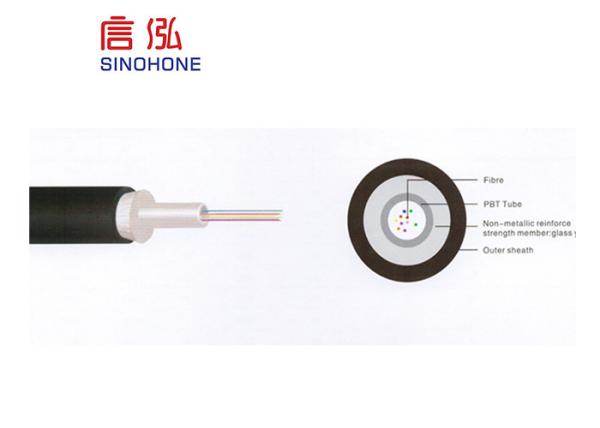

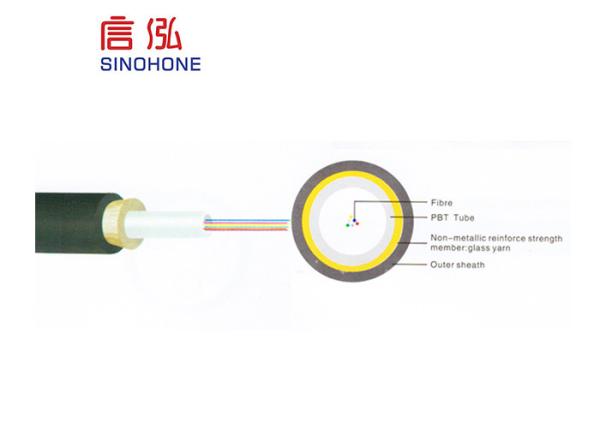

Non-metallic Central Tube Access Outdoor Fiber Optic Cable To Network And Access Network

Characteristics:

  1. Strength member, glass yarn, ensure excellent tensile resistance;
  2. Excellent press resistant and flexibility;
  3. Excellent rodent resistance;
  4. Material of loose tube has good hydrolysis resistance and high strength;
  5. Excellent temperature and mechanical performance;
  6. Good water-blocking performance;
  7. Smaller diameter, light, easy installation.

Applications:

  1. Duct, aerial
  2. Metropolitan area net work
  3. Access network, etc.

Standards:

  1. YD/T1258.4
  2. IEC60794

Temperature:

  1. Operating temperature: -40°C~+60°C
  2. Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Note:

  1. The structural dimensions and materials used can be designed according to the demands of the customers.
  2. LSZH is a good choice of outer sheath material, according to the demands of the customers, we can provide other material.

Fiber Count

Loose tube diameter (mm)

Nominal diameter (mm)

Nominal weight (kg/km)

Permitted Tensile(N)

Permitted Crush(N)

Bending Radius(mm)

Long term

Short term

Long term

Short term

Static

Dynamic

2~12

2.2

6.0

42

600

1500

200

1000

10D

20D

5.2

33

300

600

200

1000

10D

20D

2~12

2.5

6.2

43

600

1500

200

1000

10D

20D

5.5

33

300

600

200

1000

10D

20D

24

3.2

6.7

47

600

1500

200

1000

10D

20D
