Specifications
Brand Name :
SINOHONE
Model Number :
GYTS
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Duct and Non Self Supporting Outdoor Optical Cable
Application :
Telecommunication,Duct,Network
Color :
Customized
Length :
2km or customized length
Name :
Outdoor armor fiber optic cable
Oem :
Available
Installation :
Aerial & Duct,aerial/tube/duct
Structure :
Loose tube
Description

GYTS Buried Duct and Non Self-Supporting Outdoor Fiber Optic Cable For Core Network

Description:

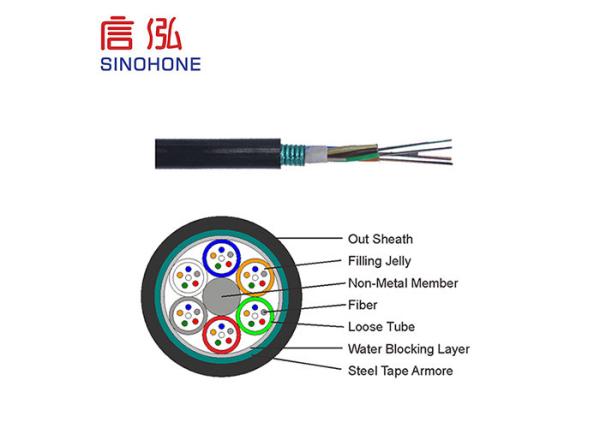

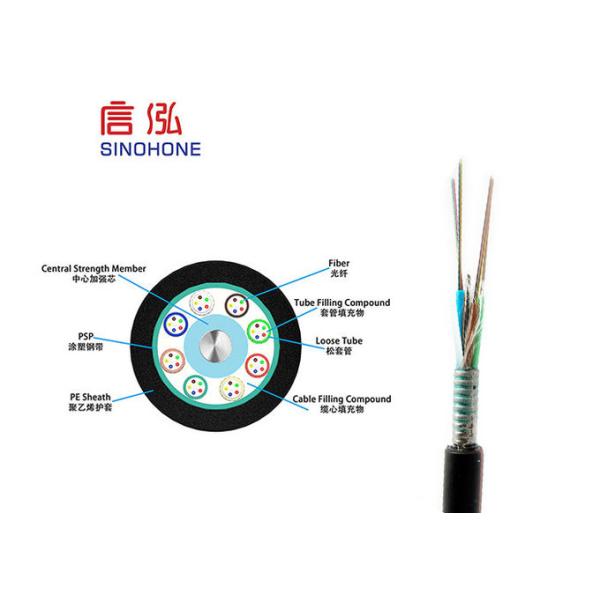

Loose tube stranding, Metal strength member, Flooding jelly compound, Steel-polyethylene adhesive sheath.

Applications

Buried, duct, aerial

Relay communication system
Core network
Temperature Operating temperature: -40°C~+70°C
Standards YD/T901-2009
IEC60794-1

Characteristics:

  1. Corrugated steel tape armoring, loose tube stranding with single sheath;

  2. Loose tube material has good hydrolysis resistance performance and high strength;

  3. Compact structure, excellent water-blocking performance;

  4. Strict manufacturing processes;

  5. Good mechanical performance and environmental properties.

Technical Parameters:

Fiber Count Structure Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
2-30 1+5 9.2 89 600 1500 300 1000 10D 20D
32-36 1+6 9.7 104 600 1500 300 1000 10D 20D
38-60 1+5 9.8 99 600 1500 300 1000 10D 20D
62-72 1+6 10.7 125 600 1500 300 1000 10D 20D
74-84 1+7 11.4 135 600 1500 300 1000 10D 20D
86-96 1+8 12.1 148 600 2000 300 1000 10D 20D
98-108 1+9 12.7 162 600 2000 300 1000 10D 20D
110-120 1+10 13.3 174 600 2000 300 1000 10D 20D
122-132 1+11 13.9 187 600 2000 300 1000 10D 20D
134-144 1+12 14.6 204 600 2000 300 1000 10D 20D
146-216 1+6+12 14.7 212 600 2500 300 1000 10D 20D
218-288 1+9+15 16.7 254 600 3000 300 1000 10D 20D

Note:

  • D refers to the cable diameter;
  • The relevant technical Parameters can be adjusted according to the customer’s demands;
  • The block water way can be adjusted according to the customer’ demands;
  • To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.
