FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable
FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable
FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable
FRP Steel Wire Fiber Drop Cable , 1 KM-5 KM Black Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
Outdoor Fiber Optic Cable
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan, China
MOQ :
1 METER
Price :
USD 0.35 ~ 3.6 / METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer / Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Operating Temperature :
-40~+70℃
Color :
Black
Application :
UL, RoHS, ISO9001, SGS
Product name :
FRP Steel Wire Drop Outdoor Fiber Optic Cable
Life time :
More than 20 years
Oem factory :
Yes
Description

FRP Steel Wire Drop Outdoor Fiber Optic Cable Factory 1KM 2KM 3KM 5 KM In Roll

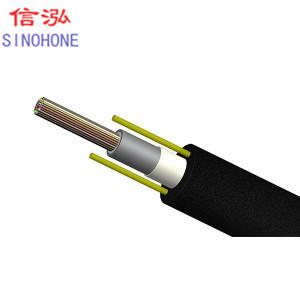

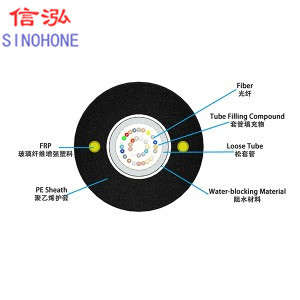

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene (PE) sheath.

Features

  • Good mechanical and temperature performance;
  • High strength loose tube that is hydrolysis resistant;
  • Special tube filling compound ensure a critical protection of fiber;
  • Two parallel FRPs ensure tensile strength;
  • PE sheath protects cable from ultraviolet radiation;
  • Small diameter, light weight and friendly installation;
  • Long delivery length;
  • Standards: GYFXY cable complies with Standard YD/T 769-2003.

Cable Type Fiber Count Cable Weight Tensile Crush Resistance Bending Radius
kg/km Strength Long/Short Term N Long/Short Term N/100mm Static /Dynamic mm
(Increased by 2 fibers)
GYFXY 2~24 100 400/1000 300/1000 10D/20D

G.652D 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20ºC) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm
