Specifications
Brand Name :
SINOHONE
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model Number :
Air Blown Cable
Product Name :
Air Blown Cable Unit
Fiber Type :
SM G.652D、G.657
Fiber Counts :
2 ~12
Attenuation :
0.40dB/km max @1310nm
Port :
Qingdao, Shanghai, etc.
Strength Member :
Non Metallic
Description

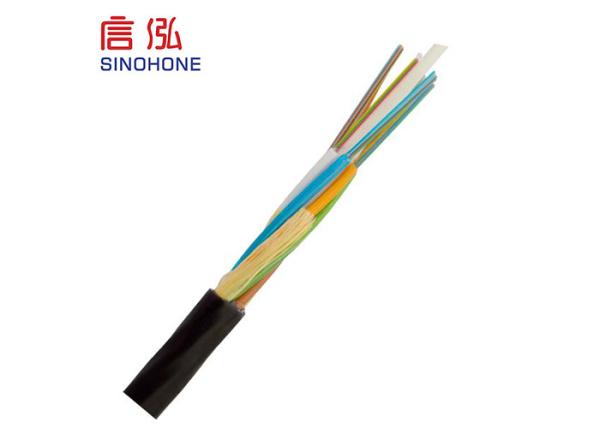

2, 4, 6, 8, 12 Fibers Air Blown Fiber Optic Cable Unit Cable Stable Structure Fiber Unit

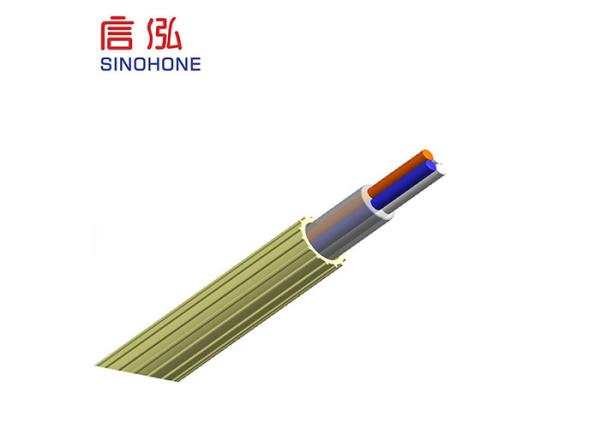

Air Blown fibre unit

Features and Benefits

  • 2,4,6,8 and 12 fibres options.
  • Stable structure, good mechanical and temperature performance.

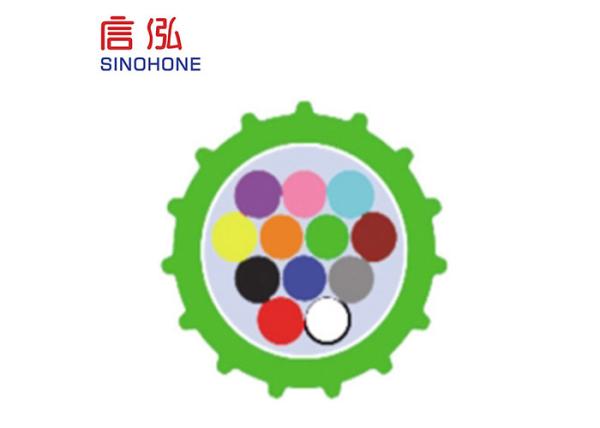

  • Designed with special grooves to advance blowing distance.
  • Lightweight and proper stiffness , repeat installation.
  • Designed with no gel, easy stripping and handling.
  • Better costs advantage compared to traditional product.
  • Complete accessories, less manpower, lower installation time.

Standards

  • Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
  • Optical FibreITU-T G.652G.657 IEC 60793,2-50
  • Optical CableIEC 60794-1-2,IEC 60794-5

Basic Performance Testing parameter


Fibre Unit Attenuation

Fibre Type SM G.652D,G.657
Attenuation 0.40dB/km max @1310nm
0.30dB/km max @1550nm

Blowing Test

Fibre Count 2 Fibres 4 Fibres 6 Fibres 8 Fibres 12 Fibres
Test equipment PLUMETTAZ:UM25, ERICSSON:F, CATWAY:FBT-1.1
Standard duct 5.0/3.5 mm
Pressure 7bar / 10bar
Typical blowing distance 500m / 1000 m 500m / 1000m 500m / 1000m 500m / 1000m 500m / 800m
Typical blowing time 10 min / 18 min 10 min / 18 min 12 min / 18 min 13 min / 18 min 15 min / 20 min

Mechanical Performance

Test Standard Parameters Test Results
Tension EN 18700 A1/501 Load is 1×W Additional attenuation ≤0.05dB after test
IEC 60794-1-2-E1
Bend IEC 60794-1-2–E11A Diam 40mm×3turns Additional attenuation ≤0.05dB,after test
5 cycles at 20℃
Crush IEC 60794-1-2-E3 100 N, 60s Additional attenuation ≤0.05dB,after test

Environment Performance

Test Standard Parameters Test Results
Temperature Cycle IEC 60794-1-2-F1 -30°C, +70°C, Absolute attenuation ≤0.5dB/km, during test
(2 cycles) Additional attenuation ≤0.1dB/km, during and after test
Water Soak IEC 60794-5 1000 hours in water, (Test after temp cycle) ≤0.07dB/km
18℃～22℃ Change compared to start value
Damp Heat Cycle IEC 60068-2-38 25°C, 65°C, 25°C, 65°C, Absolute attenuation ≤0.5dB/km, during test
25°C,-10°C, 25°C Additional attenuation ≤0.1dB/km, during and after test
