Specifications
Brand Name :
SINOHONE
Model Number :
ABF
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Air-blown fiber optical cable
Material :
HDPE, PA or other materials
Color :
Black or other colors
Appplications :
Indoors, Ships, Outdoors including FTTH
Fiber Count :
1 ~72 Fibers
Cable Diameter :
2.5 mm ~ 6 mm
Description

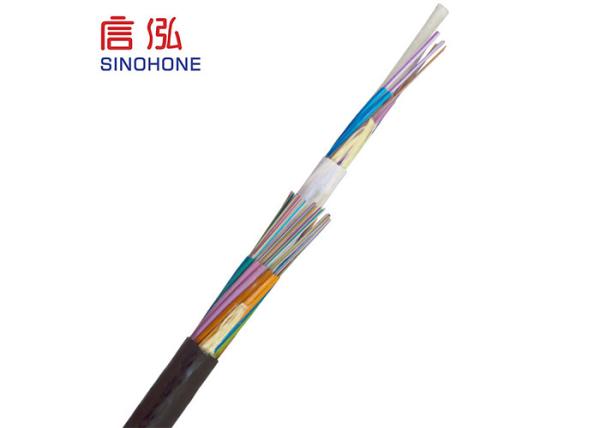

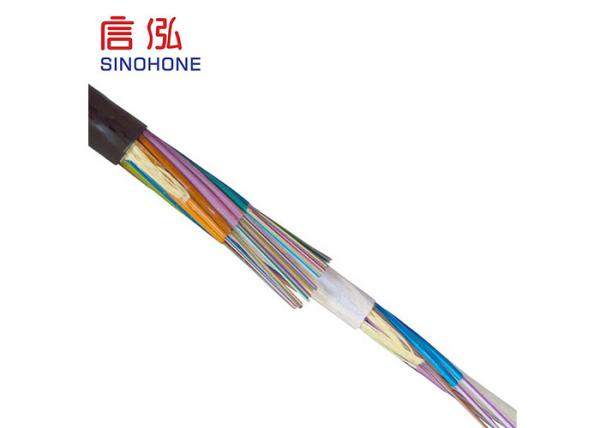

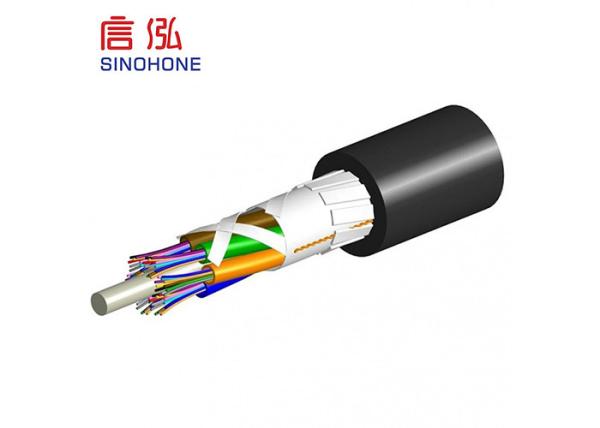

Flexible Air Blown Fiber Optic Cable Duct ABF With HDPE Sheath High Stability

Description

  • Air-blown fiber (ABF) is an ideal solution for time-critical and/or challenging data cable installations.
  • Air-blown fiber also reduces future expansion costs and installation time by laying a foundation where additional fiber cables are added to an existing containing cable more efficiently.
  • The fiber are coated with a soft acrylate resin.
  • The outer sheath is a thermoplastic that is of low friction.
  • The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fiber cable.
  • It provides not only the high level of mechanical protection, but also the perfect blowing performance.

Fiber


SM: G652D. G655. G657 or other single-mode optical fibers.
MM: Ala. Alb or other multi-mode fibers

Material:

High Density polyethylene(HDPE), PA or other materials.
Color: Black or other colors.

Application:


ABF has been used indoors, on ships, outdoors including FTTH or practically anywhere conventional cables are used.

Characteristic

  • The tubes come in many designs with single or some number of tubes inside a single jacket.
  • Cables of tubes are installed like regular cables, meeting usual building codes.
  • Couplings provide connections between tubes for longer runs or branching.
  • Boxes of various designs allow routing tubes or terminating fibers.

Air blown fiber offers

  • Greater flexibility for expansion.
  • Less impact on existing fiber optic connection integrity.
  • Less disruption to business operations.
  • Expansions installed in hours not days.

Fiber Count Cable Dimension (mm) Cable Weight (kg) Tensile (N) Crush (N/10cm) Bending Radius (mm)
Long Term Short Term Long Term Short Term Static Dynamic
1— 6 2.5 5.5 0.15G 0.15G 150 450 10D 20D
7—12 3.0 7.5 0.15G 0.15G 150 450 10D 20D
13—24 4.0 14.5 0.15G 0.15G 150 450 10D 20D
1—36 5.5 28.5 40.0 140.0 150 450 10D 20D
36—72 6.0 36.0 54.0 180.0 150 450 10D 20D

Flexible Air Blown Fiber Optic Cable Duct ABF With HDPE Sheath High StabilityFlexible Air Blown Fiber Optic Cable Duct ABF With HDPE Sheath High Stability
