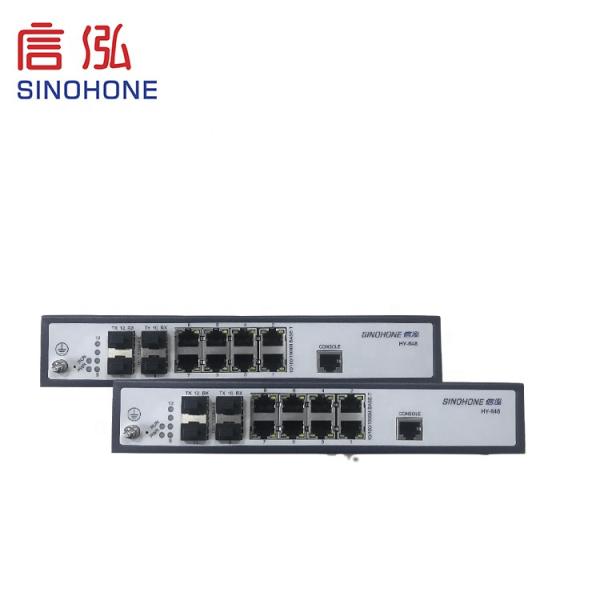

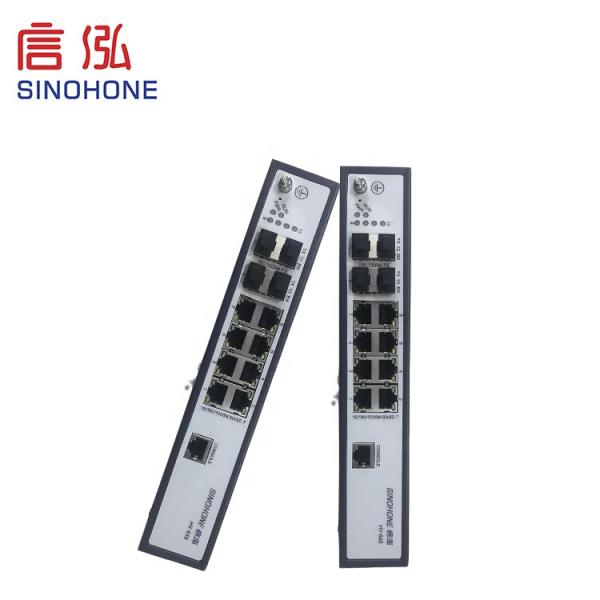

Communication POE Ethernet Switch , Network Fiber Converter Full Half Duplex
Communication POE Ethernet Switch , Network Fiber Converter Full Half Duplex
Communication POE Ethernet Switch , Network Fiber Converter Full Half Duplex
Communication POE Ethernet Switch , Network Fiber Converter Full Half Duplex
Specifications
Certification :
ROHS / UL /CE / CPR
Brand Name :
Sinohone
Model Number :
HY-648PI, Customized, LC, SC, FC, ST Adapters
Place of Origin :
Sichuan, China
Supply Ability :
50000 Pieces per Month
Packaging Details :

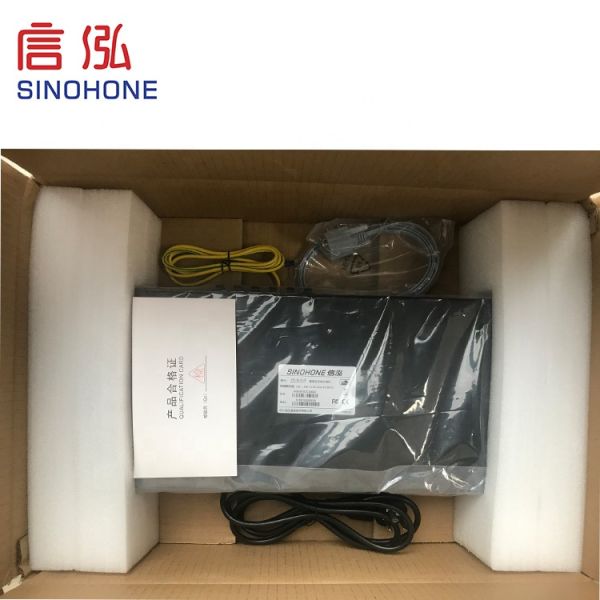

Standard packed in separate box and foam inside
MOQ :
1 Pieces
Price :
$38.00~48.00 per piece
Products Status :
Stock
Ports :
≤ 8
Transmission Rate :
10/100/1000Mbps
Function :
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
53G
Key words :
Industrial Switch
Application :
Telecom/network
Exchange capacity :
53G
Type :
Sliding Fixed
Operating temperature :
-40°C to + 70°C
Product name :
Fiber Optic Network Switch
Description

Communication Industry 2/4/6/8/12/16/24 ports POE network switch 2019 New Arrival

HY-648 is our industrial grade switch, which can be powered by POE and can be used as a PTN remote device.

The product provides high-speed Ethernet service access and supports Ethernet standard protocols.

It simplifies the complex protocol overhead of PTN and provides the OAM capability of the service layer, which makes the design and implementation of the access network more general.

It has the ability to connect with PTN, simplify the operation interface, make the network maintenance means effective and unified, and help to achieve efficient network management.

Product Description

Characteristics:

Item HY-648PI
Number of interfaces Gigabit SFP ports (or specify other optical port forms):4
Gigabit ports (POE power supply):8
Exchange capacity 53G
Mpps 17.85Mpps
POE power supply Support
PTN ring network Support PTN industrial ring network technology, using ERPS protocol, STP protocol
VLAN Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ
MAC 8K MAC address table, support MAC address table dynamic automatic learning and static configuration
QOS Support 8 level QOS queue, support SP, WRR queue scheduling policy
ACL The number of ACL entries can be supported to 256
Management Support local Console serial port and TELNET command line management;
Support SSH;
Support SNMP, WEB management;
Support the unified management through the EMS management system independently developed by our company;
Support remote device software upgrade and backup through FTP and TFTP;
Support RMON performance statistics for ports
Power and power supply No fan, low power consumption, the total power consumption of the equipment is less than 10W
Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)
Other features Port convergence /LACP supported, support 1:1 port protection
Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol
Support port redirection and port mirror function, support port-based failover capabilities
Support MSTP/RSTP protocol
Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device
Support equipment online upgrade
Support storm suppression and port speed limit, speed limit granules up to 64K
Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented
Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
Operating Temperature Industrial grade: (-40 ° C~ 80 ° C)
Storage temperature -40°C～85°C

Qualcomm has strong advantages in mobile chips, wireless connectivity and baseband, as well as patent reserves, especially in 3G and 4G.

Qualcomm has more than 3,900 patents in CDMA technology.

Last year, Qualcomm's Snapdragon 820 processor was excellent and was widely adopted by 115+ flagship terminals. Qualcomm is also very strong on LTE connectivity.

Application

Local Area Network
CATV System
Telecommunication Networks
Equipment Test
