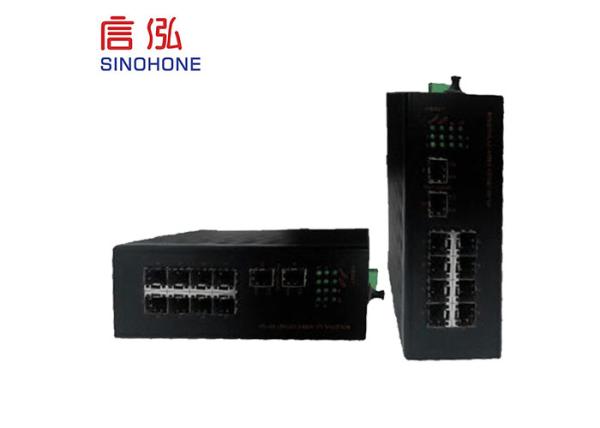

POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
Specifications
Brand Name :
SINOHONE
Model Number :
HY-628PI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box
Product Name :
SinoHone POE Security Industrial Switch
Exchange Capacity :
53G
POE :
Support PoE power supply
Mpps :
14.8 Mpps
PTN :
Support
Protection Grade :
IP40
SFP Port :
2 ports of 100/1000M SFP
Elecetric Port :
8 POE power supply ports 10/100/1000M
Description

POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch

Quick Details

HY-628PI is one of our 8-port special security switch, which can be powered by POE. It can also be used as PTN remote equipment.

This product can provide high-speed Ethernet service access and support Ethernet standard protocol. It simplifies the complex protocol overhead of PTN and provides the OAM capcacity of service layer, which makes the design and implementation of access network more concise.

HY-628PI has the ability to connect with PTN, simplify the operation interface, make the means of network maintenance effective and unified, and help to achieve efficient network nanagement.

Features

  1. High protection level of IP40
  2. Strong electromagnetic compatibility EMS level 4
  3. Stable performance

Technical Sheet

POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch

HY-628PI POE 2 8 10 Port 100/1000M Fiber Optical Ethernet

Security Industrial Switch
Number of interference

100/1000M SFP ports (or specify other optical port forms):2
10/100/1000M ports (POE power supply):8
Exchange capacity 53G
PTN ring network PTN industrial ring network technology, using ERPS protocol, STP protocol
POE power supply Support
Power and power supply No fan, low power consumption, the total power consumption of the equipment is less than 10/15W
Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)

Management

Support local Console serial port and TELNET command line management;
Support SSH;
Support SNMP, WEB management;
Support the unified management through the EMS management system independently developed by our company;
Support remote device software upgrade and backup through FTP and TFTP;
Support RMON performance statistics for ports

Operating temperature

Industrial grade: (-40 ° C~ 80 ° C)

Storage temperature

-40°C～85°C

Application

  • Electric power automation
  • Factory automation
  • Coal mine automation
  • Rail transit
  • Wind energy and wind power

POE 2 8 10 Port 100/1000M Fiber Optical Ethernet Security Industrial Switch
