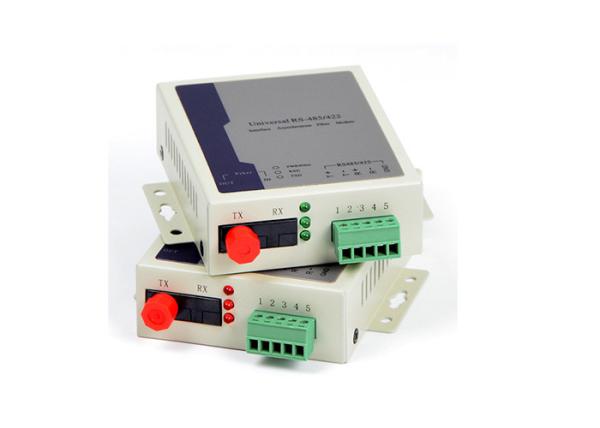

RS485 Single Mode 20km FC SC Fiber Optic Cable Media Converter
RS485 Single Mode 20km FC SC Fiber Optic Cable Media Converter
RS485 Single Mode 20km FC SC Fiber Optic Cable Media Converter
RS485 Single Mode 20km FC SC Fiber Optic Cable Media Converter
Specifications
Brand Name :
Sinohone
Model Number :
HT-485FC
Certification :
CE, ISO, FCC, RoHS
Place of Origin :
China
MOQ :
1 pair
Price :
$7.8-$11 per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 unit per month
Delivery Time :
1-3 workdays
Packaging Details :
Separate box with protection
Working Mode :
Asynchronous, point to point
Installation :
Desk, Wall-Mount
Interface :
RS485 / RS422
Fiber :
SC/FC
Power :
5VDC
Deploy :
Plug and play
Surge Protection :
600W surge protection, 1.5KV static protection
Warranty :
90 days
Description

RS485 To Fiber Optic Cable Media Converter Single Mode 20km FC SC Acess Control Alarm



Description

This RS-485 optical transceiver is perfect for industrial field control, traffic control, distributed data acquisition system, remote terminal data communication, communication distance extender, power system data access and control system.


Features

Fiber type Adaptive use for single-mode & multi-mode fiber
Optical fiber interface FC optical interface (SC is optional)
Transmission distance single-mode fiber transmission 20 kilometers, while supporting multi-mode fiber transmission 500 meters
Transmission wavelength 1310nm/1550nm
Data interface RS-485 supports 32-point polling
Data signal 1000 meters max.
Baud rate 0~115200bps, automatic detection of signal rate
Direction control automatic control technology, automatic identification and control of the data transmission direction
Working voltage AC90-260V
Power supply external power adapter (input AC220V, output DC5V 1A)

Features

  • Support point and ring (multipoint) connection
  • Supports RS-232/485/422 interface, support RS-232485/422 protocol of asynchronous communication, supporting two wire half-duplex (RS-485) Four-wire full-duplex communication (RS-422)
  • Optical fiber interface ST, SC, FC optional (customization required), optical fiber communication distance of 2KM multi-mode, single-mode up to 20KM, 40KM, 60KM.
  • Data communication rate up to 120Kbps .
  • 485 optical Specifications:
  • Interface features: serial compliance EIARS-232/485 protocol
  • Transmission media: SM / MM (fiber), shielded twisted pair (serial)
  • Electrical Interface: DB9 (RS-232 serial port) industrial terminals ( RS-485/422 serial port)
  • Mode of operation: asynchronous operation, point or multi-point, half-duplex 2-wire, 4-wire full-duplex
  • Lightning protection 600WTVS lightning surge protection tube (RS-485/422 serial interface)
  • Transmission rate :300bps—115200bps

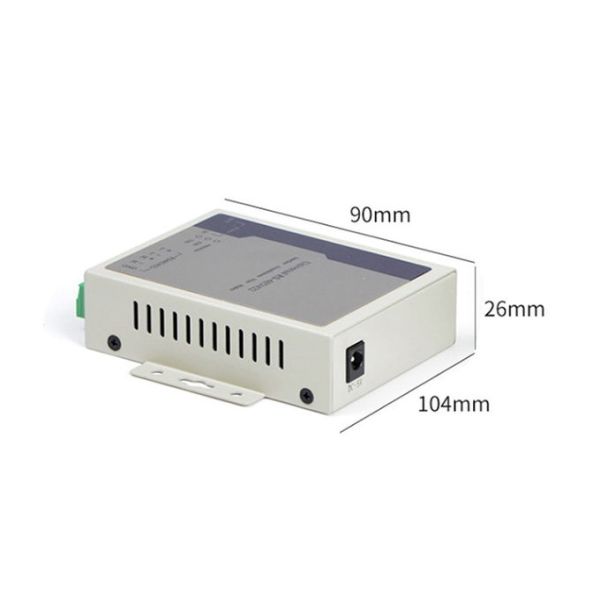

  • Appearance size: 100L*69W*22H mm
  • Use environment: temperature: -20℃-60℃, humidity: 5%-95%
  • Transmission distance: multi-mode 2KM, single-mode 20KM (40KM, 60KM need to be customized)
  • Optical fiber interface: ST, SC, FC interface optional

RS485 Single Mode 20km FC SC Fiber Optic Cable Media ConverterRS485 Single Mode 20km FC SC Fiber Optic Cable Media Converter
