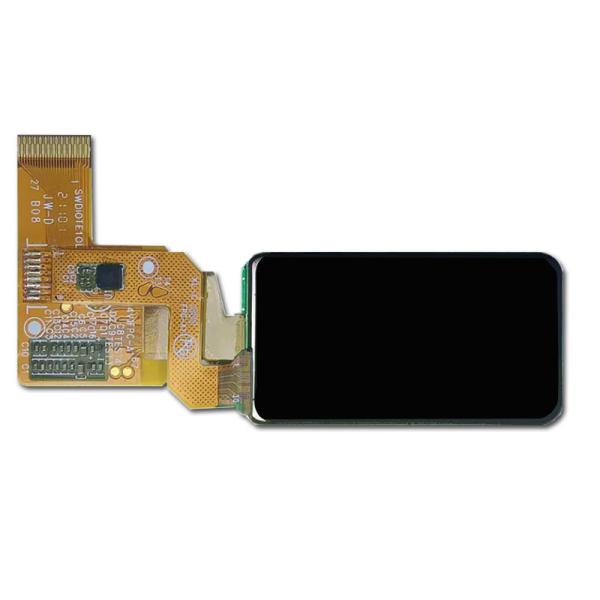

Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Specifications
Brand Name :
Zoyo
Model Number :
ZY14601
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
Flexible MOQ
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
1.46
Resolution :
194*368
Luminance(nits) :
600
Operating Temperature :
-20℃～70℃
Description
GENERAL SPECIFICATIONS
Item Specification Unit Note
Screen Size 1.46
Resolution 194*368 pixels
Operating Temperature ‐20 ~ 70 °C
Pixel Density 282 ppi
Luminance 600 Cd/m2 -
Module Size Horizontal (H) 19.36 mm typ
Vertical (V) 36.17
Thickness (T) 0.5
Active Area Horizontal 17.46 mm
Vertical 33.12
TP Oncell
Shape Bar
Interface Type SPI/QSPI/MIPI/I2C
Color Gamut DCI-P3 Typ. 100%
Color depth 24 bits
Contrast Ratio 1000000:1
Power Consumption(mW) 124 mW
Refresh rate 60Hz(15Hz-AOD)
Low Blue Light 5%
Kind Tips: More details please contact us for products' specifications

Our Service:

Technical Support

  • Customer Service: Access to customer support for addressing queries and issues.
  • Engineering Support: Direct contact with technical engineers for complex integration challenges or custom requirements.

Firmware Updates

  • Regular Updates: Provision of firmware updates to ensure compatibility and performance improvements.
  • Update Instructions: Clear instructions on how to perform firmware updates.

Compliance and Certification Documentation

  • Regulatory Compliance: Information and certification documents for compliance with relevant standards (e.g., CE, RoHS).
  • Quality Assurance: Documentation on quality control processes and product reliability testing.

Mechanical Drawings and 3D Models

  • CAD Files: 3D models and detailed mechanical drawings to aid in the physical design and integration of the display into the end product.
  • Mounting Templates: Templates to assist with precise placement and mounting of the display.
