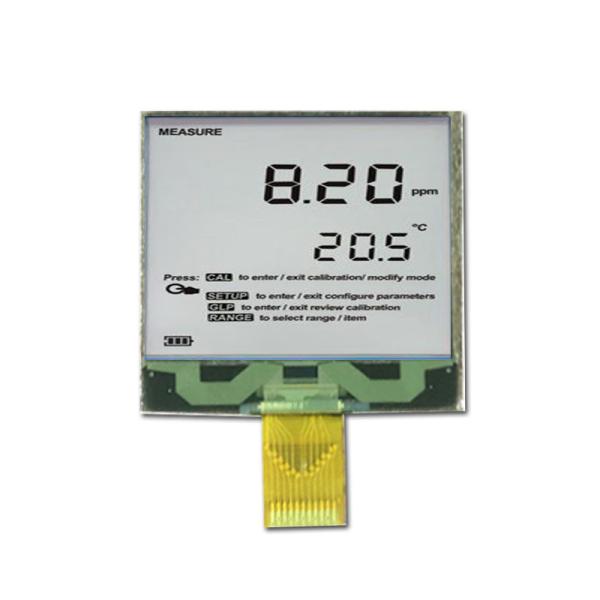

Industrial PMOLED Display Temperature Resistant Oled With I2C Interface
Industrial PMOLED Display Temperature Resistant Oled With I2C Interface
Industrial PMOLED Display Temperature Resistant Oled With I2C Interface
Industrial PMOLED Display Temperature Resistant Oled With I2C Interface
Specifications
Brand Name :
Zoyo
Model Number :
ZY015001
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
Flexible MOQ
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
1.5
Resolution :
128*128
Active Area(mm) :
26.86*26.86
Operating Temperature :
-40℃～70℃
Description
GENERAL SPECIFICATIONS
Item Specification Unit Note
Screen Size 1.5
Resolution 128*128 pixels
Operating Temperature ‐40℃~70℃
Storage Temperature ‐40℃~85℃
Module Size Horizontal (H) 60.5 mm typ
Vertical (V) 47.22
Thickness (T) 2.027
Active Area Horizontal 26.86 mm
Vertical 26.86
Interface Type I2C
Application Smart door locks, instruments

The difference between PMOLED and AMOLED

Feature PMOLED AMOLED
Matrix Type Passive Matrix Active Matrix
Control Mechanism Sequential control of rows/columns Individual pixel control via TFTs
Resolution Lower Higher
Brightness/Contrast Good, but less uniform Superior brightness and contrast
Refresh Rate Lower, potential flickering Higher, suitable for dynamic content
Power Consumption Higher for larger/bright content More efficient, especially with dark content
Complexity/Cost Simpler, cheaper More complex, more expensive
Typical Applications Small, simple displays High-end, high-resolution displays

Our Service:

Technical Support

  • Customer Service: Access to customer support for addressing queries and issues.
  • Engineering Support: Direct contact with technical engineers for complex integration challenges or custom requirements.

Firmware Updates

  • Regular Updates: Provision of firmware updates to ensure compatibility and performance improvements.
  • Update Instructions: Clear instructions on how to perform firmware updates.

Compliance and Certification Documentation

  • Regulatory Compliance: Information and certification documents for compliance with relevant standards (e.g., CE, RoHS).
  • Quality Assurance: Documentation on quality control processes and product reliability testing.

Mechanical Drawings and 3D Models

  • CAD Files: 3D models and detailed mechanical drawings to aid in the physical design and integration of the display into the end product.
  • Mounting Templates: Templates to assist with precise placement and mounting of the display.
