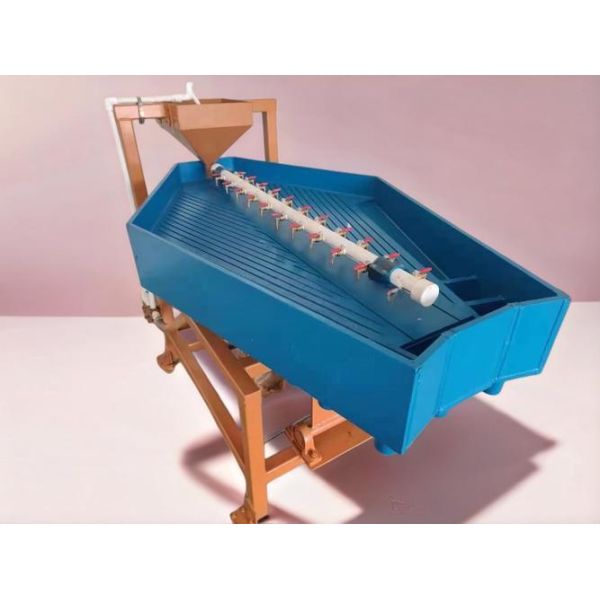

Original Gemini GT1000 gold table

1.Product Introduction Gold Ore Processing Equipment

The Gemini GT1000 is the large-scale industrial model within the "Gemini Series" of gold shaking tables. The name "Gemini" reflects its symmetrical dual-deck structure, which enables high-precision density stratification. "GT1000" signifies its maximum processing capacity of up to 450 kg per hour, making it ideal for medium-scale mineral processing operations. Rather than an electronic or smart system, this is a purely physical gravity separation machine that utilizes mechanical motion and water flow to achieve high-efficiency separation of gold particles from gangue.

2.Application Gold Ore Processing Equipment

Specifically designed for fine-grained gold, the GT1000 is widely used to recover gold particles ranging from 30 microns to 2 mm.

• Artisanal & Small-Scale Mining (ASM): Directly upgrades low-grade raw ore into smeltable high-grade concentrate, bypassing the need for hazardous cyanide leaching.

• Alluvial/Placer Gold: Highly effective for recovering fine gold from riverbed deposits.

• Laboratory & Analysis: Used for the precise separation of mineral samples, including gold, silver, tin, tungsten, and tantalum.

• Tailings Re-treatment: Recovers residual precious metals from waste piles to maximize resource utilization.

• Global Presence: Mature applications are found in major mining regions such as Jiangxi, Yunnan, and Inner Mongolia in China, as well as mining projects across Africa and Southeast Asia.

3.Working Principle Gold Ore Processing Equipment

The equipment is driven by a gear motor and crank mechanism, causing the deck to reciprocate with an adjustable stroke (typically calibrated for optimized mineral travel).

• Deck Construction: The surface features a Glass Reinforced Plastic (GRP) wear-resistant coating with precision grooves designed to trap high-density minerals.

• Water Control: A central water supply system precisely regulates a transverse wash flow of 12 to 38 L/min, creating a stable laminar flow.

• Separation Process: Under the combined action of shaking and water flow, gold particles (density > 19text{ g/cm}^3) settle into the bottom of the grooves, while low-density gangue (such as quartz) is washed away as tailings. Mid-density materials remain in the middle zone for secondary recovery.

• Quick Calibration: The stroke amplitude and deck inclination can be synchronized and optimized by adjusting a single screw, allowing for rapid parameter adaptation to different ore types.

4. Advantages Gold Ore Processing Equipment

• High Recovery Rate: Typically exceeds 90%, reaching 95%–98% under ideal conditions—significantly outperforming traditional gravity equipment.

• Direct Smeltable Output: Produces high-grade gold concentrate that can be sent directly to a furnace, eliminating complex steps like carbon-in-leach (CIL) or adsorption.

• Low Energy Consumption: Equipped with a 1.5 kW motor, the unit consumes less than 15 kWh per day, far lower than flotation or heavy-media separation systems.

• Compact & Portable: Weighing 320 kg with dimensions of 2800 × 916 × 1365 mm, it requires no heavy concrete foundation and is suitable for remote or mobile operations.

• Minimalist Operation: A single operator can manage startup, tuning, and shutdown. The technical threshold and training period are minimal.

• Extreme Durability: The GRP deck with a gel coating is resistant to acid, alkali, and abrasion, offering a service life of over 5 years with very low maintenance costs.
