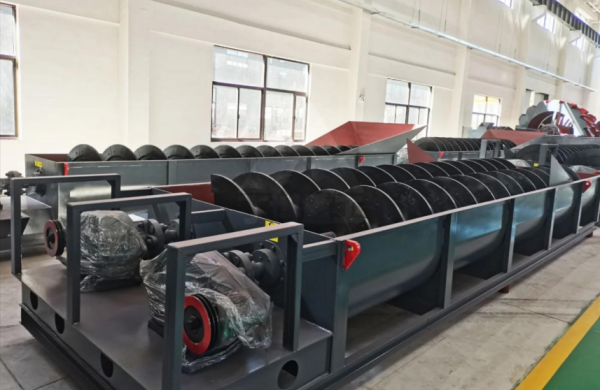

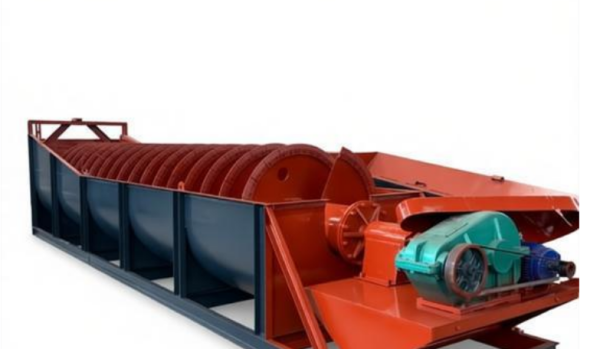

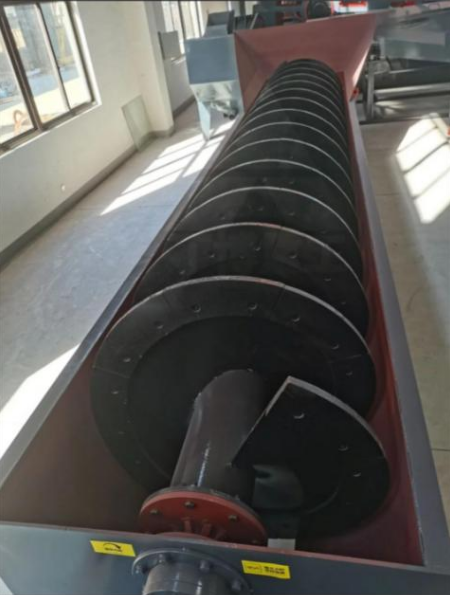

log washer downstream screening
log washer downstream screening
log washer downstream screening
log washer downstream screening
log washer downstream screening
log washer downstream screening
log washer downstream screening
log washer downstream screening
Specifications
Certification :
CE ISO
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Delivery Time :
30 days
Place of Origin :
China
Supply Ability :
50 sets
Price :
2000USD-80000USD
Packaging Details :
Container or Bulk Cargo Ship or Flat Rack
MOQ :
1
Processing Capacity :
20TPH-5000TPH
Brand Name :
Staurk
Description

Product Overview

The downstream screening plant is a core post-processing module configured immediately after log washer, forming a complete wet scrubbing & classification flow. Twin counter-rotating shafts of log washer break viscous clay lumps via stone-on-stone attrition and discharge water-laden clean aggregates; the downstream screen undertakes secondary rinsing, impurity removal, dewatering and precise particle grading to eliminate residual slime, lightweight organics and mud coatings left after scrubbing.
Equipped with full-length spray manifolds above screen decks, high-volume water jets flush fine contaminants into underflow slurry tank, while separated sized aggregates are dewatered to low moisture content for direct stacking or feeding to crushing, gravity separation and flotation lines. Single/double/triple deck screen configurations are customizable to output 2–4 spec clean products simultaneously.

Working Principle

1.Scrubbed wet material flows out from log washer discharge chute onto inclined vibrating screen surface;

2.High-pressure spray bars conduct secondary full-surface rinsing to strip residual clay film;

3.Vibration stratifies materials by particle size, separating coarse, medium and fine fractions on different decks;

4.Slurry containing silt, fine mud and floating trash falls through screen meshes into collecting sump;

5.ewatered graded clean aggregates discharge separately via segmented chutes to finished stockpiles.


Core Features & Advantages

1.Perfect matching with log washer for integrated wet washing workflow, no material leakage

2.Multi-deck sizing, flexible mesh selection to meet diverse finished grain requirements

3.Polyurethane wear-resistant screen panels, long service life, easy quick replacement

4.Full coverage spray rinsing system, maximizes post-scrubbing cleanliness rate

5.Effective dewatering cuts material surface moisture, reduces follow-up drying cost

6.Heavy-duty vibrating exciter, stable operation under continuous high-throughput wet feed

7.Modular bolted frame, easy installation, maintenance and plant layout adjustment

8.Optional trash removal chute to discharge floating plastic, roots and light debris
