Specifications
Brand Name :
ORCAUBOAT
Model Number :
TITAN mowing
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
100 Units Per Month/month
Delivery Time :
4-6 Weeks
Packaging Details :
Sea-Worthy Packing
Hull size|Length, width and height/mm (extension arm not included) :
Length 3150 × width 1660 × height 1480
Hull size|Length, width and height/mm (standard 1m extension arm) :
Length 4030 × width 2380 × height 1480
Charging time :
5 hours
Safety protection and dustproof design :
IP55
Hull weight (no load) :
430kg
Battery life :
8 hours
Working minimum water depth :
800mm
Rated storage volume :
0.45m³
Description

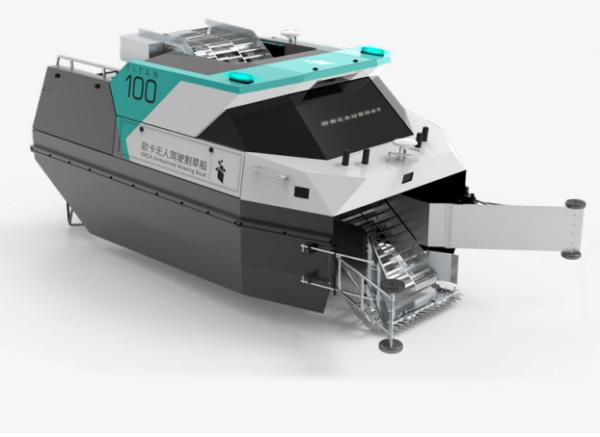

TITAN Unmanned Mowing Boat Unmanned Ship Surface Robot Artificial Intelligence

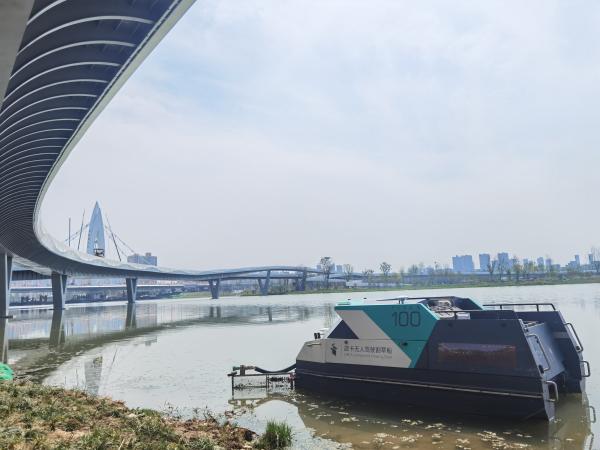

TITAN unmanned mowing boat has functions such as fully automatic waterweed harvesting, water surface cleaning, water quality inspection, etc. The main application scenarios are lakes, inland rivers and other waters.

Core functions:

waterweed harvesting, water quality monitoring, intelligent route planning, full load of garbage, and return to the charging dock.

Product advantages:

Dimension TITAN 100 Traditional labor Semi-automatic machinery
Maintenance area 24.7acres/boat 3.2acres/person 16.4acres/person
Length of work 16h/day 6h/day 6h/day
Safety Driverless, 100% safe People + tools, high labor risk Manned driving, driving risk is high
Response efficiency 24h online response Working time response Working time response
Energy consumption Clean energy, charging at night, working during the day Manpower Gasoline energy, need to be purchased at the petrol station
Quality of work Consistent harvest depth, no omissions Inconsistent harvest depth, affected by environmental changes Affected by work status and attitude
Skill requirements Smart machine operation, easy to use, no certificate required Skilled in using tools, skilled in ferrying boats, swimming license required Skilled in mechanical boat driving, swimming license required, crew certificate required

Response efficiency

24 hours response

Product Highlights:

1.Multi-functional module compatibility: After the harvesting season of the aquatic plants is over, the unmanned ship can have multiple cleaning modes such as area cleaning and edge cleaning by installing the extension arm. The mobile APP supports the independent selection and combination of cleaning modes.

2.Intelligent path optimization: With the support of intelligent algorithms, the unmanned ship can plan and optimize the clean path to achieve efficient and safe operations.

3.PAD control: The original PAD tablet front-end interaction is easier to operate than a mobile phone, and lighter and easier to carry than a computer.

Intelligent Unmanned Pond Maintenance Boat Water Surface Cleaning Robot IP55

Hull size|Length, width and height/mm (extension arm not included) Length 3150 × width 1660 × height 1480
Hull size|Length, width and height/mm (standard 1m extension arm) Length 4030 × width 2380 × height 1480
Hull material Aluminum alloy
Hull weight (no load) 430kg
Rated load 100kg
Charging time 5 hours
Battery life 8 hours
Rated storage volume 0.45m³
Working minimum water depth 800mm
Safety protection and dustproof design IP55

Configuration service:

Basic Configuration: silver metal charging cabinet

Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module

Intelligent Unmanned Pond Maintenance Boat Water Surface Cleaning Robot IP55Intelligent Unmanned Pond Maintenance Boat Water Surface Cleaning Robot IP55

Since its establishment, OrcaUboat has focused its research on the core technology of surface unmanned driving. The technology has been systematic, and the field of surface maintenance has been deeply digged. Starting from multiple specific scenarios, it has developed such as water surface situation perception and complex water conditions. Trajectory control and decision-making after information collection. After many experiments, research and development and iteration, great progress has been made on these three levels. These three technical levels are basically in the lead in the industry. In addition, the product design is highly integrated.
