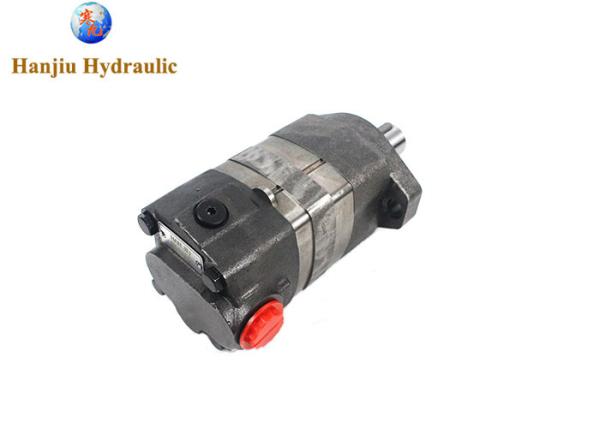

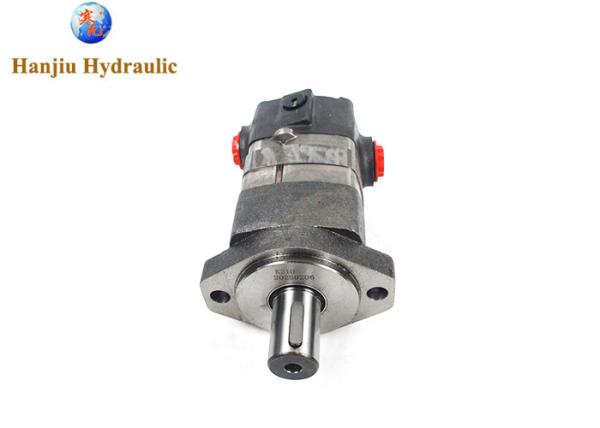

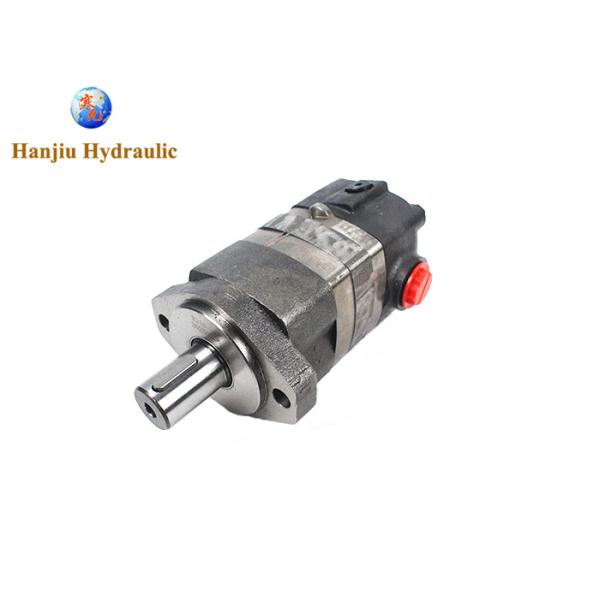

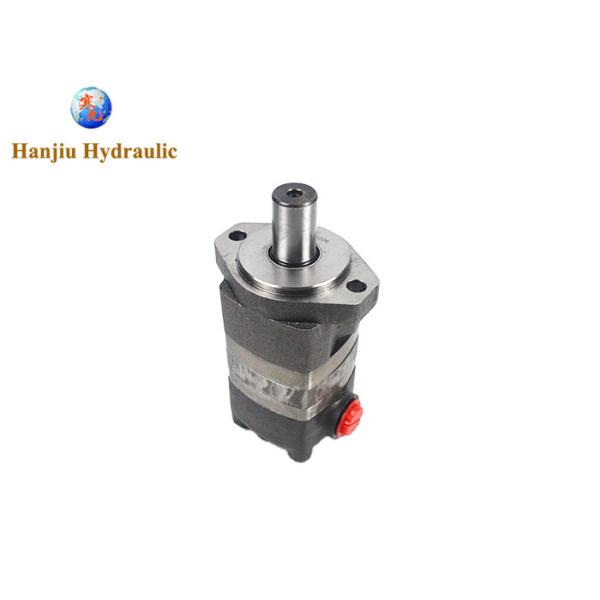

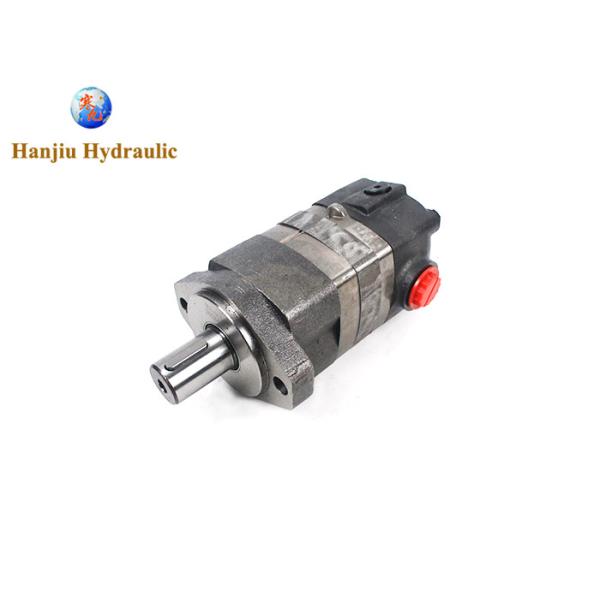

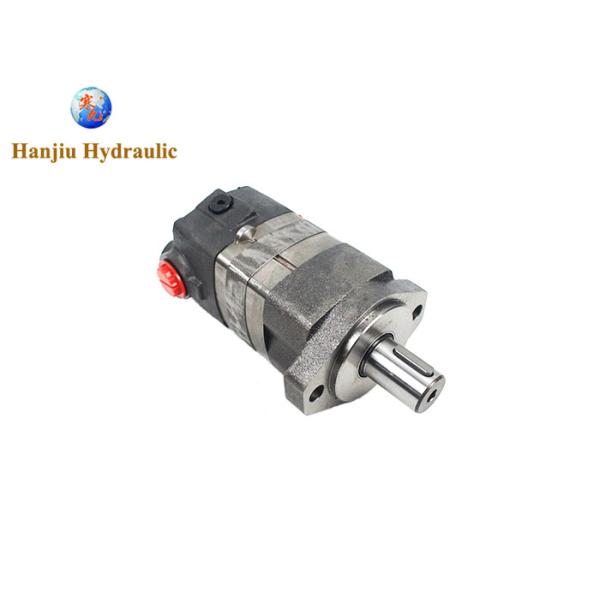

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer
Specifications
Brand Name :
HANJIU
Model Number :
104-1062-006
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
90 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Low speed high torque motor
Material :
Cast iron
Displacement :
100ml/r
Flange :
2 Bolt Standard Flange
Port size :
1.0625-12 UN-2B SAE O-Ring Ports
Drain line :
.4375-20 UNF-2B SAE O-Ring Port
Description

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 for Petroleum Trailer

Quick review:

Model No.: BMK2-100= 104-1062-006

  • Rotation Reversible
  • Mount Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle (SAE A)
  • Shaft :1 1/4 Inch Straight
  • Ports 1.0625-12 UN-2B SAE O-Ring Ports - Ports Oriented 180 Deg To Each Other
  • Case Drain .4375-20 UNF-2B SAE O-Ring Port

displacement 100 cubic centimetre per revolution
speed 742-924 rpm
torque 295-445 nm
mounting
2 Bolt SAE A Flange
shaft 1 1/4 Inch Straight

Main specifiction:

Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer

More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:

6.2 Ci Char Lynn Hydraulic Motor 104-1062-006 For Petroleum Trailer

80cc 100cc 130cc 160cc 195cc 245cc 305cc 395cc 490cc
104-1001-006 104-1002-006 104-1003-006 104-1004-006 104-1005-006 104-1006-006 104-1007-006 104-1143-006
104-1037-006 104-1038-006 104-1039-006 104-1040-006 104-1041-006 104-1042-006 104-1043-006 104-1044-006
104-1022-006 104-1023-006 104-1024-006 104-1025-006 104-1026-006 104-1027-006 104-1028-006 104-1228-006 104-1420-006
104-1061-006 104-1062-006 104-1063-006 104-1064-006 104-1065-006 104-1066-006 104-1067-006 104-1068-006 104-1421-006
104-1029-006 104-1030-006 104-1031-006 104-1032-006 104-1033-006 104-1034-006 104-1035-006 104-1229-006 104-1422-006
104-1087-006 104-1088-006 104-1089-006 104-1090-006 104-1091-006 104-1092-006 104-1093-006 104-1094-006 104-1423-006
