Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-375-MD-G2
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the selle to get the best offer
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Hydraulic Motor
Size :
375 ml/r
Flange :
4-bolt
Rotation :
CW
Description

BMER-375 Orbit Hydraulic Motor Supplier - China Gerotor Motor Supplier

Welcome!


Hydraulic Motor manufacturer from China specializes in high performance bidirectional hydraulic motors for

mixing, sweeping, lifting, conveying and various applications.

Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

BMER-2-375-MD-G2

displacement 375 ml/r
flange 4-13.5 Magneto Mount
ports G1/2

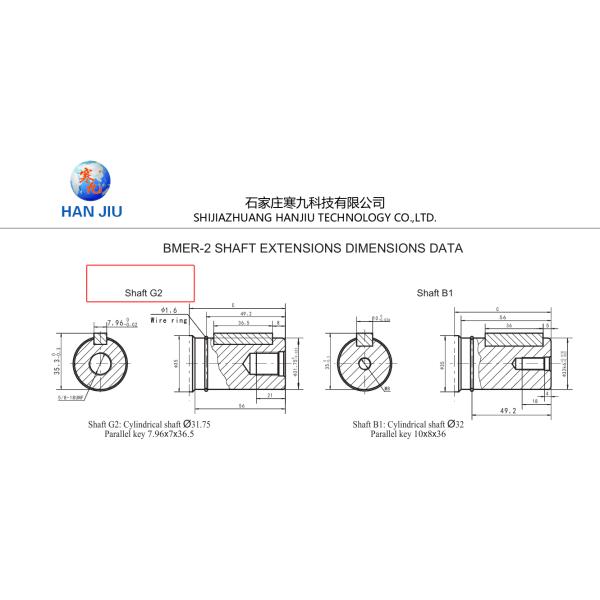

output shaft 31.75mm Parllel Key shaft
rotation CW
paint black

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

Specification:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90

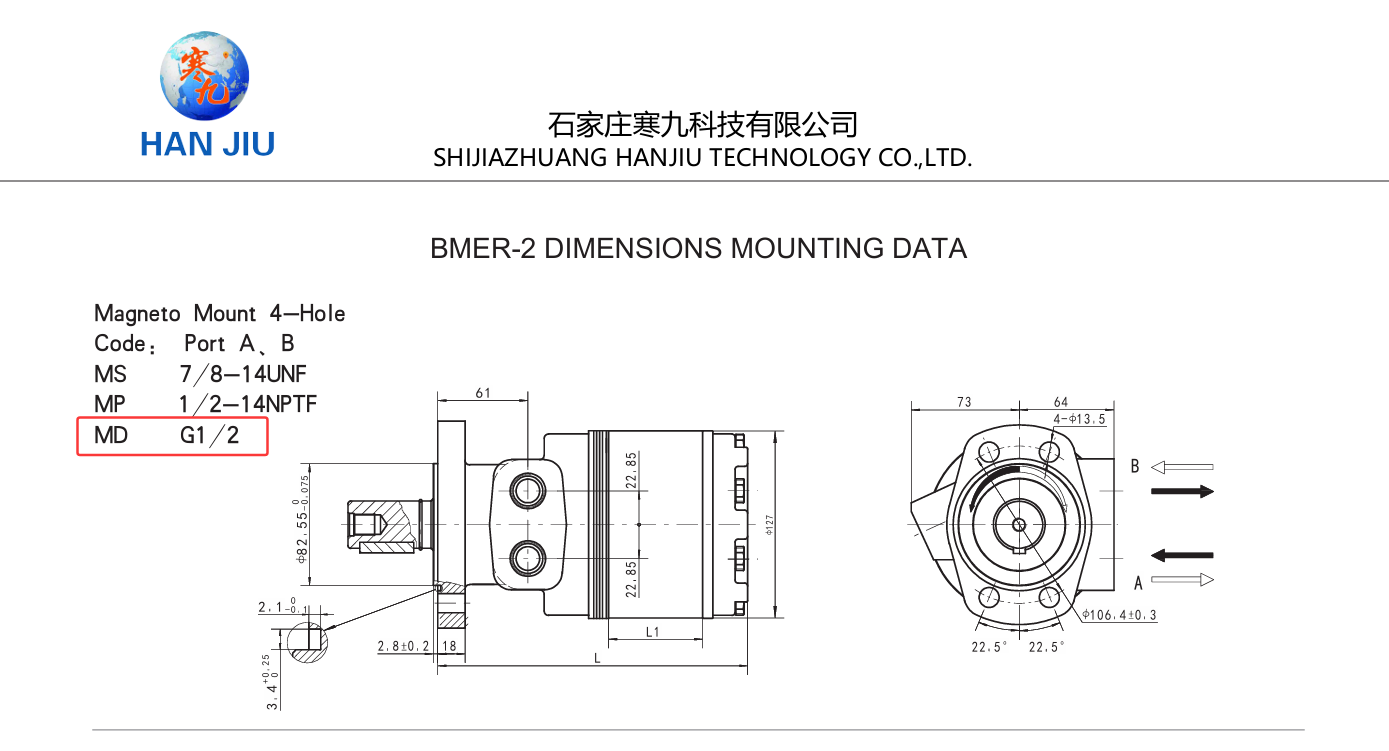

Mounting size of : BMER-2-375-MD-G2

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

More mounting sizes available for BMER series:

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

More BMER series motors available:

BMER-375 Orbit Hydraulic Motor Supplier China Gerotor Motor Supplier

Contact us to learn more about BMER series hydraulic motors
Welcome to send your original equipment code, which can help us quickly match the model suitable for your business
We hope that our experience and technology can create value for you.
