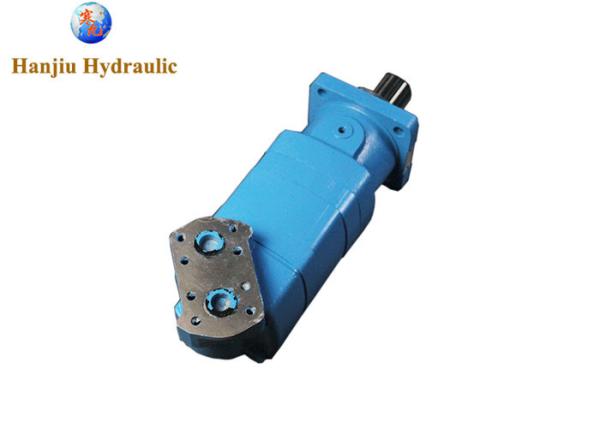

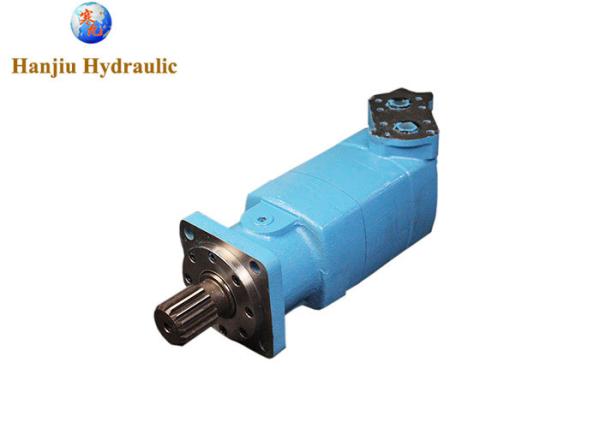

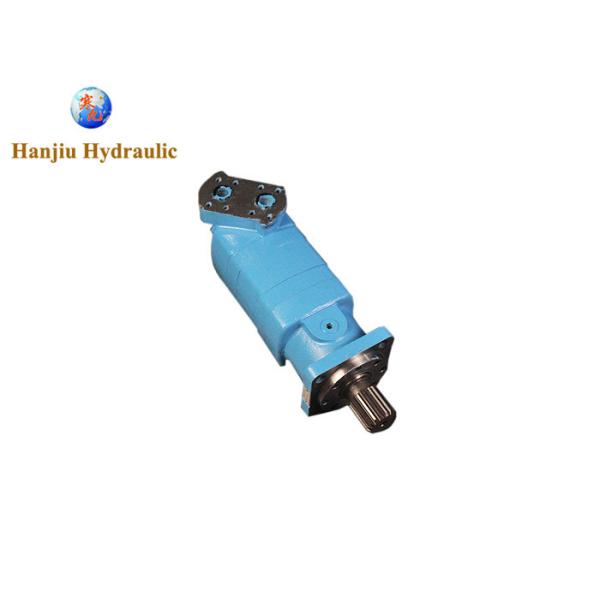

BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
Specifications
Brand Name :
HANJIU
Model Number :
119-1047003
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
350
Payment Terms :
L/C,T/T,Western Union,Western Union
Supply Ability :
300000 sets per year
Delivery Time :
35 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
disc valve motors
Model :
BMK10
Displacement :
940CC
Flange :
127.0 [5.00] PILOT DIA.
Shaft :
16teeth SPLINE SHAFT
Port :
1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
Description

Hydraulic Geroler Disc Valve Motor 10000 Standard, 940.8 cm³/r with spline shaft 4-Bolt Flange



HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor



SPECIFICATIONS

Series BMK10-940=119-1047
Displacement 940cm³/r
Mounting Type STANDARD, 4 BOLT; 127.0 mm PILOT DIA
Shaft Type 53.98 [2.125] DIA. FLAT ROOT
Maximum Operating Temperature 180 °F
Output Shaft Size Spline shaft
Overall Height 5.79 in
Overall Length 17.74 in
Overall Width 5.91 in
Seal Type Standard
Drain Connection Size
1 1/4 inch Split Flange



Main Specification

Type BMK10
350		 BMK10
480		 BMK10
665		 BMK10
940
Geometric displacement
(cm3 /rev.)		 351 479 638 933
Max.speed (rpm) cont. 500 350 250 178
int. 790 560 400 280
Max.torque (N•m) cont. 1050 1480 2080 2750
int. 1400 1980 2600 3400
Max.pressure drop
(MPa)		 cont. 20.5 20.5 20.5 19
int. 27.5 27.5 26 24
Max.flow (L/min) cont. 170 170 170 170
int. 265 265 265 265



BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange


BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange



Eaton similar type motors are available we belows:

10000 (119-) HANJIU BMK10


119-1044-003
119-1045-003
119-1046-003
119-1047-003

119-1032-003
119-1033-003
119-1034-003
119-1035-003

119-1040-003
119-1041-003
119-1028-003
119-1029-003
119-1042-003
119-1043-003
119-1030-003
119-1031-003


BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
