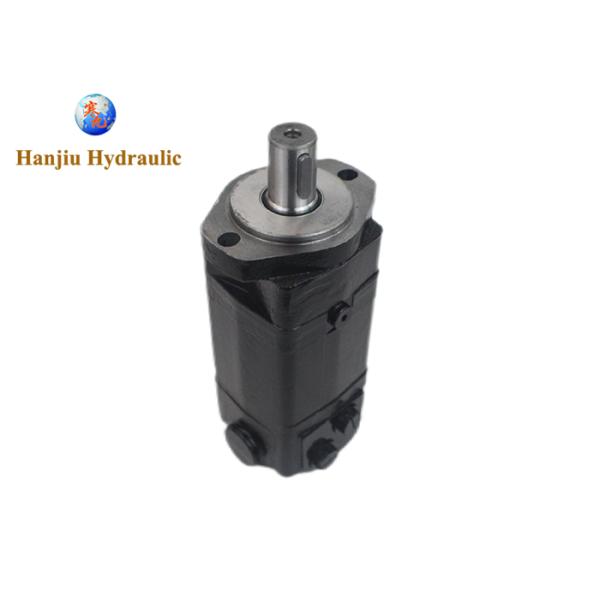

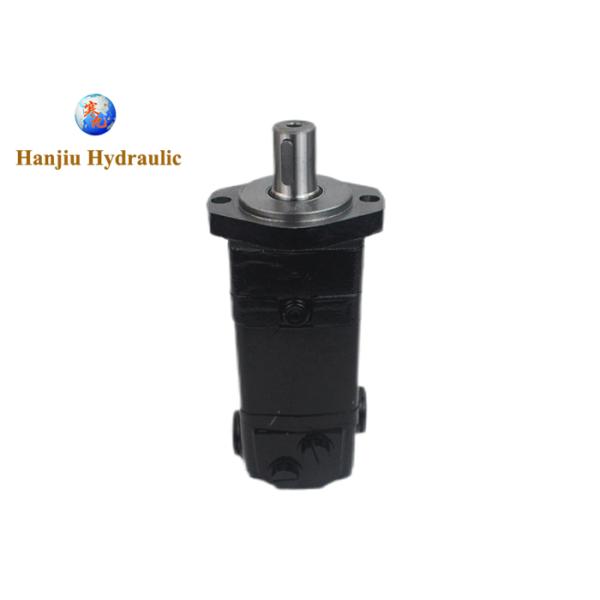

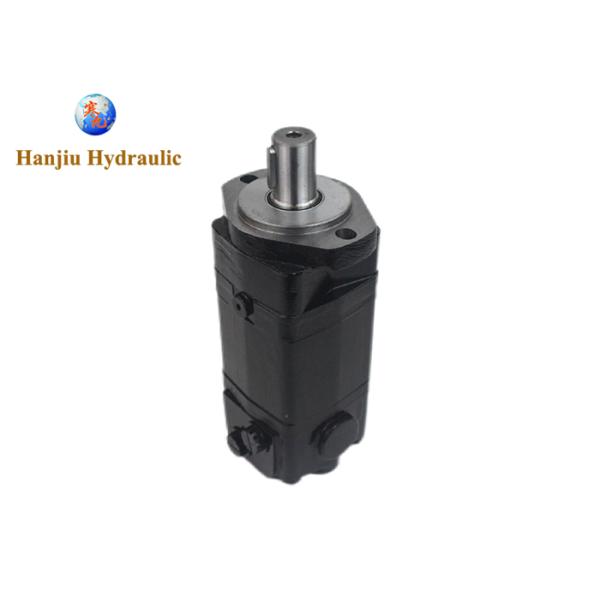

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port
Specifications
Brand Name :
HANJIU
Model Number :
BMSY-500-E2-G-SU
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact seller for latest offer
Payment Terms :
T/T
Supply Ability :
200000 pieces per year
Delivery Time :
0 - 35 work days
Packaging Details :
Box, carton, pallet
Product :
Hydraulic Motor
Model No. :
BMSY-500-E2-G-SU
Manufacturer :
Hanjiu
Brand :
Hanjiu
Description

BMSY series hydraulic motors 500cc 2-bolt flange 31.75mm key shaft 7/8-14UNF port

Quick review:

BMSY-500-E2-G-SU

  • Port Size: 7/8-14UNF O-RING
  • flange: 2 bolt
  • displacement: 500cc
  • Shaft:31.75 mm
  • Port Location:side ported

BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.

Main Specifications:

Type BMSY
80		 BMSY
100		 BMSY
125		 BMSY
160		 BMSY
200		 BMSY
250		 BMSY
315		 BMSY
400

BMSY

500
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 394 475
Max. speed (rpm) cont. 800 748 600 470 375 300 240 185 155
int. 988 900 720 560 450 360 280 225 185
Max. torque (N·m) cont. 190 240 310 316 400 450 560 880 910
int. 240 300 370 430 466 540 658 980 990
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11 9
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 12 11
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 16 14
int. 21 21 21 21 16 16 14 19 15
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 21 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6 14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

More BMSY series hydraulic motors available from us:

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

HANJIU is an expert in hydraulic motors . HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality. HANJIU enthusiastically looks forward to working for people all over the world

OMS MS BMSY Series Hydraulic Motors 500cc 2-bolt Flange 31.75mm Key Shaft 7/8-14UNF Port

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
