Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-750-VD-FD1-B
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
145 usd/pc
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ wooden box, wooden pallet for sea shipping
Product :
Hydraulic motor
Displacement :
750 ml/r
Shaft :
31.75mm shaft
Rotation :
CW
Description

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Quick review:

Model number: BMER-2-750-VD-FD1-B
Displacement: 750 ml/r
Shaft, 31.75mm spline shaft
Rotation, CW
Features, replace Parker TG0750

Speed, torque, flow, pressure, weight informations:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90

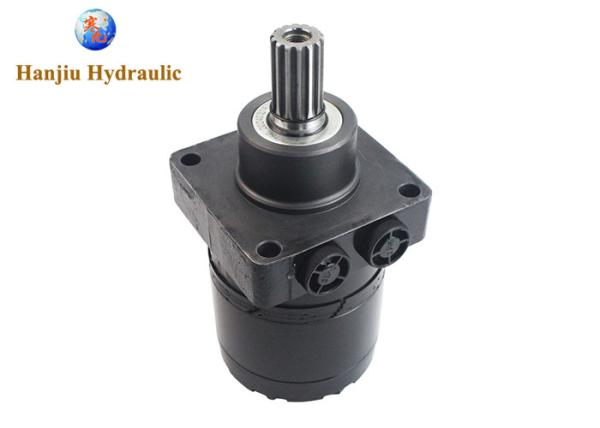

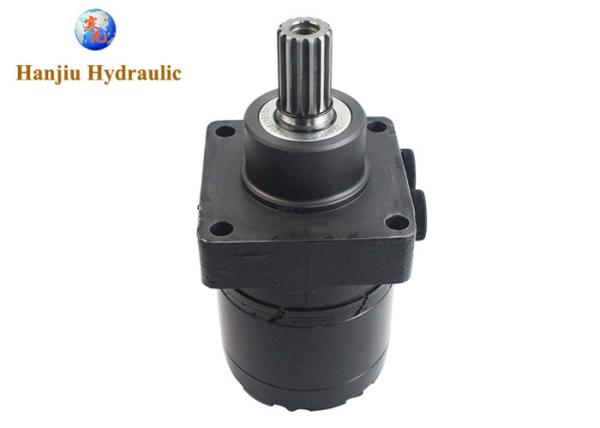

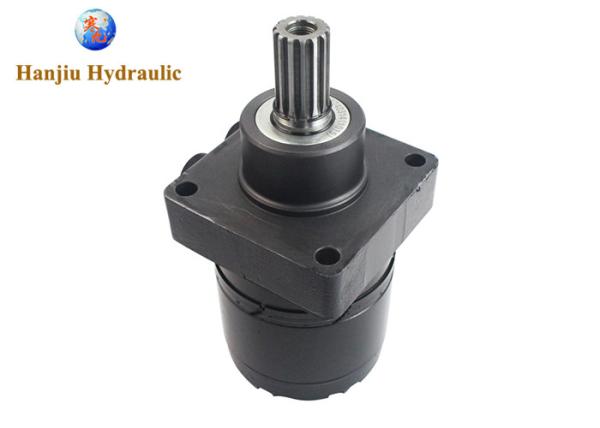

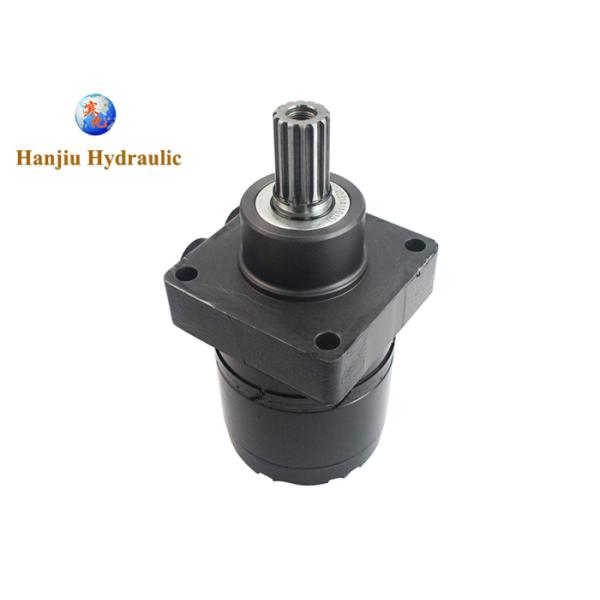

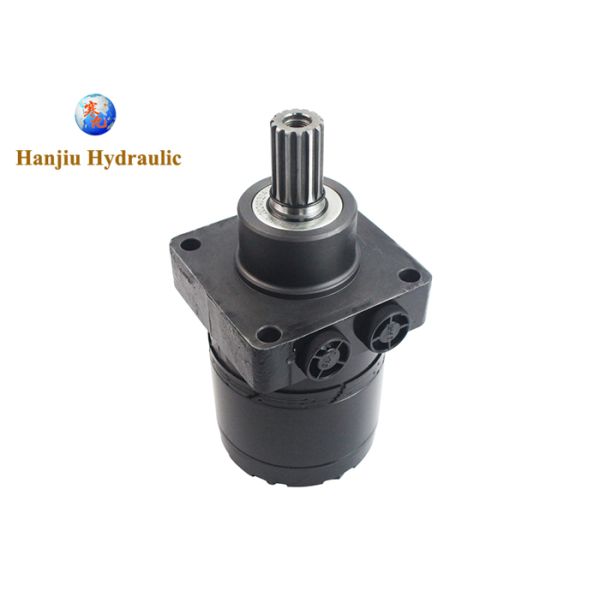

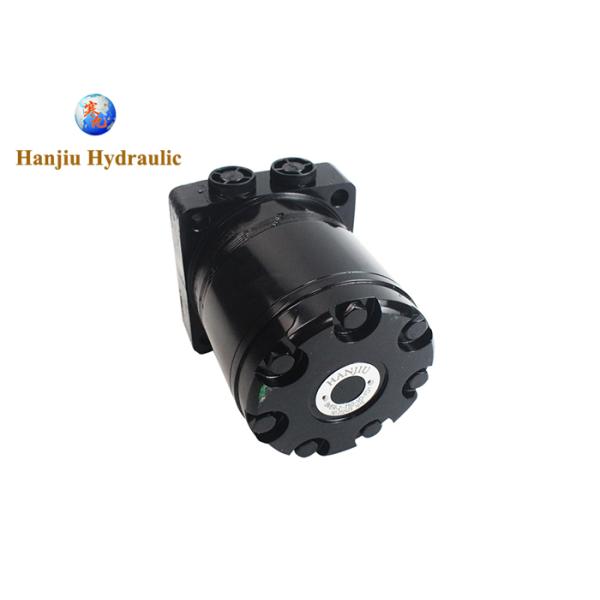

Photo:

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Measurement:

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

More Parker replacement motor we have:

  • TB
  • TC
  • TE
  • TF
  • TG
  • TJ
  • TK

Parker Medium Duty Hydraulic Torqmotor TG0750 replacement BMER-2-750

About HANJIU Technology:

Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.

HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.

We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
We specialize in Saauer Danfooss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor
