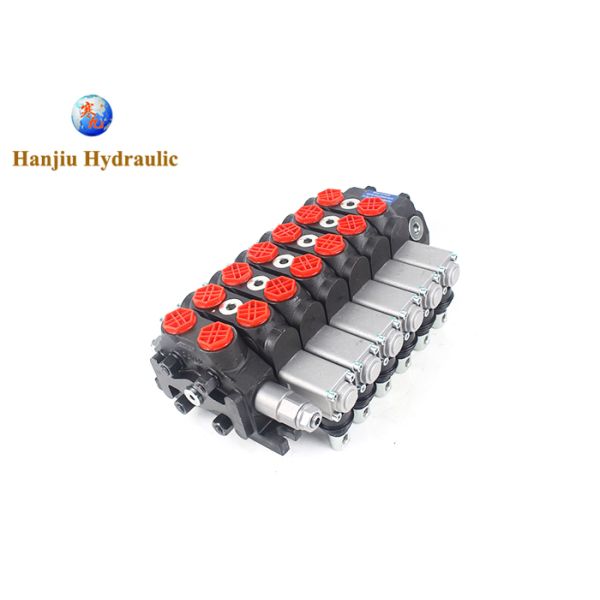

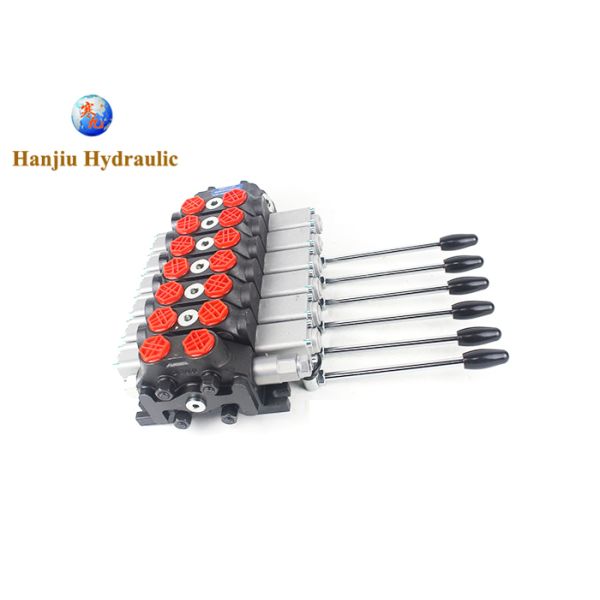

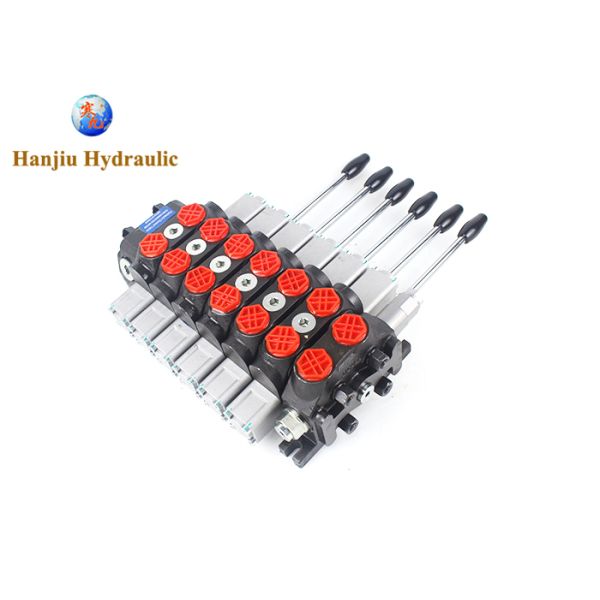

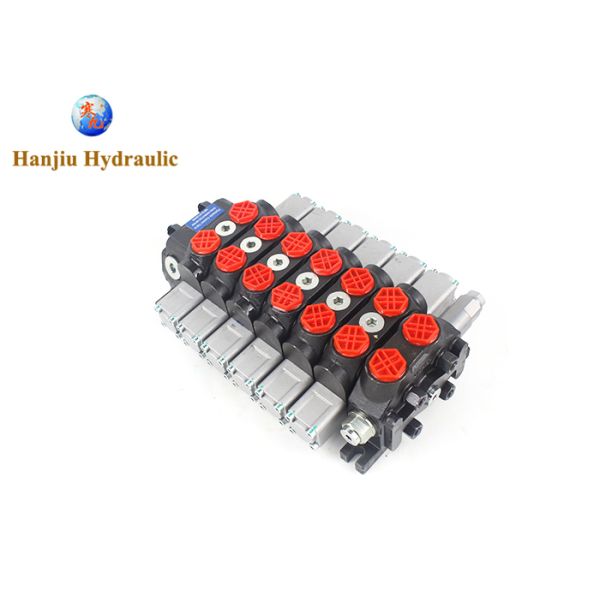

DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°
Specifications
Brand Name :
HANJIU
Model Number :
DCV60
Certification :
ISO9001::2015
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
DCV60
Warranty :
12-18 months
Spool :
1, 2, 3, 4, 5, 6,7,8,9 ...
Flow :
40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool function :
manual/cable/pneumatic
Max pressure :
350bar
Description


DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°

Type code DCV60-6-250-G08-ST1C2D1

flow rate:60liters/15.8gpm

Spool type: 6 levers

controling method:handle at 180°

other details as below:

Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 350 bar (5100 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)


FEATURES

Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section
Available with parallel or series circuit.
Optional carry--over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro--hydraulic, and remote with flexible cables spool control kits.
Diameter 20 mm (0.79 in) interchangeable spools.


DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°

DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°

DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°

DCV Directional Control Valve Hydraulic 15.8GPM High pressure valve with handle at 180°






RELATED PRODUCTS:

We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.






As a rookie in the hydraulic market, HANJIU TECHNOLOGY has quickly won the market in just a few years and has become a popular supplier of hydraulic components at home and abroad. The hydraulic directional control valve produced by HANJIU TECHNOLOGY is widely favored by consumers. Once you have tried HANJIU TECHNOLOGY's hydraulic directional steering valve, you will be conquered by its excellent performance. Who wouldn't love high-quality products with high cost performance?
