Specifications
Brand Name :
HANJIU
Model Number :
4P80-4
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the seller to get a quote
Payment Terms :
L/C,T/T,Western Union,Western Union
Supply Ability :
300000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Carton, Box, Pallets
Item :
Hydraulic valves
Material :
cast iron
Apply to :
forklifts,Cranes,tractors
Spool :
6 spools
Max operation pressure :
250 bar
control type :
manual control
Description

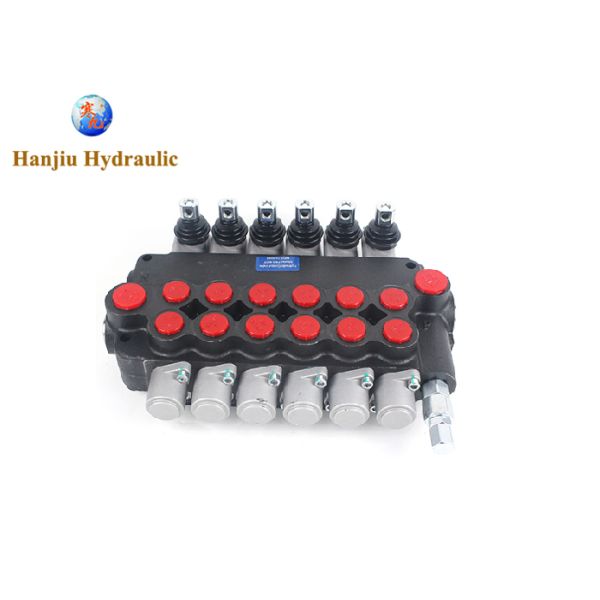

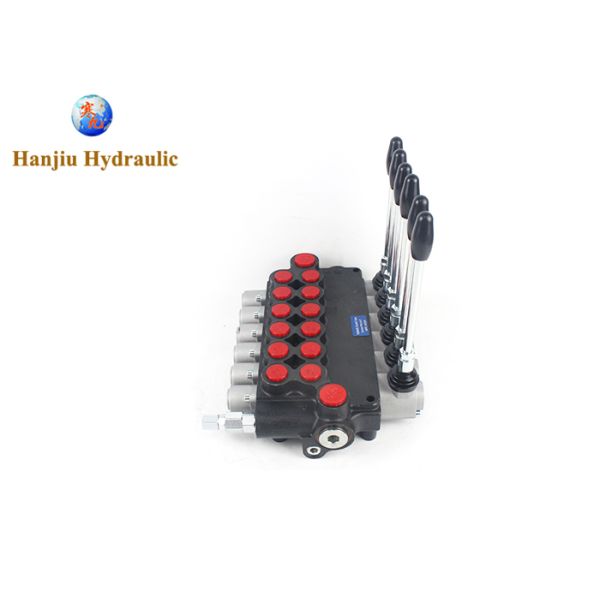

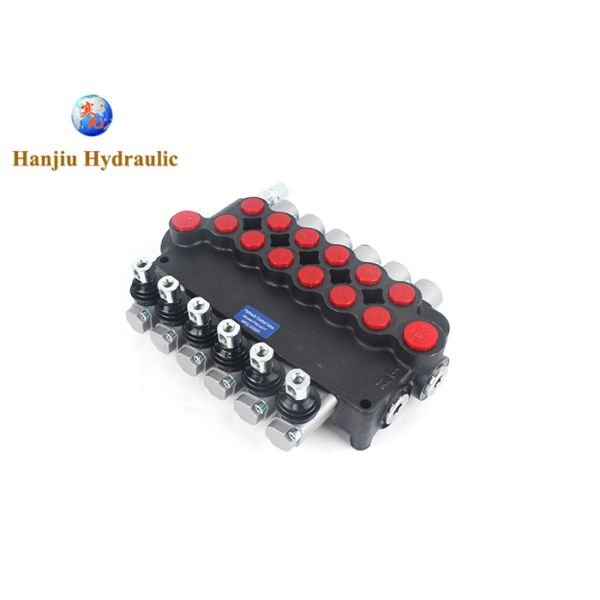

P80 Series Monoblock Control Valves,6 handles with spring control, BSPP ports


P80 series control valve with middle-high pressure monoblock construction is developed based on Europe technology. Relief valve and check valve can be installed on the valve according to customer requirements. The relief valve can adjust the pressure, and the one-way valve prevents the oil from flowing back. The spool valve functions of the reversing valve are A, O, P, Y, etc., which can be combined arbitrarily. The reversing handle has two installation forms, which is convenient for operation in different directions. The valve adopts parallel or series oil circuits and is designed with a pressure output port. Connect with other hydraulic components to provide power source. The specially designed sealing method makes the sealing performance of the valve excellent. The valve is widely used in hydraulic systems of construction machinery such as forklifts, sanitation vehicles, and small loaders.


flow rate 80 liters
number of spools 6 manual control
inlet section valve side inlet, with relief valve
relief valve set pressure 250bar
inlet port size G3/8,G1/2, G3/4
spool type 3 positons, double acting
handle side arrangement standard handle
spool cap side arrangement 3position, spring return
working section arrangement standard type
work port size G3/8,G1/2,G3/4
outlet section type top outlet,side
outlet port size G3/8,G1/2,G3/4




P80 Series Monoblock Control Valves，6 handles with spring control, BSPP ports

P80 Series Monoblock Control Valves，6 handles with spring control, BSPP ports

HANJIU technology supply Monoblock & Sectional directional control valve: P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / HSV6/HSV9 series / RD500 series… According to customer needs, different control methods can be used, including Manual Control, Electro-hydraulic Control, Pneumatic Control, SolenoidControl, Cable Control (with remote), Microswitch Control, Pilot control…
