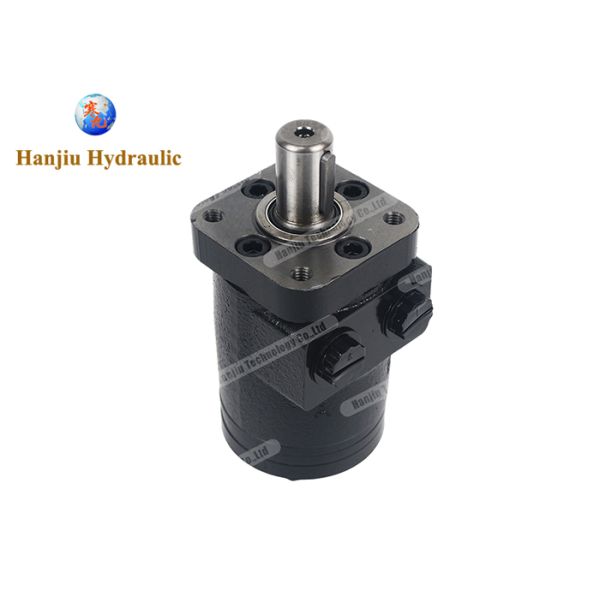

Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu) Hydraulic Motor with 4 bolt squre mounting and Key shaft，Continuous torque output, stable operation, and rapid response.
Specifications
Brand Name :
HANJIU
Model Number :
BMPH-50-H4-R-S
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the exporter to ask
Payment Terms :
T/T
Supply Ability :
200000 pieces per month
Delivery Time :
0 - 35 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Motor
OEM # :
BMPH-50-H4-R-S
Manufacturer :
Hanjiu
Brand :
Hanjiu
Description

BMPH-50-H4-K-P 3.15Cu" Hydraulic Motor


Brand new BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: Danfoss DH, White RS, Parker/Ross MG/TB.


SPECIFICATIONS
Disp. 3.15 cu. in. / rev.
Motor Type Gerotor
Pressure:
2031 PSI cont.
2538 PSI int.
Torque:
885 in-lbs. cont.
1133 in-lbs. int.
Speed:
1150 RPM cont.
1450 RPM int.
Flow:
15.8 GPM cont.
19.8 GPM int.
Rotation Reversible
Mount 4 bolt 3.25" bolt circle

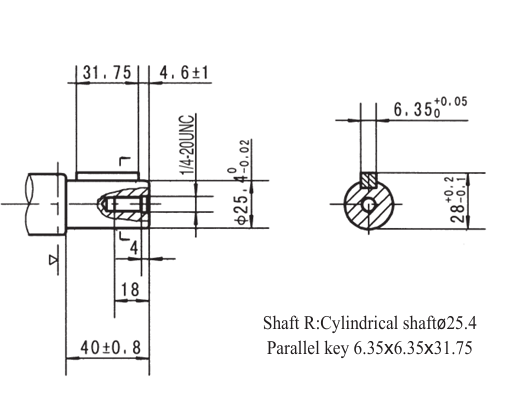

Shaft 1" dia. x 1.57" w/1/4" Woodruff key, tapped 1/4-20
Ports 1/2" NPT
Case Drain SAE 4
Size 5-9/16" x 3-1/4" x 3-1/4"


Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu



Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu



Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu


Hanjiu BMPH-50-H4-R-S 50cc ( 3.15Cu



In today's rapidly evolving global manufacturing landscape, European and American companies have clear and high-standard demands for hydraulic drive solutions that offer high cost-effectiveness, high reliability, and rapid delivery. Hanjiu's hydraulic motors are positioned around the core principles of "compliance with mainstream European and American standards, superior durability, and highly competitive total cost of ownership." Focusing on technological comparison, lifecycle cost, rapid delivery, and a comprehensive after-sales service system, they provide stable, efficient, and easy-to-maintain drive solutions for European and American manufacturing industries.


Choosing Hanjiu means choosing higher productivity, lower risk, and more predictable long-term benefits.
