11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
Specifications
Brand Name :
HANJIU
Model Number :
101S-5T-500-17-E
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
Road Roller Spare Parts
Relieve Valve :
15Mpa
Shock Valve :
21Mpa
Function :
Load sensing
Displacement :
800 ml/r
Max input speed :
75rpm
Description

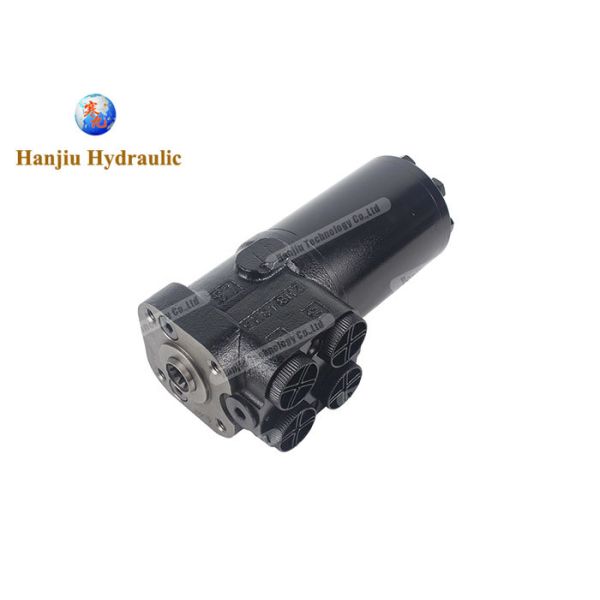

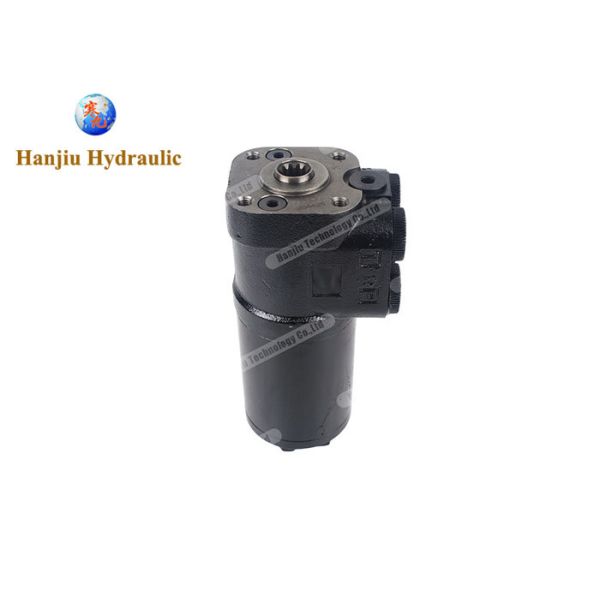

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol

type number:Hanjiu 101s,101S-5T-800-15-E

displacement:800cc

function:load sensing type

relief valve pressure settings:15 mpa

shock valve pressure settings:21mpa

crossing code:OSPC800 LS

OEM part:11144087

Application: loaders, backhoe loaders



Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101S type steering unit with relief valve and shock valve, 101S series can 100% replace OSPC

Specification:

Parameters Series
101S-5(T)(TE)(L)(E)-***
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400 500
Max.input speed(rpm) 100 75
Max.input pressure(Mpa) 17.5
Max.cont.back pressure 2.5
Relief Valve Pressure Settings(Mpa) 06,07,08,10,12,14,15,16.5,17.5
Shock Valves Pressure Settings(Mpa) 12,13,14,16,18,20,21,22,23.5
Weight(kg) 5.75 5.81 5.89 5.93 6.1 6.3 6.5 6.73 6.91 7.1 7.5 8.3
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176 183






11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol


11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol
