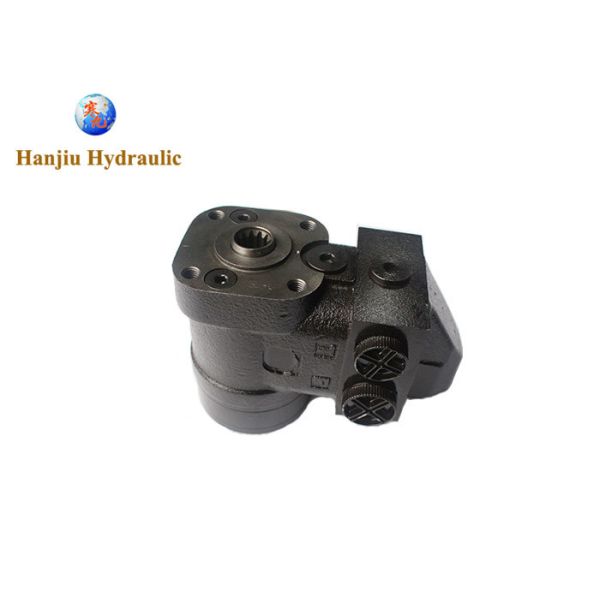

Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80
Specifications
Brand Name :
HANJIU
Model Number :
101S-5-200-15-HC
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
orbitrols
Model. No. :
ospc80ls+olsa80
Relieve Valve :
15Mpa
Shock Valve :
21Mpa
Function :
load sensing with priority valve
Displacement :
80ml/r
Rated Flow :
20 L/min
Max input pressure :
15 MPa
Description


Compact loaders Hydrostatic steering units hydraulic Orbitrol C038510 OSPC80LS+OLSA80

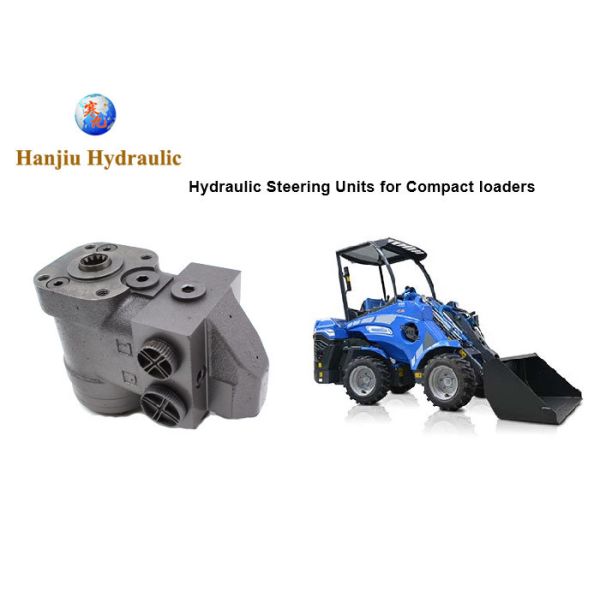

Hanjiu technology produce new 101s steering units with load sensors and priority valves for Multi-one compact loaders

model type


1-10, 1-10, 1-10 6.3 +, 1-10 6.3 S, 1-10 6.3 SK, 1-10 7.3 +, 1-10 7.3 S, 1-10 8.4 +, 1-10 8.4 S, 1-11 5.3 K, 1-11 6.3 + K, 1-11 8.5 S, 840, GT 950, GT950DT, GT960KDI, S520, S 520 EASY, S 525 EASY, S 620 DDT, S620YDT, SD 8.4, SL 835, SL835DT, SL840DT, SL840DTP



Specifications:


Parameters Series: 101s similar to OSPC
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176


PV80 type priority valve is matched with the load sensing steering unit. When the hydraulic oil flow to teh priority valve,and the load or revolution changed.






Our company

  • Hanjiu technology is manufacturer of hydraulic steering units
  • We supply hydraulic parts for compact loaders that increases our customers productivity.
  • We are specialists in our field and prefer to advise, not sell.
  • We aim to improve the customer experience in hydrostatics, and meet their requests and cut their costs down
  • You will always speak to an expert, never a salesperson
