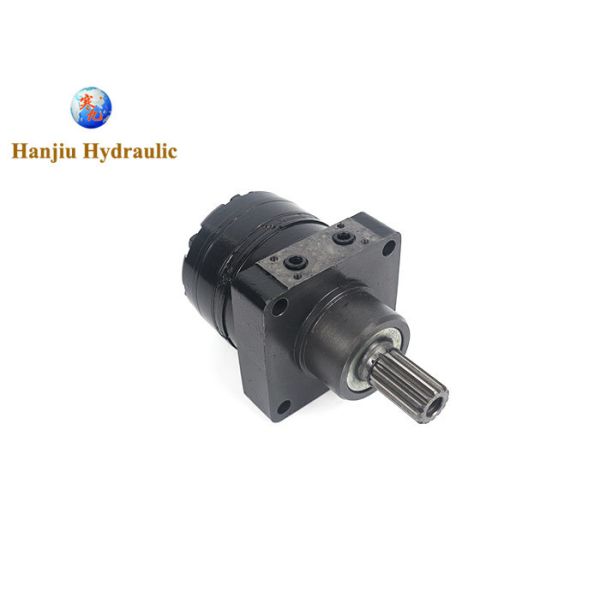

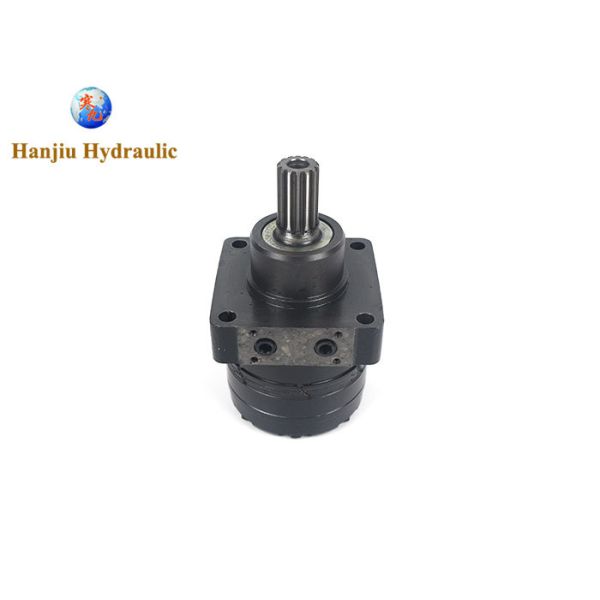

Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-250-WH-FD1-R-FY
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Price :
160 usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Low Speed High torque Hydraulic Motor
Model No. :
BMER-2-250
Size :
250ml/r
Flange :
4 holes wheel flange
Shaft :
spline shaft
Rotation :
CCW
Port :
manifold ports
Material :
Cast iron
Description
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size
used on excavator grab attachment

Product details
Product Low Speed High Torque Hydraulic Motor
Model No. BMER-2-250-WH-FD1-R-FY
Size 250ml/r
Flange wheel flange
Shaft spline shaft
Rotation CCW
Port
Manifold mount 4×5/8-18
Material Cast iron

Technical Specifications
Type BMER 125 BMER 160 BMER 200 BMER 230 BMER 250 BMER 300 BMER 350 BMER 375 BMER 475 BMER 540 BMER 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
Max. speed (rpm) int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 eca450 530 625 700 810 905 990 1085 980 1050
Max. torque (N•m) int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
Max. torque (N•m) peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
Max. output (kW) int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
Max. pressure drop (MPa) int. 24 24 24 24 24 24 24 24 19 17.5 12
Max. pressure drop (MPa) peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
Max. flow (L/min) int. 60 75 85 85 90 95 95 90 90 90 90
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachmentMedium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment
Typical Applications
Medium-duty wheel drives, grapple heads, feed rollers, and broom drives.

Hanjiu technology is specialized in producing the hydraulic orbit motors, we have the most completely range of models, from BMM --The small hydraulic motors, to BMP/BMPH,BMR/BMRS/BMH--the middle hydraulic motors, and heavy motors, like BMSY/BMT/BMV, we also developed new models, like charlynn 10000 series motors, TMT series motors

At Hanjiu, we uphold the highest international quality standards through skilled, certified professionals and streamlined facilities. Our high quality inspection process ensures precision and yield.
