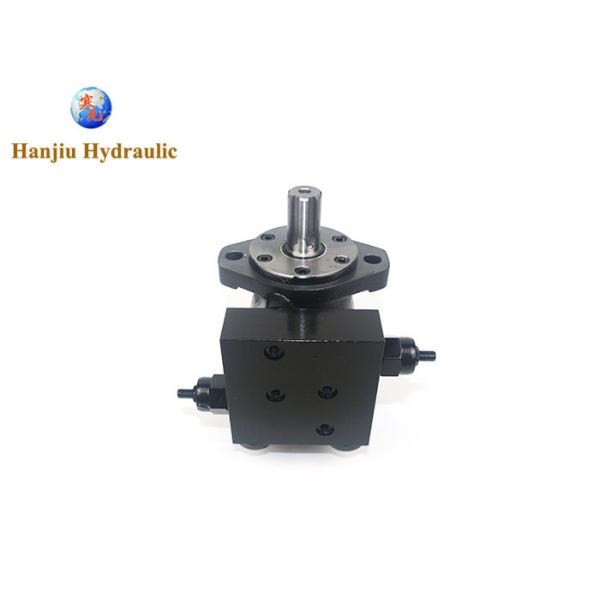

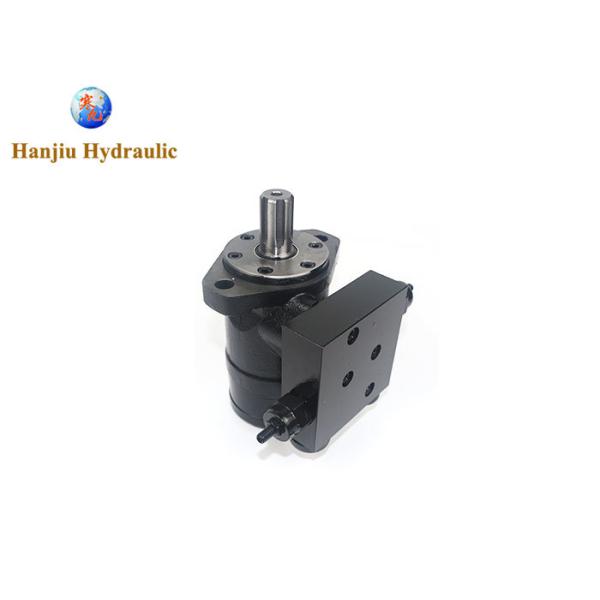

BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports
Specifications
Brand Name :
HANJIU
Model Number :
BMP-200-2-E-D+FYPD-10-D
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Supply Ability :
90000 Pieces One Year
Packaging Details :
Carton Box
Product Name :
hydraulic motor
Material :
cast iron
Features :
High pressure oil seal
Displacement :
200cc
Application :
auger , skid steer, trench
Description

BMP-200-2-E-D-B hydraulic Motor with relief valve, SAE 6B Shaft , BSPP ports



► Product details


model type:BMP-200-2-E-D&FYPD-10-D


displacement:200cc


flange:2 bolts flange, φ106.4mm,pilot φ82.5x8


shaft: φ25.4mm SAE 6B


port threads:G1/2

FYPD Relief valve

► Specification



BMP / OMP Motors


Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8
