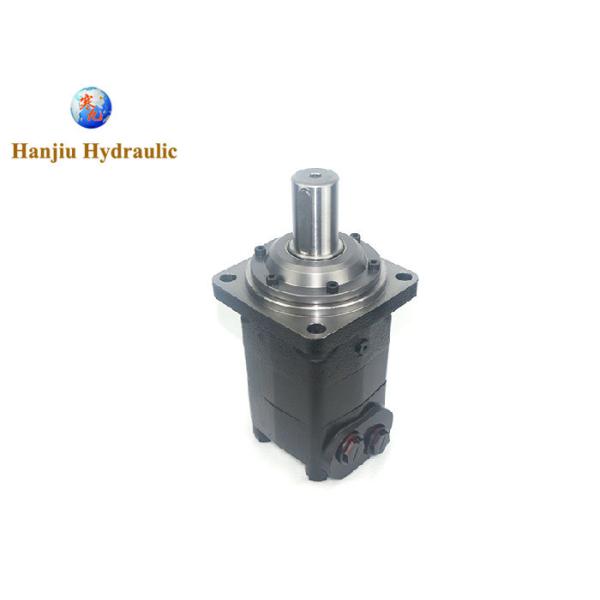

HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT
Specifications
Brand Name :
HANJIU CHINA
Model Number :
BMV-315-4-T-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
Contact the selle to get the best offer
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
100000 sets per year
Delivery Time :
0 - 35 work days
Packaging Details :
Carton, Box, Pallets
Product :
Hydraulic Orbital Motor
Model No. :
BMV-800-4-A-S1-B
Displacement :
800 cc
Brand :
Hanjiu
material :
cast iron
warranty :
1 year
Description


HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT


This series is the BMV series hydraulic motor
Model: BMV-800-4-A-S1-B
Displacement: 800ml/r
Flange: 4-Ø18 Square-flange Ø160, pilot Ø160X11
Shaft: Shaft Ø50 , parallel key 14×9×70

Rotation :Standard



Main Specifications:

Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6


* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.




HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT

HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT

HYDRAULIC ORBIT MOTOR BMV800 MV800 OMV800,STRAIGHT KEY SHAFT

BMV-315-4-A-D,BMV-400-4-A-D,BMV-500-4-A-D,BMV-630-4-A-D,BMV-800-4-A-D,BMV-1000-4-A-D,

BMV-315-4-C-S,BMV-400-4-C-S,BMV-500-4-C-S,BMV-630-4-C-S,BMV-800-4-C-S,BMV-1000-4-C-S,

BMV-315-4-B-S,BMV-400-4-B-S,BMV-500-4-B-S,BMV-630-4-B-S,BMV-800-4-B-S,BMV-1000-4-B-S,

BMV-315-4-BD-D,BMV-400-4-BD-D,BMV-500-4-BD-D,BMV-630-4-BD-D,BMV-800-4-BD-D,

BMV-1000-4-BD-D,BMV-315-4-T-D,BMV-400-4-T-D,BMV-500-4-T-D,BMV-630-4-T-D,

BMV-800-4-T-D,BMV-1000-4-T-D,BMV-315-W-A-D,BMV-400-W-A-D,BMV-500-W-A-D,BMV-630-W-A-D,

BMV-800-W-A-D,BMV-1000-W-A-D,BMV-315-W-T-D,BMV-400-W-T-D,BMV-500-W-T-D,BMV-630-W-T-D,

BMV-800-W-T-D,BMV-1000-W-T-D,BMV-315-W-T1-S,BMV-400-W-T1-S,BMV-500-W-T1-S,

BMV-630-W-T1-S,BMV-800-W-T1-S,BMV-1000-W-T1-S.


Matching type

model range:MV-315-C,MV-400-C,MV-500-C,MV-630-C,MV-800-C,MLHV-315-C4,MLHV-400-C4,

MLHV-500-C4,MLHV-630-C4,MLHV-800-C4,MLHV-315-G4,MLHV-400-G4,MLHV-500-G4,MLHV-630-G4,

MLHV-800-G4,MV-315-SH,MV-400-SH,MV-500-SH,MV-630-SH,MV-800-SH,MV-315-K,MV-400-K,MV-500-K,

MV-630-K,MV-800-K,MV-W315-C,MV-W400-C,MV-W500-C,MV-W630-C,MV-W800-C,MV-W315-K,

MV-W400-K,MV-W500-K,MV-W630-K,MV-W800-K,MLHV-W315-T4,MLHV-W400-T4,MLHV-W500-T4,

MLHV-W630-T4,MLHV-W800-T4.
