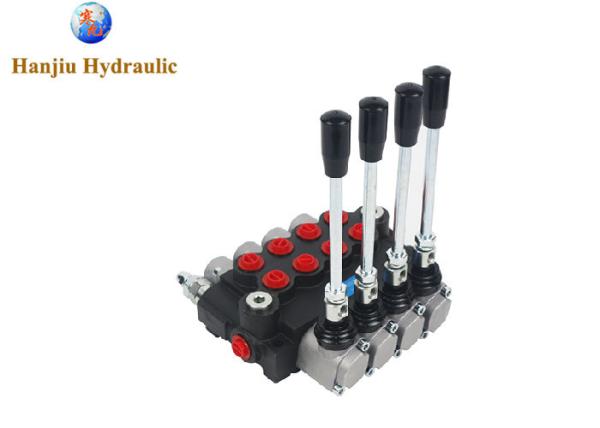

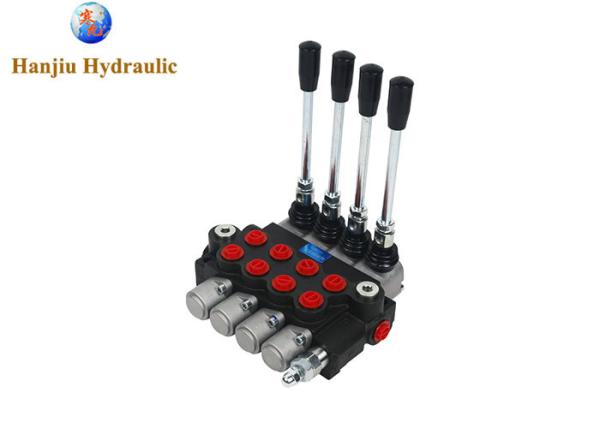

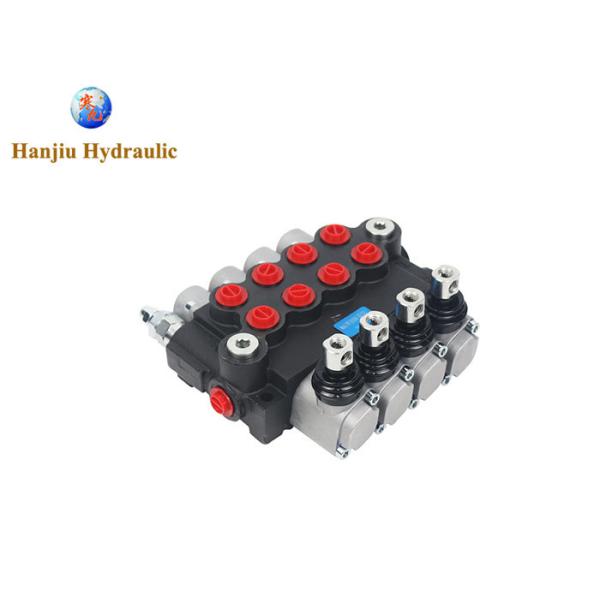

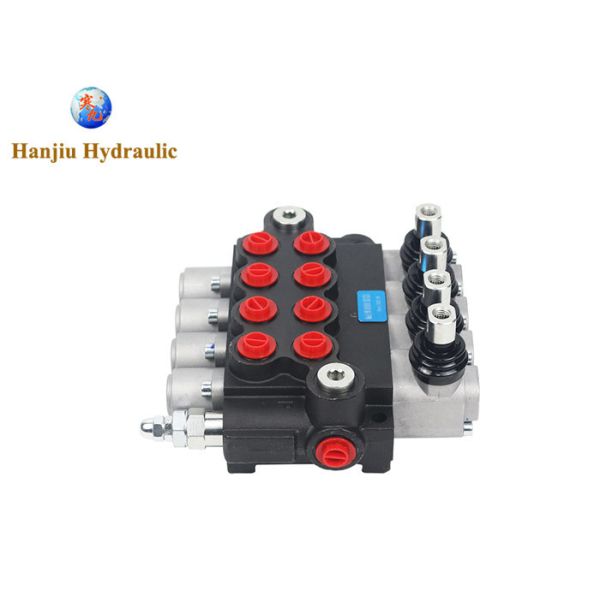

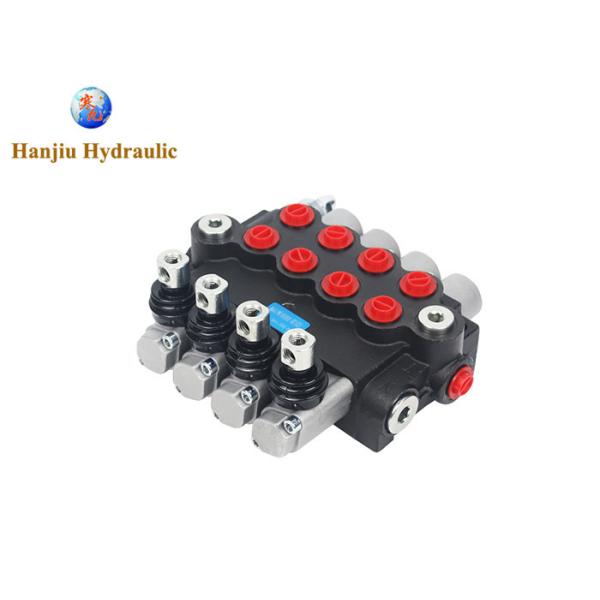

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports
Specifications
Brand Name :
HANJIU
Model Number :
2P40
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the seller to get a quote
Payment Terms :
L/C,T/T,Western Union,Western Union
Supply Ability :
300000 sets per year
Delivery Time :
25 - 35 work days
Packaging Details :
Carton, Box, Pallets
Item :
monoblock valve
Material :
cast iron
Apply to :
tractor vehicles, agricultural machines
Spool :
4spools
Max operation pressure :
250 bar
control type :
spring return, detent return
Description


4P40-1A1A1A1A1GKZ1 hydraulic direction valve 40liters, monoblock valves G3/8 ports size


type code


P40-4 manual spring type


Code: P40 liters
Sections: 4
Relief Valve Setting Pressure:180(bar)
Intlet Port Option: G3/8
Control Method Option: manual control +floating control
Spool Function: 3 Positions, double acting;
Spool Returning Way:spring return
Working Port Option: G3/8
Outlet Port Option: G3/8


flow rate 40 liters
number of spools 4 spools
inlet section valve side inlet, with relief valve
relief valve set pressure 200bar
inlet port size G3/8
spool type 3 Positions, Double Acting
handle side arrangement standard type
spool cap side arrangement 3position, spring return,manual control,detent control,
working section arrangement standard type
work port size G3/8
outlet section type top outlet,side
outlet port size G3/8


4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports

4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports


4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports


4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports


Different types


4P40-1A1A1A1A1GKZ1 Hydraulic Direction Valve 40L 4 Spools G3/8 Ports



P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / RD500 series...
The valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.
if you are not sure about which valves you need,
pls feel free to contact us !
