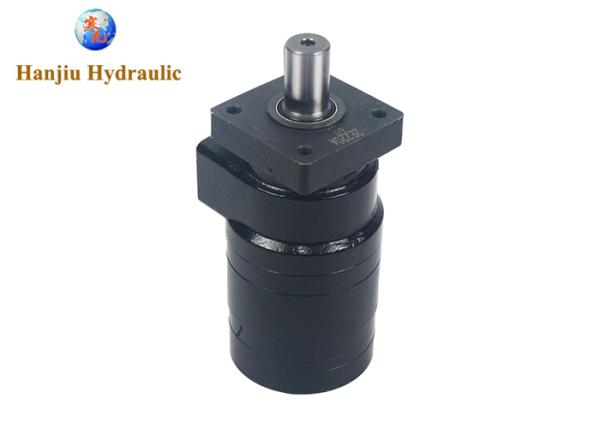

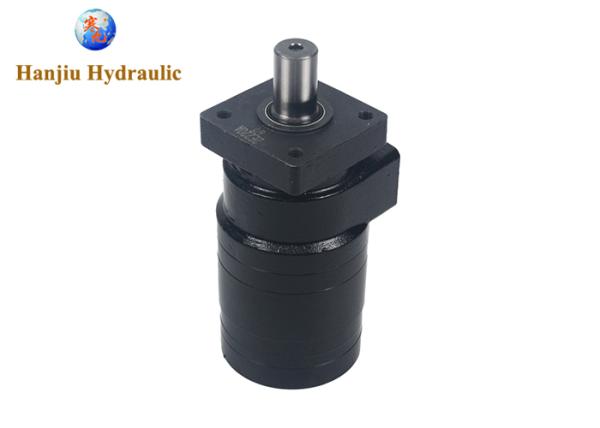

BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
Specifications
Brand Name :
HANJIU
Model Number :
BME2-200-H4S-K
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the selle to get the best offer
Payment Terms :
T/T,Western Union,Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Hydraulic Motor
Size :
200 ml/r
Flange :
4-bolt
Rotation :
CW
Description


Welcome to Hanjiu Hydraulic's shop
We specialize in orbital hydraulic motors. Customers use our hydraulic motors as high-quality direct replacements for Danofss, Eaton Char-lynn, White, M+S, Parker
We are glad that more and more customers choose Hanjiu hydraulic motors
We will continue to serve more customers with higher quality, lower prices, and faster delivery



We offer a variety of low speed, high torque gerotor motors to replace Parker TB, TC, TE, TF, TG, TK



BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft




Quicke review:

Model: BME2-200-H4S-K
Displacement: 200 ml/r

Shaft: 25.4mm straight
Flange: 4-bolt mounting

Rotation : Clockwise


Here is it's technical details:


Type BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2
65 80 100 125 160 200 230 250 295 315 375
Geometric displacement (cm3 /rev.) 66.8 81.3 101.6 127 157.2 193.6 226 257 287.8 314.5 370
Max. speed (rpm) cont. 667 543 439 350 283 229 247 216 196 178 152
int. 842 689 553 441 355 289 328 287 254 235 199
Max. torque (N•m) cont. 126 157 191 245 307 382 378 381 393 448 439
int. 176 215 268 335 422 520 528 543 547 587 613
Max. output (kW) cont. 8.3 8.8 7.9 8.9 8.9 9 9.9 9.3 8.7 8 7.6
int. 13.9 14.4 13.5 14.1 15.6 15.7 17.9 16.5 15.6 14.3 14
Max. pressure drop (MPa) cont. 14 14 14 14 14 14 12 11 10 10 9
int. 19 19 19 19 19 19 165 15.5 14.5 13.5 12.5
peak 20 20 20 20 20 20 18 18 17 16 16
Max. flow (L/min) cont. 45 45 45 45 45 45 57 57 57 57 57
int. 57 57 57 57 57 57 75 75 75 75 75



BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft




BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft





Features:


1, 100% fit Parker TG

2, same mounting as Parker TG

3, same performance as Parker TG

4, service life long

5, price more affordable



BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft




If you are a bulk importer, please contact us for cooperation terms and preferential quotes.




About the manufacturer Hanjiu:
HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, mixing machine manufacturer in Italy, sweeping machine manufacturer in UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.


BME2-200-H4S-K LSHT Gerotor Motor Fit Parker TE TF, 200 ml/r, 4 bolt mounting, 25.4mm cylindrical shaft
