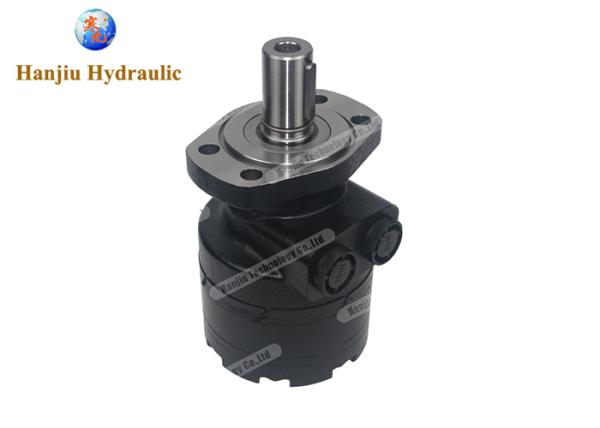

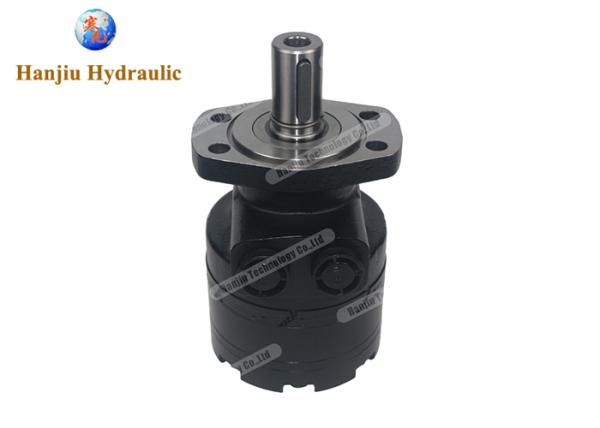

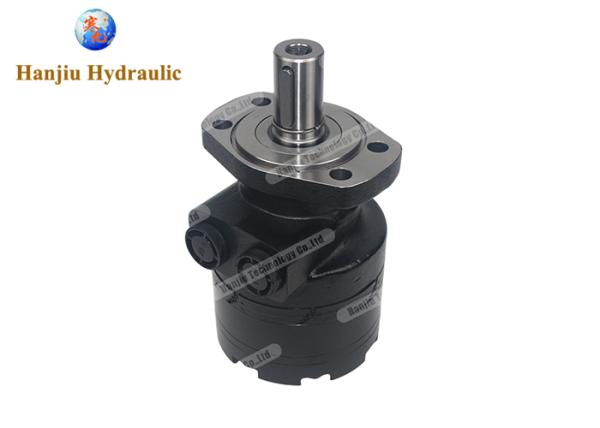

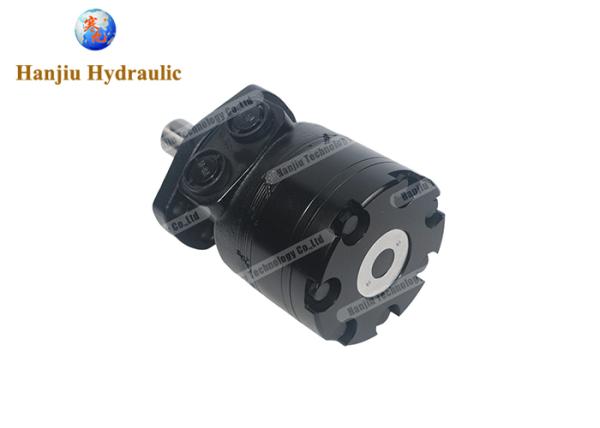

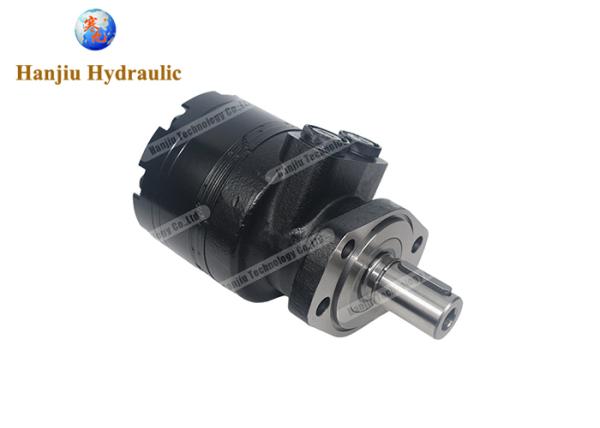

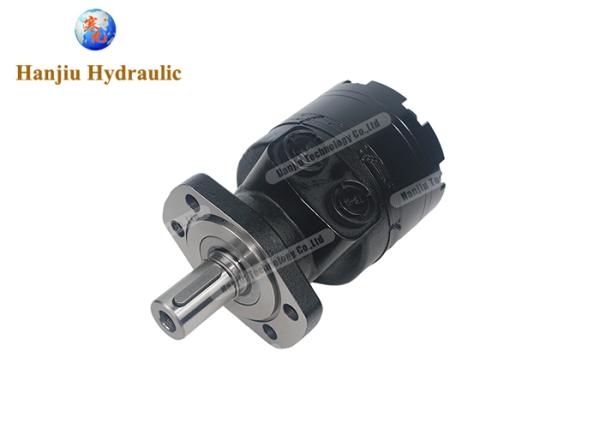

Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications
Specifications
Brand Name :
HANJIU
Model Number :
BMER-350-MS-G2
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the selle to get the best offer
Payment Terms :
T/T,Western Union,Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Hydraulic Motor
Size :
350 ml/r
Flange :
4-bolt
Rotation :
CW
Description


Welcome to Hanjiu Hydraulic's shop
We specialize in orbital hydraulic motors. Customers use our hydraulic motors as high-quality direct replacements for Danofss, Eaton Char-lynn, White, M+S, Parker
We are glad that more and more customers choose Hanjiu hydraulic motors
We will continue to serve more customers with higher quality, lower prices, and faster delivery



We offer a variety of low speed, high torque gerotor motors to replace Parker TB, TC, TE, TF, TG, TK



Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications




Quicke review:

Model: BMER-350-MS-G2
Displacement: 350 ml/r
Flange: 4-bolt mounting

Rotation : Clockwise



Specification:


Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)
118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90



Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications


Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications


Features:


1, 100% fit Parker TG

2, same mounting as Parker TG

3, same performance as Parker TG

4, service life long

5, price more affordable



Orbital Motors BMER-350-MS-G2, Low Speed High Torque Fit Parker LSHT Applications




If you are a bulk importer, please contact us for cooperation terms and preferential quotes.




About the manufacturer Hanjiu:
HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, mixing machine manufacturer in Italy, sweeping machine manufacturer in UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.
