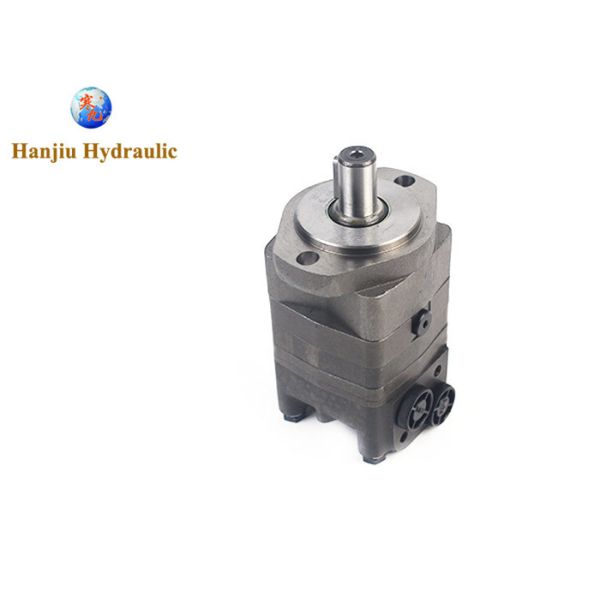

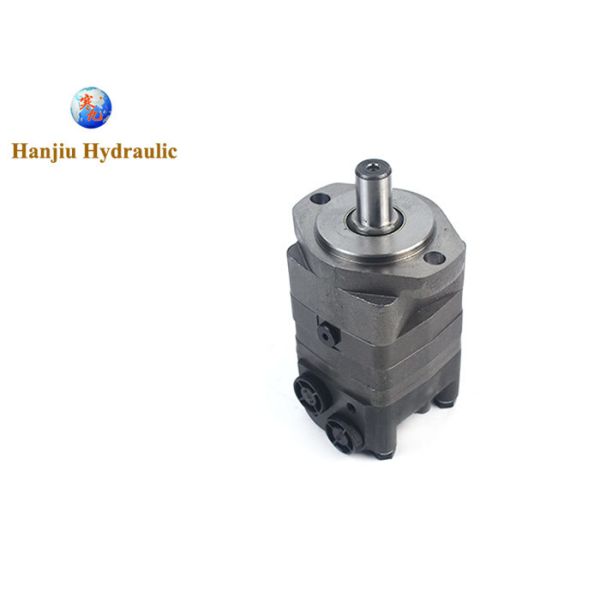

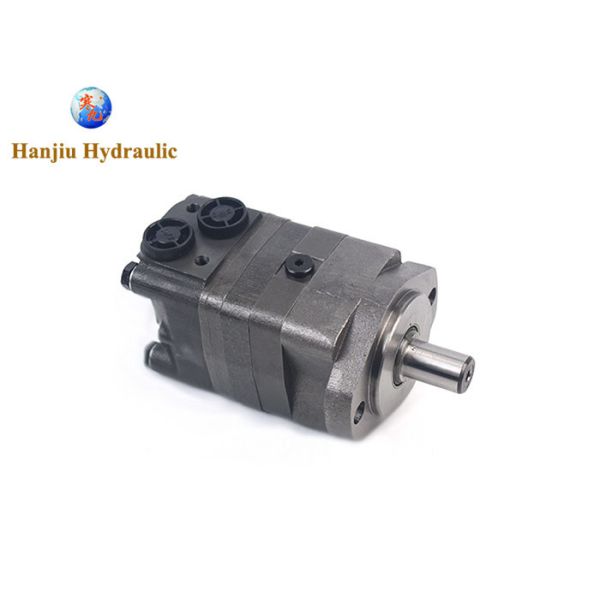

BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount
Specifications
Brand Name :
HANJIU CHINA
Model Number :
BMSY-125-E2-B-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
Contact the seller to ask
Payment Terms :
L/C,D/A,T/T,Western Union,Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Motor
Type :
Low speed high torque
Flange :
2 bolts flange
Shaft :
key shaft
Materia :
cast iron
Warranty :
1 year
Description


Hydraulic Orbital Motor MS125,BMSY125, 2 bolts flange, Straight shaft for precision-macerator


Product details:

type code BMSY-125-E2-B-D


Displacement:125cc


Flange:

2-Ø13.5 Rhomb-flange Ø106.4,
pilot Ø82.5×6.3


Shaft:

Shaft Ø 32 , parllel key 10×8×45

Ports:

G1/2 Manifold Mount
G1/4



BMSY Main Specifications:


Type BMSY
80		 BMSY
100		 BMSY
125		 BMSY
160		 BMSY
200		 BMSY
250		 BMSY
315		 BMSY
375
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute


BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount




BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount

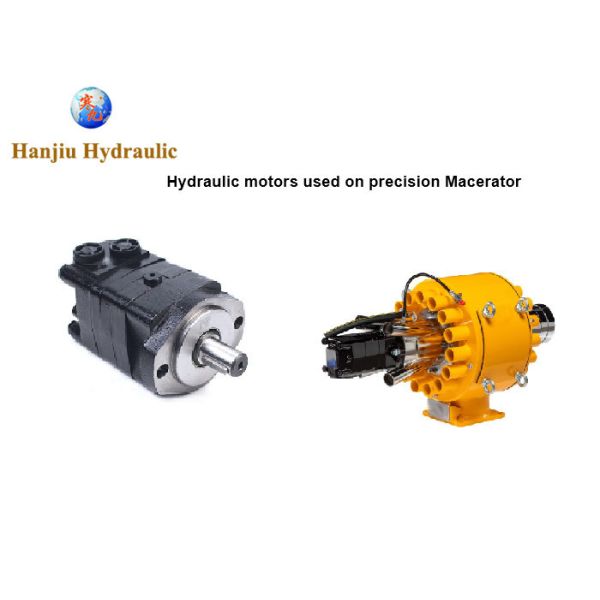

Hanjiu technology produce the BMSY Series, widely used on the ‘standard’ vertical slurry distributor and the horizontal slurry distributor. bring the Macerator new performance, long life.

we gurantee we offer the good quality goods for Macerators manufacturer,best service, and long warranty. once you meet problems during usage,we will offer the technical support


Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
