BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
Specifications
Brand Name :
HANJIU
Model Number :
BMV630
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 Sets
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100,000 Sets per year
Packaging Details :
Carton Packing, and finally with pallet or wooden box
Categories :
Hydraulic Heavy Motor
Name :
BMT200
Max.output :
cont.34.9kw/int.40kw
max torque :
cont.590N.m/int.710N.m
Flange :
square flange
Shaft :
key shaft
Description

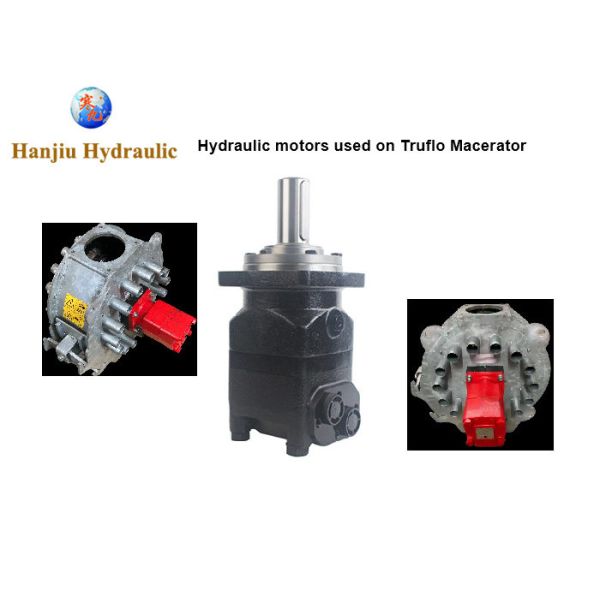

HYDRAULIC MOTOR BMT200 OMT200 WHITE ORBIT MOTORS FOR SLURRY MACERATOR
Product Specifications
Attribute Value
Categories Hydraulic Orbit Motor
Name BMT200
Max. Output cont.34.9kw/int.40kw
Max. Torque cont.590N.m/int.710N.m
Flange Square Flange
Shaft key Shaft
Technical Parameters
  • Geometrical displacement: 200cm³/r
  • Max. Speed: 625/750 min⁻¹ [rpm]
  • Max. Torque: 838 Nm
  • Max. Output: 40 kW
  • Max. Oil flow: 150 l/min
  • Max. Inlet pressure: 300 bar
BMT Series Specifications Comparison


Type BMT
160		 BMT
200		 BMT
230		 BMT
250		 BMT
315		 BMT
400		 BMT
500		 BMT
630		 BMT
800

displacement

(cm3/rev. )

 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max.pressure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25


BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator



BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator
BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator

BMT200 Orbit Hydraulic Motor with 200cm³/r Displacement and 625/750 RPM for Slurry Macerator


As an experienced small-to-medium-sized supplier, Hanjiu Company has fully leveraged its flexibility. We understand that different customers have varying equipment requirements and budget plans, so we have broken away from rigid pricing models. We can provide flexible pricing solutions based on the scale of customer orders, cooperation models, and personalized needs. Whether it's small-batch customized orders or long-term stable procurement partnerships, customers can feel our commitment to “affordable pricing.” This flexible pricing does not come at the expense of quality. Instead, it is achieved through optimizing production processes and improving management efficiency, ensuring profit margins while passing on benefits to customers, truly fulfilling the promise of “high cost-effectiveness.”
