Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
Specifications
Model Number :
BMPW-200
Supply Ability :
90000 Pieces One Year
Features :
low speed high torque
Price :
Negotiable
Displacement :
200CC
Packaging Details :
Carton Box
Shaft :
TAPERED SHAFT
MOQ :
10 Pieces
Product Name :
hydraulic geroler motor
Place of Origin :
China
Material :
cast iron
Certification :
CE
Brand Name :
HANJIU
Description

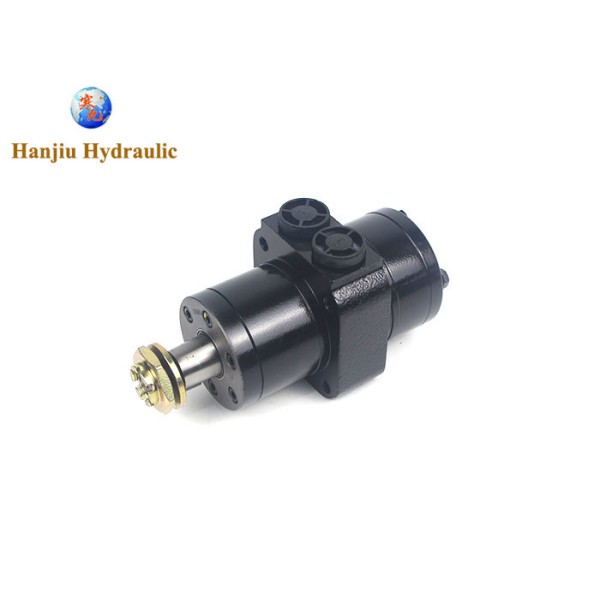

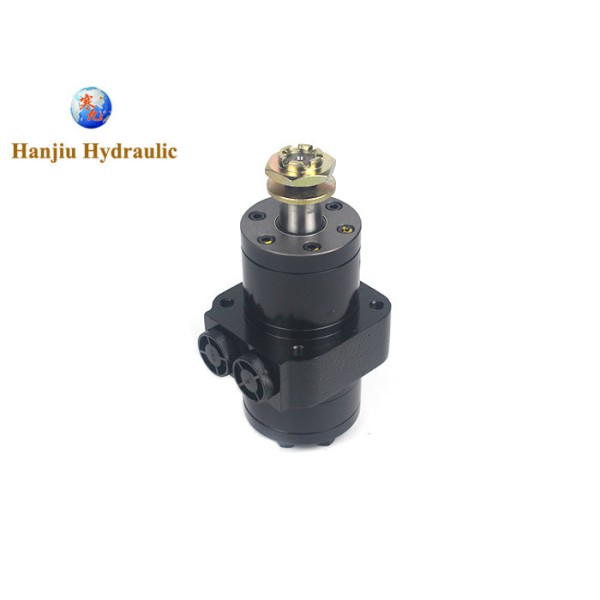

Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306



► Product details


  • hydraulic motor MPWN200KD=BMPW200
  • displacement: 200 ccm/REV
  • ports (side) : G 1/2’’
  • shaft: conical 1:10 with key B5 x 5 x 14
  • with radial needle bearing
  • wheel flange
  • spool valve type
  • internal check valve
  • with high pressure seal kit
  • usage without drain line possible
  • OEM quality, made in CHINA
  • optimised for small spaces



► Specification



Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8


Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306


Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306





OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE


151-5301
151-5302
151-5303
151-5304
151-5305
151-5306
151-5307
151-5308
151-5309
Hydraulic Motor for JCB and Brock Sweeper MPWN200KD,151-5306
