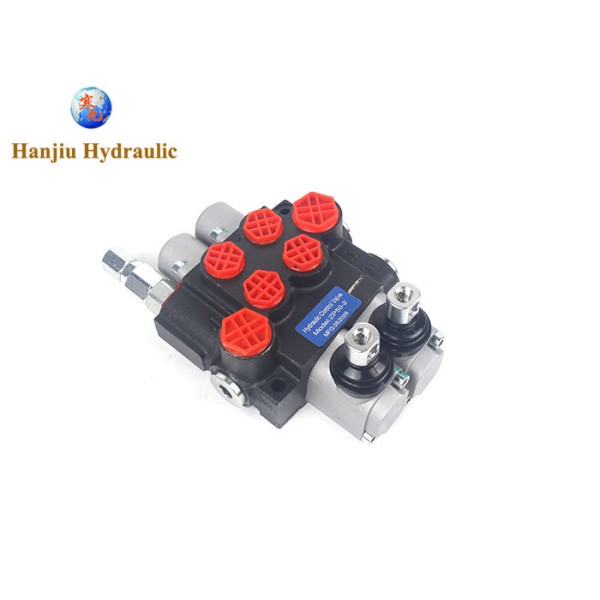

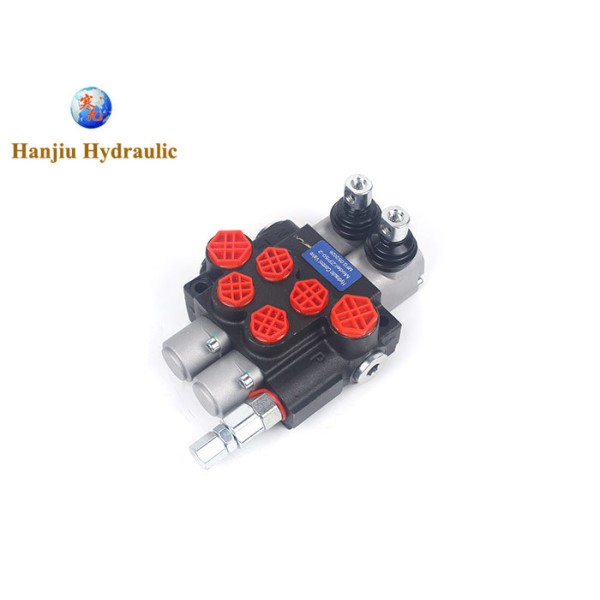

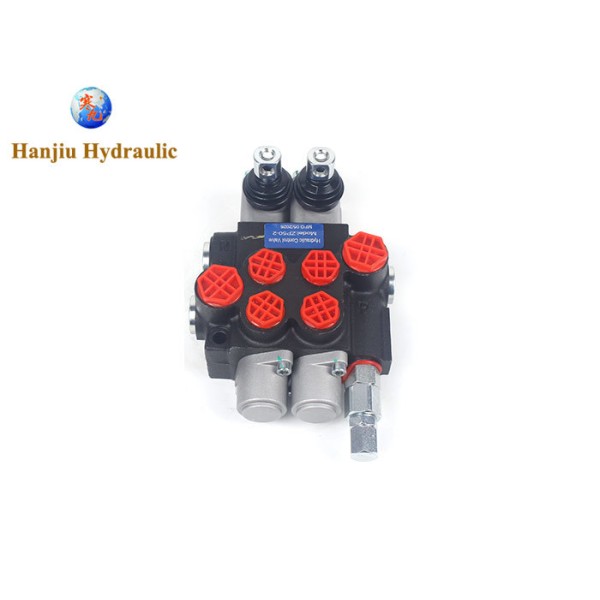

Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms
Specifications
Model Number :
2P50DC
MOQ :
100 Sets
Delivery Time :
25 - 35 work days
control type :
ZP50-2
Brand Name :
HANJIU
Place of Origin :
CHINA
Payment Terms :
L/C,T/T,Western Union,Western Union
Material :
cast iron
Max operation pressure :
250 bar
Price :
Contact the seller to get a quote
Apply to :
tractors,loaders
Supply Ability :
300000 sets per year
Item :
monoblock valve
Spool :
2banks
Certification :
CE
Packaging Details :
Carton, Box, Pallets
Description


Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms


type details:

type code:ZP50-2 matching MB25-2


flow rate:50liters

spool type:2spools

pressure:200bar

inlet port:G1/2

working port:G3/8

control: 3position double acting,A/B open at central

outlet port:G3/8



Control type:
manual control


Circuit type: parallel


Application :


Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors,Sanitation Vehicles



flow rate 50 liters
number of spools 2 banks
inlet section valve side inlet, with relief valve
relief valve set pressure 200bar
inlet port size G1/2
spool type 3 positon, double acting
handle side arrangement standard type
spool cap side arrangement 3position, spring return,manual control,detent control,
working section arrangement standard type
work port size G3/8
outlet section type top outlet,side
outlet port size G1/2


Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms


Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms


Hydraulic Mobile Lever Valves MB25 - 45 L/min for aerial platforms

To ensure the fluid can be perfectly balanced and allow machinery to operate effectively, suitable valves are required. Hydraulic pressure-regulating valves, for instance, are tasked with controlling maximum pressure to prevent it from becoming excessive. Other valves either shut off or facilitate the flow of specific fluid streams.
Their aforementioned compactness, combined with simple construction, makes monoblock directional control valves the ideal choice for minimizing space requirements, weight, and costs. They are widely used in lifting equipment and construction machinery.
Monoblock valves are often complemented by auxiliary pressure control or flow regulation valves. Another key component is the selector; this allows readings to be taken at various pressure points using a single pressure gauge.
