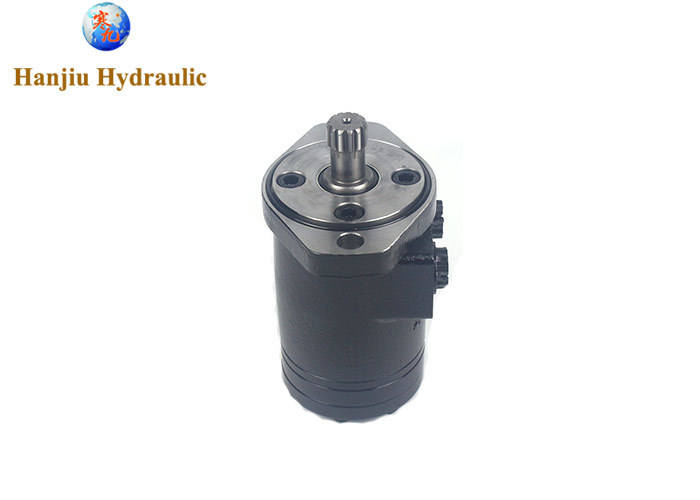

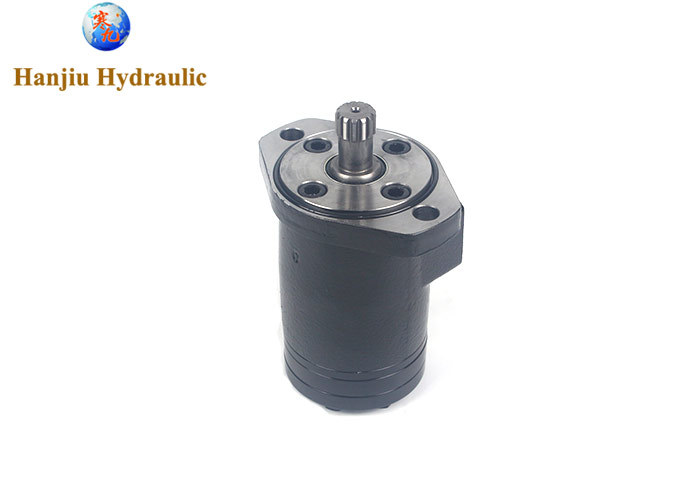

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports
Specifications
Material :
cast iron
Model Number :
BMPH-100-H2-I-S
Features :
low speed high torque
Place of Origin :
China
Supply Ability :
90000 Pieces One Year
Displacement :
100CC
MOQ :
10 Pieces
Shaft :
13T spline shaft
Price :
Negotiable
Certification :
CE
Packaging Details :
Carton Box
Product Name :
hydraulic geroler motor
Brand Name :
HANJIU
Description

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports



► Product details


model type:BMPH-100-H2-I-S


displacement:100cc


flange:2-Ø13.5 Rhomb-flange , pilot Ø82.5×2.8


shaft: Shaft Ø22.22, splined tooth 13-DP16/32


port threads:7/8-14 O-ring ,7/16-20UNF



► Specification



Type BMPH
36		 BMPH
50		 BMPH
80		 BMPH
100		 BMPH
125		 BMPH
160		 BMPH
200		 BMPH
250		 BMPH
315		 BMPH
400		 BMPH
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8



Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports


Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports

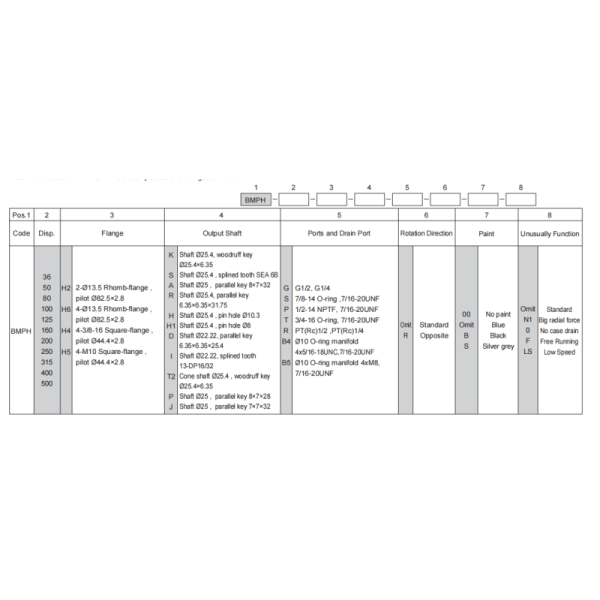

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

Hydraulic gerotor orbit motor BMPH-100-H2-I-S,2 holes flange, 13T spline shaft 7/8-14unf ports



Cost Savings and Lifecycle Analysis

Implementing HANJIU BMPH orbital motors and genuine spare parts delivers measurable economic benefits throughout the equipment lifecycle:

Acquisition cost reduction of 35% to 55% compared to original Eaton equipment, with no compromise in performance or service life

Complete seal kit replacement cost savings of 40% to 60%, with all kits including precision-matched seals, O-rings, and gaskets

Standard delivery lead times of 1 to 7 days globally, with 24-hour express dispatch for urgent requirements, minimizing equipment downtime

Extended motor service life achieved through consistent availability of genuine replacement parts, reducing total cost of ownership by 25% to 35% over the equipment lifecycle

Free technical consultation and troubleshooting support provided by qualified hydraulic engineers with average response time under 2 hours
