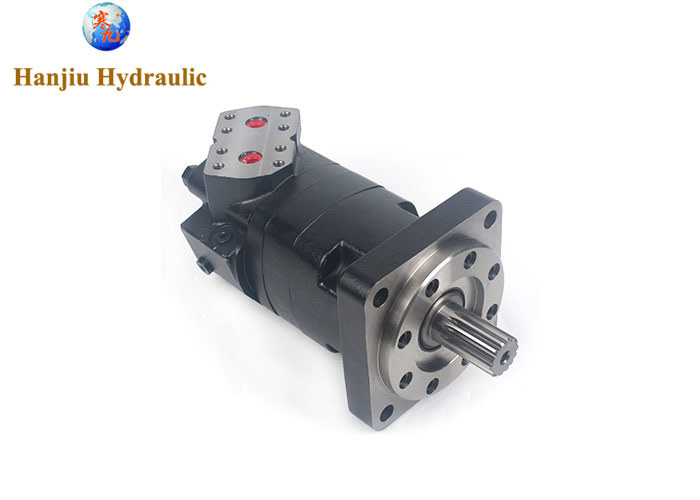

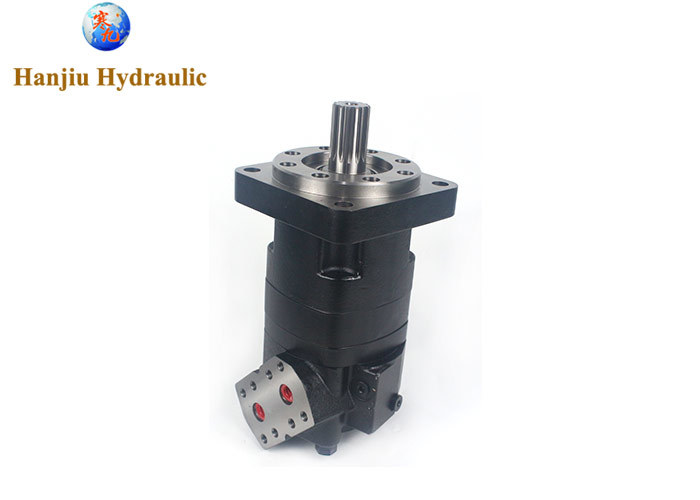

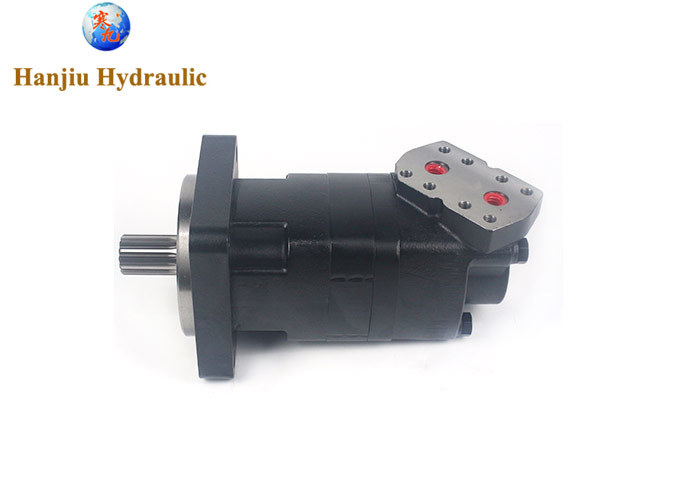

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor
Specifications
Model Number :
BMK4 motor
Payment Terms :
T/T,D/P,D/A,L/C
Max.speed(rpm) :
cont.300rpm/int.450pm
Oil temperature :
normal-35℃-80℃
Max.pressure drop :
cont.20Mpa/int.30Mpa
Place of Origin :
CHINA
Packaging Details :
2PCS IN ONE CARTON,800PCS IN 20'FCL
MOQ :
10pieces
Delivery Time :
25-30DAYS
Viscosity :
42-74mm2/s
Price :
Negotiable
Max.torque(N.m) :
cont.710N.m/int.1080N.m
Certification :
CE
Supply Ability :
300000PCS PER YEAR
displacement :
246cc
Brand Name :
HANJIU
Description

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor


HANJIU CODE BMK4-245cc

Displacement: 246.3 cm3/r [15.03 in3/r]


Mounting: standard, 4 bolt, 127.00 [5.000] pilot dia.14.27 [.562] dia. holes on 161.92 [6.375] dia. bolt circle. (sae c)


Shaft: 31.75 [1.250] dia. similar to sae flat root side fit, 14 tooth, 12/24 dp 30 deg. involute spline, 25.01 [.985] minimum full spline length


Ports: 19.05 [.750] 4 bolt split flange staggered ports standard pressure series


Flow: .4375-20 unf-2b sae o-ring port with check valve



Main specification


TYPE

BMK4
160

BMK4

200

BMK4

250

BMK4
315

BMK4
400

BMK4
500
Displacement(ml/r) 159.2 195.6 246.1 311.6 391.3 490.8
Max.speed(rpm)

cont.

 560 440 300 234 188 155
int. 670 535 450 351 282 232

Max.Pressure.Drop(Mpa)		 cont. 20

20

 20 20 20 20
int. 30 30 30 30 30 27.5
peak. 30 30 30 30 30 30
Max.Torque(N.m) cont. 450 565 710 920 1160 1445
int. 680 855 1080 1325 1625 1880
Max.Flow(cont.)(L/min) cont. 95 95 150 150 150 150
int. 115 115 205 225 225 225
Weight(kg) 26.3 26.5 26.8 27.3 28 28.8

109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor


109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor


109-1450-006 Char-Lynn Eaton hydraulic orbital motor series 4000,LSHT gerotor motor


4000 series orbital motor diagram

orbital motor curve chart

BMK4 orbital motor specs

109 Series motor diagram

orbital motors for sale

4k orbital motor curve

orbital motor specs

eaton motor specs
