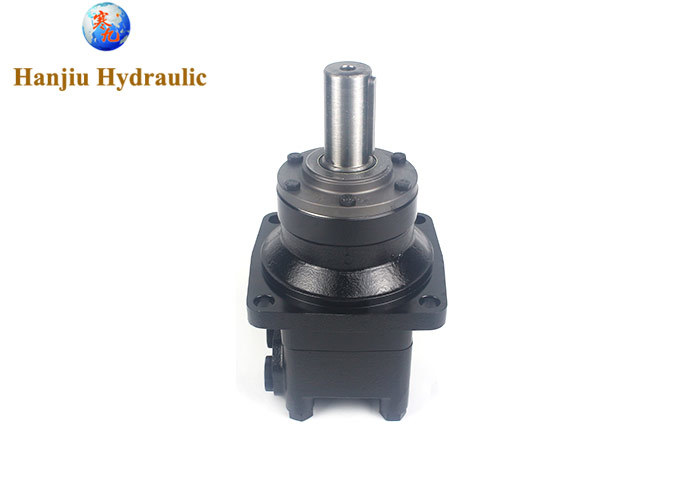

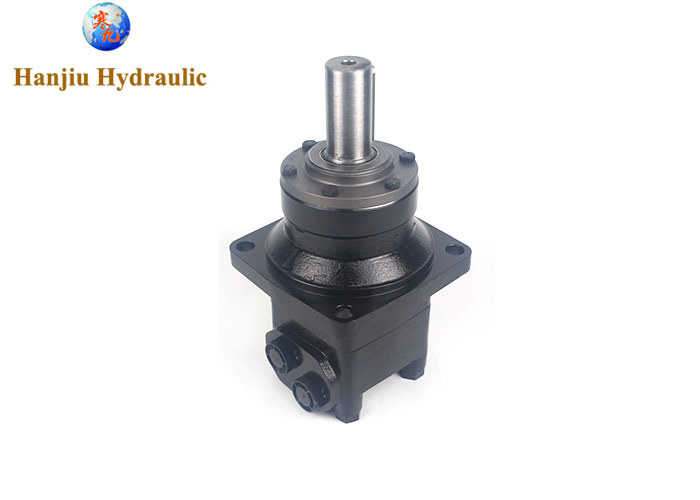

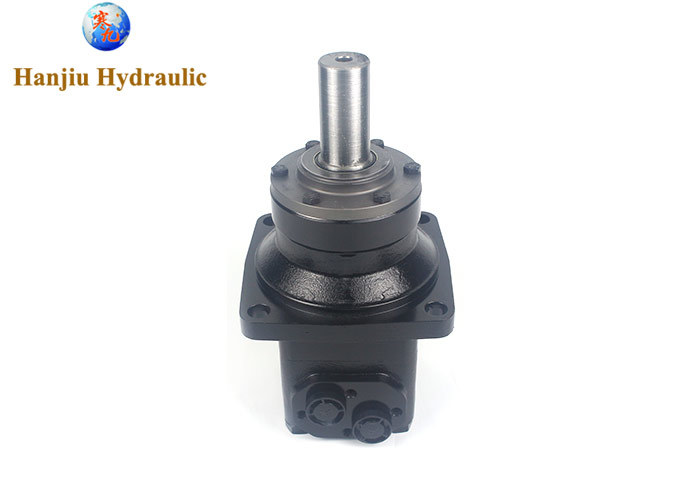

151B3029 OMTW 500 Danfoss hydraulic orbital motor 500 cm3 wheel type with 40 mm cylindrical shaft

the details as below

hanjiu code :BMT-500-W-M-D=151B3029

Specification:

Key Structural Components

The HANJIU OMT series orbital motor comprises several precision-engineered subassemblies that collectively determine performance, reliability, and service life:

• Gerotor/Geroler Gear Set:The heart of the motor, machined to tight tolerances to minimize internal leakage while maintaining efficient lubrication film formation between contacting surfaces.

• Disc Valve Distributor:Precision-ground flat disc with kidney-shaped ports that align with Gerotor chamber openings, ensuring optimal timing of fluid delivery and exhaust.

• Tapered Roller Bearings:Front and rear tapered roller bearings provide exceptional radial and axial load capacity, accommodating significant external shaft loads without premature wear.

• High-Pressure Shaft Seal:Dual-lip seal design with dust exclusion lip maintains system integrity under high return-line pressures, eliminating the need for a separate drain line in most installations.

• Check Valve Assembly:Integrated anti-cavitation check valves protect the motor from damage during deceleration and prevent shaft seal over-pressurization.

• Four-Bolt Mounting Flange:Standard square flange with pilot diameter and threaded mounting holes ensures compatibility with industry-standard attachment configurations.

Applications:

• Trenchers
• Skid Steer Attachments
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Forestry
• Snow Removal
• Salt and Sand Spreaders
• Pipe Spinners
