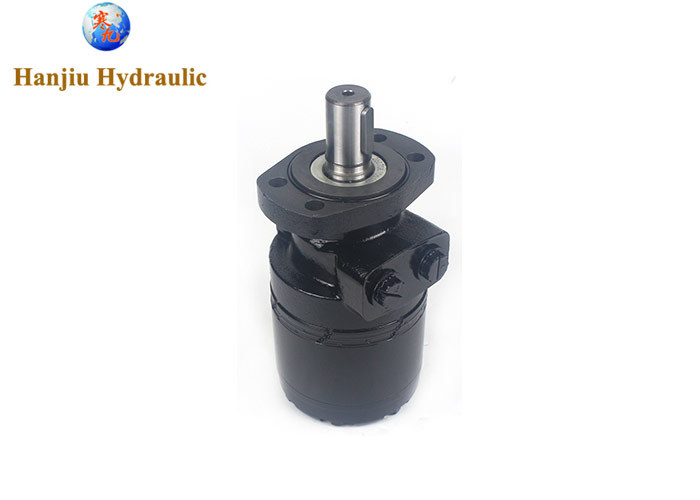

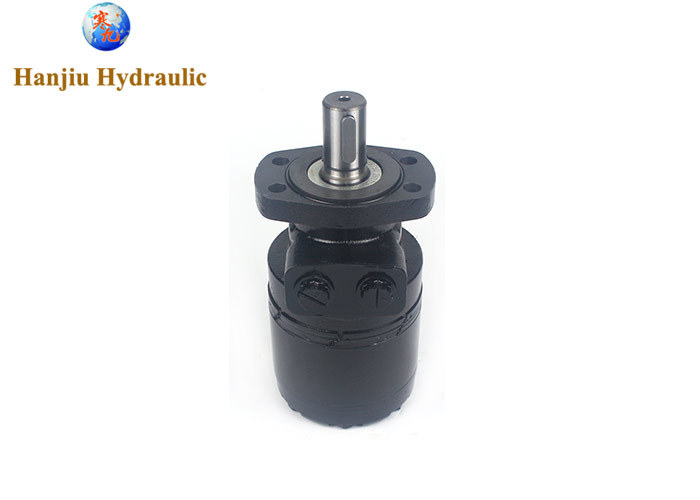

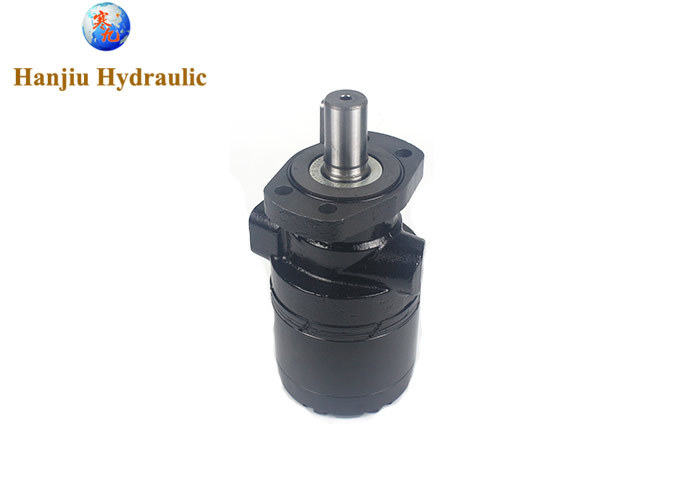

BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
Specifications
Model Number :
BMER-2-750-MS-B1
Port :
offsite ports
Payment Terms :
T/T,Western Union
Model No. :
BMER-2-750
Shaft :
32MM Key shaft
Flange :
Magneto Mount 4-Holes
Place of Origin :
China
Packaging Details :
box, pallet
MOQ :
10 Pieces
Delivery Time :
35 - 45 work days
Rotation :
CCW
Price :
160 usd/pc
Size :
750ml/r
Certification :
CE, ISO9001
Supply Ability :
10000 pieces per year
Product :
Low Speed High torque Hydraulic Motor
Brand Name :
HANJIU
Material :
Cast iron
Description
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor

BMER Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation.

Product details
Product Low Speed High Torque Hydraulic Motor
Model No. BMER-2-750-MS-B1
Displacement 750ml/r
Flange
Magneto Mount 4-Holes
Shaft
ShaftØ32, Parallel key 10×8×36
Rotation CCW
Port
G1/2

Technical Specifications
Type BMER 125 BMER 160 BMER 200 BMER 230 BMER 250 BMER 300 BMER 350 BMER 375 BMER 475 BMER 540 BMER 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
Max. speed (rpm) int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 eca450 530 625 700 810 905 990 1085 980 1050
Max. torque (N•m) int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
Max. torque (N•m) peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
Max. output (kW) int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
Max. pressure drop (MPa) int. 24 24 24 24 24 24 24 24 19 17.5 12
Max. pressure drop (MPa) peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
Max. flow (L/min) int. 60 75 85 85 90 95 95 90 90 90 90
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor
BMER-2-750-MS-B1 Hydraulic Orbital Motor with high pressure PARKER TG0750 Hydromotor

As a professional manufacturer specializing in the R&D of hydraulic motors, HanJIU boasts an independent R&D and design team along with a comprehensive production and testing system. The company is dedicated to refining the core performance of its hydraulic motors. Thanks to their stable low-speed high-torque output and exceptional smoothness, HanJIU’s products are widely sold in both domestic and international markets and have earned recognition from numerous industry clients. HanJIU not only provides standardized, high-quality motor products but also offers 24/7 online technical support, delivering one-stop services including precise product selection, installation and commissioning, and troubleshooting. If you require hydraulic power components suitable for various low-speed, heavy-duty, and high-precision applications, please visit the HanJIU website to explore complete product specifications and customized solutions, and equip your equipment with stable, efficient, and durable high-quality hydraulic motors.
