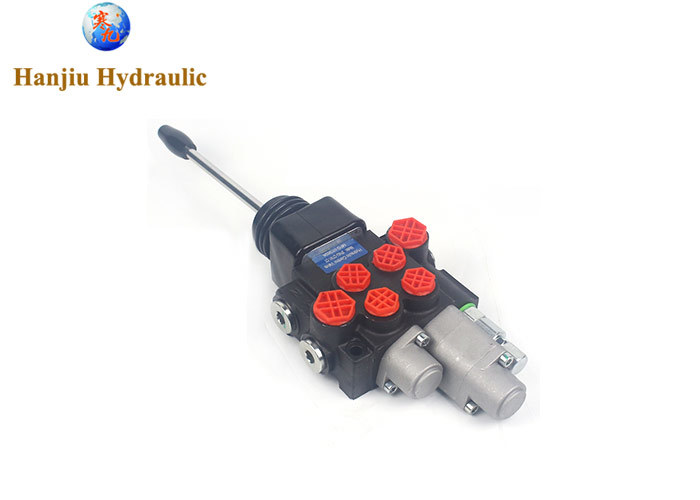

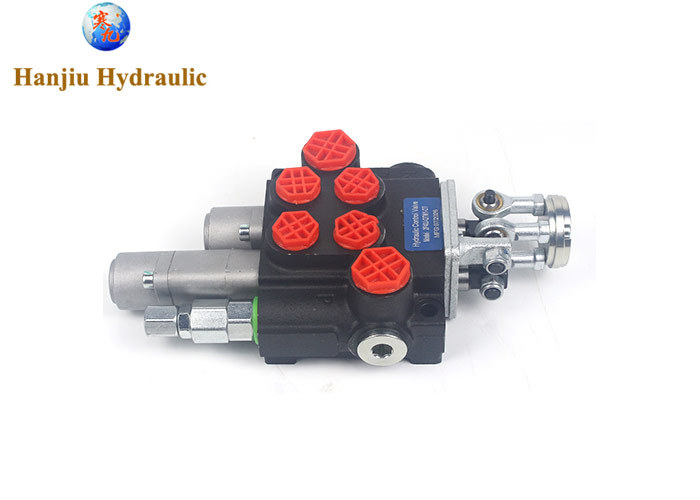

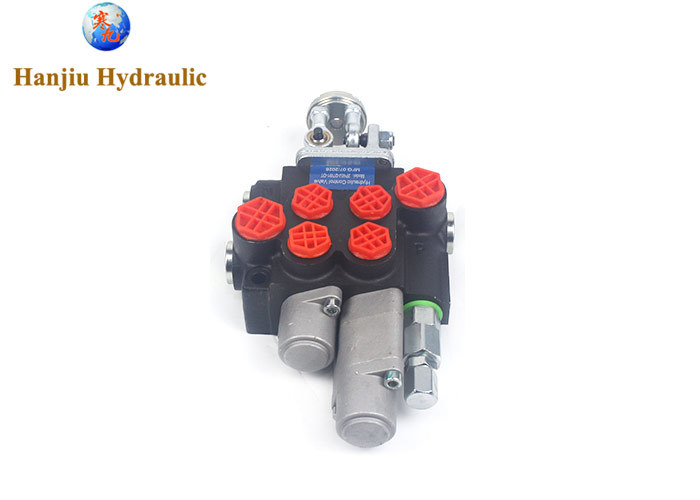

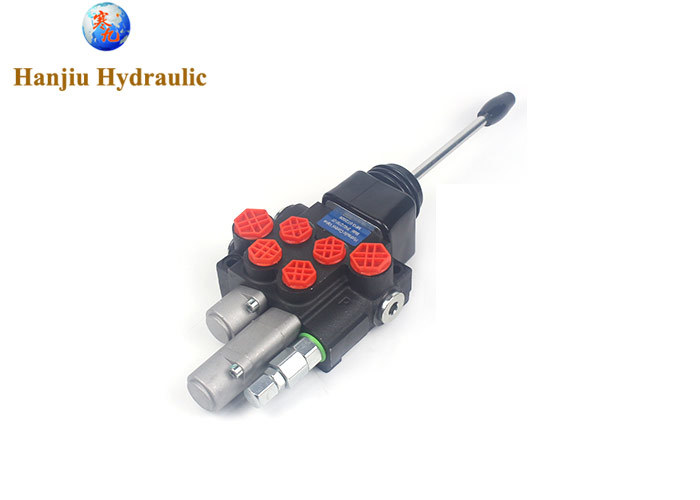

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function
Specifications
Model Number :
2P40JOT
Payment Terms :
L/C,T/T,Western Union,Western Union
Material :
cast iron
Item :
Hydraulic valves
Max operation pressure :
250 bar
Place of Origin :
CHINA
Packaging Details :
Carton, Box, Pallets
MOQ :
100 Sets
Delivery Time :
25 - 35 work days
Apply to :
forklifts, Cranes, loaders
Price :
Contact the seller to get a quote
control type :
manual control with electric-pneumatic
Certification :
CE
Supply Ability :
300000 sets per year
Spool :
2 spools
Brand Name :
HANJIU
Description


Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function


type code 2P40 with joystick valve, widely used on backhoe loader, mounted loaders,

one spool is 3 positions, the other spool is floating position


flow rate 40 liters
number of spools 2 manual control
inlet section valve side inlet, with relief valve
relief valve set pressure 250bar
inlet port size G1/2
spool type 4 positons, double acting and 3 positions, double acting
handle side arrangement standard handle
spool cap side arrangement 3position, spring return
working section arrangement standard type
work port size G1/2
outlet section type top outlet,side
outlet port size G1/2


Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function



Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

Hydraulic directional control valve joystick valve 2P40 for backhoe loader and mounted loaders with floating function

Product Description:

Monoblock hydraulic control valve with joystick has small and compact design for tight installations.
High-tensile strength cast iron monoblock construction.
Precision ground and hard chrome-plated spools assure a long life.
Vertical or horizontal handle mount.

Application:

This Hydraulic Joystick Control Valve can be used on Loaders, special vehicles, truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
We have variety of Hydraulic Monoblock valves available, 40 liters, 45 liters, 50 liters, 60 liters, 80 liters.


Other types we offer

DCV20

DCV40

DCV60

DCV100

DCV140

DCV200

P81 log splitter valve

HSV6

HSV9

LKF

SD5

SD8
