TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2 BSP Side Ports For Agricultural Machines
Specifications
Brand Name :
HANJIU
Model Number :
TG Series MOTOR
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
180 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
70 - 90 work days
Packaging Details :
standard sea shipping package, box or pallets
Product :
TORQMOTOR
Applications :
agricultural machines, mowers
Rotary :
Counter clockwise
Flange :
6 BOLT MAGNETO
Shaft :
32mm Straight shaft
Description

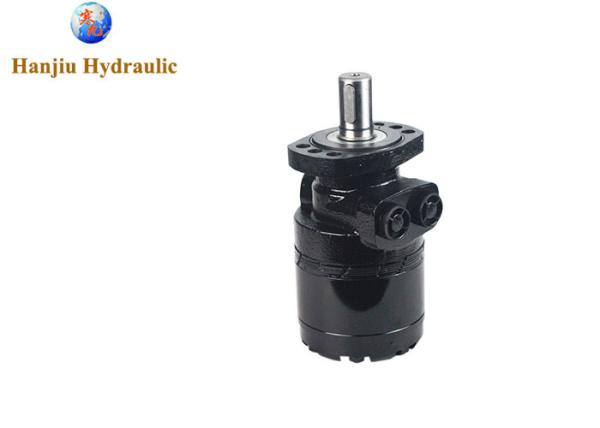

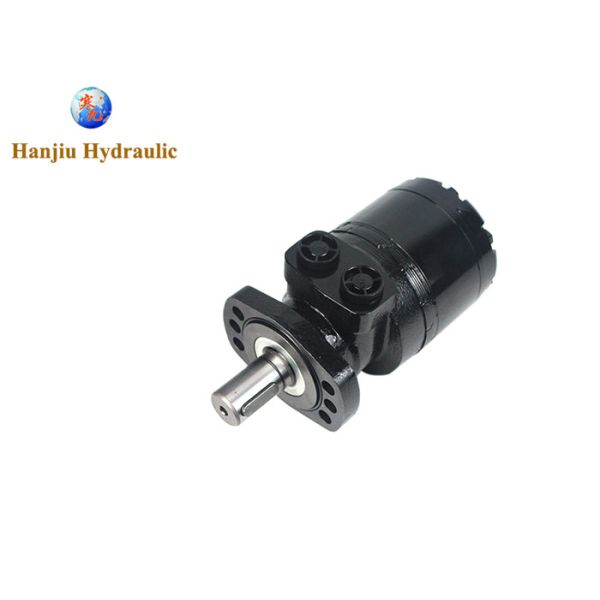

TG0335 Parker TG series torqmotor 6 Bolt Magneto, 1/2" BSP Side Ports for agricultural machines

Part Number:

TG0335EW460AAAA

BMER-2-350-FS-B1-R-B LSHT Hydraulic Motor


6 Bolt Magneto Mount
Displacement (475cc)
32mmKeyed Shaft
#10 SAE ports (7/8-14 UNF)

Specifications:

CODE DISPLACEMENT CONT MAX INTER MAX CONT MAX FLOW INTER MAX FLOW lpm (gpm) CONT MAX TORQUE Nm (lb-in) INTER MAX TORQUE Nm (lb-in) CONT MAX PRESSURE BAR (psi) INTER MAX PRESSURE BAR (psi) PEAK MAX PRESSURE BAR (psi)
cc (in3/rev) SPEED rpm SPEED rpm lpm (gpm)
120 121 (7.4) 360 490 45 (12) 61 (16) 327 (2900) 383 (3400) 207 (3000) 241 (3500) 276 (4000)
160 162 (9.9) 370 470 61 (16) 76 (20) 475 (4200) 542 (4800) 207 (3000) 241 (3500) 276 (4000)
200 204 (12.4) 300 370 68 (18) 83 (22) 542 (4800) 633 (5600) 207 (3000) 241 (3500) 276 (4000)
230 232 (14.2) 260 320 68 (18) 83 (22) 644 (5700) 712 (6300) 207 (3000) 241 (3500) 276 (4000)
260 261 (15.9) 260 350 76 (20) 91 (24) 712 (6300) 791 (7000) 207 (3000) 241 (3500) 276 (4000)
300 300 (18.3) 250 320 83 (22) 95 (25) 825 (7300) 938 (8300) 207 (3000) 241 (3500) 276 (4000)
350 348 (21.2) 220 270 83 (22) 95 (25) 921 (8150) 1045 (9250) 207 (3000) 241 (3500) 276 (4000)
375 375 (22.8) 200 250 76 (20) 91 (24) 1006 (8900) 1158 (10250) 207 (3000) 241 (3500) 276 (4000)
470 465 (28.3) 160 200 76 (20) 91 (24) 1096 (9700) 1184 (10475) 172 (2500) 189 (2750) 207 (3000)
540 536 (32.7) 140 170 76 (20) 91 (24) 983 (8700) 1243 (11000) 138 (2000) 172 (2500) 207 (3000)
750 748 (45.6) 100 130 76 (20) 91 (24) 1062 (9400) 1237 (10950) 103 (1500) 121 (1750) 138 (2000)

TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2

TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2
TG0335 Parker Torqmotor Tg Series 6 Bolt Magneto 1/2
Hydraulic motors are widely used in various industries for their ability to convert hydraulic energy into mechanical energy. They play a crucial role in powering heavy machinery and equipment, offering superior performance and efficiency. In this article, we will explore some common applications of hydraulic motors.
1. Construction industry
2. Agriculture
3. Manufacturing industry
4. Automotive industry
5. Marine industry
6. Renewable energy

In conclusion, hydraulic motors have diverse applications across various industries. Their ability to generate high torque, provide precise control, and operate in extreme conditions makes them indispensable for powering heavy machinery and equipment. From construction and agriculture to manufacturing and renewable energy, hydraulic motors play a crucial role in enhancing productivity and efficiency in numerous sectors.

HANJIU hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation
