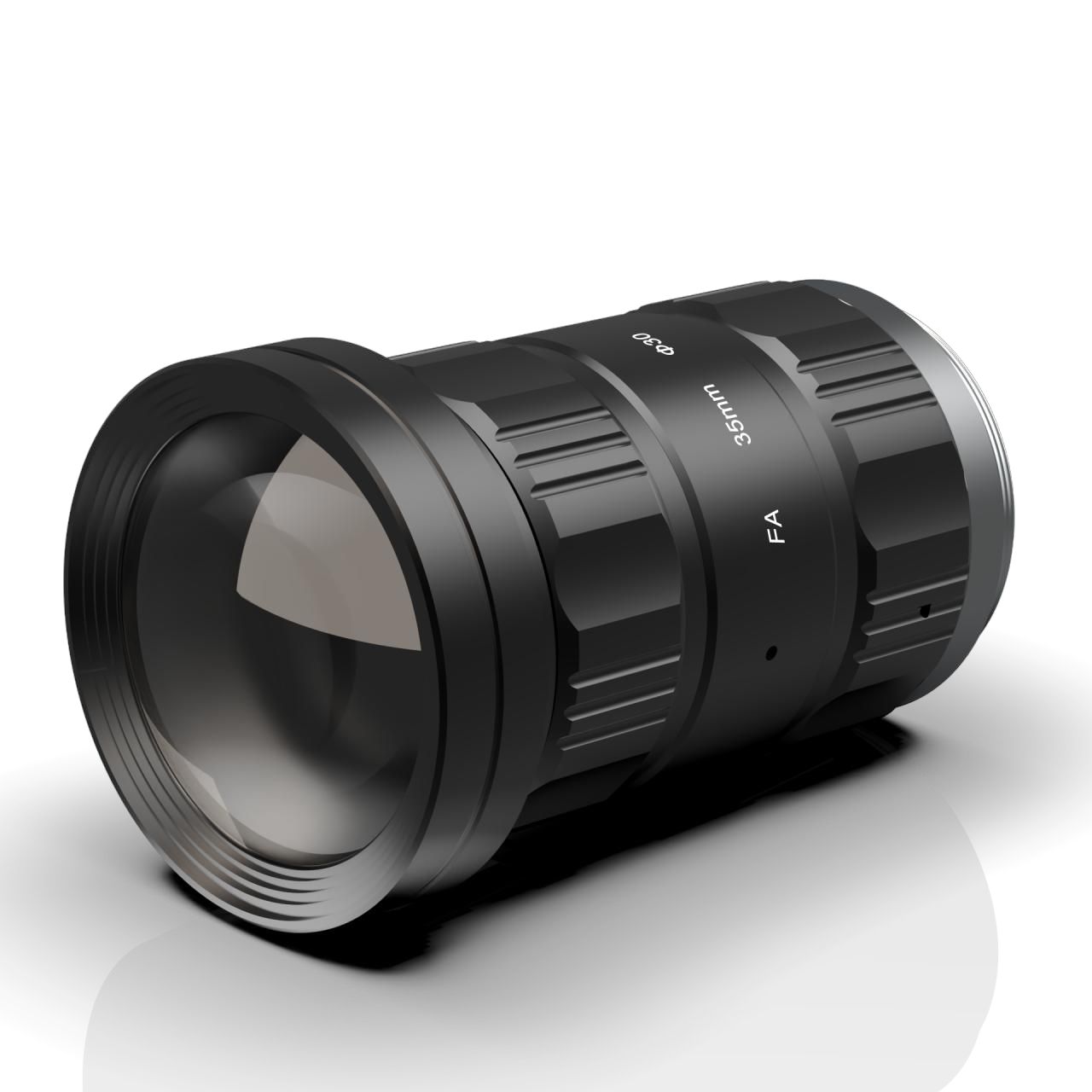

4K Scan Lens Low Distortion M42 Mount Wide Angle Line
4K Scan Lens Low Distortion M42 Mount Wide Angle Line
4K Scan Lens Low Distortion M42 Mount Wide Angle Line
4K Scan Lens Low Distortion M42 Mount Wide Angle Line
4K Scan Lens Low Distortion M42 Mount Wide Angle Line
4K Scan Lens Low Distortion M42 Mount Wide Angle Line
Specifications
Certification :
ROHS\Reach
Resolution :
4K 7μm/8K 3.5μm
Model Number :
F30M1528M42
Focal length :
15 mm
Price :
$0.2~$100
Focus :
0.3m～Inf.
Supply Ability :
1000k/per month
Mount Type :
M42/M58
MOQ :
1
Delivery Time :
3~30days after order
Filter Size :
Customizable adapter ring
Dimensions :
Φ55×83.5mm
Payment Terms :
T/T&L/C
Flange Length :
12mm
Brand Name :
Advance
Product name :
M42 Line Scan Lens
Packaging Details :
EVA+Vacuum
Operating Temp. :
-20℃～60℃
Place of Origin :
China
Lris :
F2.8～F22
Description
4K Low Distortion M42 Mount Wide Angle Line Scan Lens

The F30M1528M42 is a professional-grade 7 μm 4K Low Distortion M42 Mount Wide Angle Line Scan Lens engineered for high-speed industrial machine vision applications. Featuring a short 15mm focal length, this wide angle line scan lens delivers an exceptionally broad field of view (89.4°), making it the premier choice for compact inspection environments where installation space is restricted but wide coverage is mandatory.

With its optimized optical design, this 7 μm 4K low distortion M42 mount wide angle line scan lens minimizes optical aberrations across the entire Φ30mm image circle, ensuring uniform pixel-to-pixel clarity for high-speed automated inspection.

Technical Specifications
Model F30M1528M42 F30M2528M42 F30M3528M42 F30M5020M42 L60F6040-M72
Focal Length 15mm 25mm 35mm 50mm 60mm
Image Size Φ30mm Φ30mm Φ30mm Φ30mm Φ60mm
Resolution 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 8K 7μm/16K 3.5μm
Ratio Range 0.001X~0.05X 0.001X~0.125X 0.001X~0.175X 0.001X~0.167X 0.001X~0.2X
RI > >80% >72% >83% >90% >68%
Working Range - Iris F2.8～F22 F2.8～F22 F2.8～F22 F2.0～F22 F4.0～F16
Working Range - Focus 0.3m～Inf. 0.2m～Inf. 0.2m～Inf. 0.3m～Inf. 0.3m～Inf.
Control - Iris Manual Manual Manual Manual Manual
Control - Focus Manual Manual Manual Manual Manual
Field Angle 89.4° @Φ28.7
52.8° @Φ14.4		 59.7° @Φ28.7
32.1° @Φ14.4		 44.6° @Φ28.7
23.2° @Φ14.4		 22.0° @Φ28.7
10.0° @Φ14.4		 53.1° @Φ60
50.0° @Φ56
TV Distortion -0.1% -0.09% -0.08% -0.07% 0.2%
Flange Length 12mm 12mm 12mm 12mm 12mm
Mount Type M42/M58 M42/M58 M42/M58 M42/M58 M72
Filter Size Customizable adapter ring Customizable adapter ring Customizable adapter ring M43 P=0.75mm M43 P=0.75mm
Dimensions Φ55*83.5mm Φ59*98.8mm Φ55*86.7mm Φ52*63.5mm Φ49*66mm
Weight 323.5g 476g 350g 290g 314g
Operating Temp. -20℃～60℃ -20℃～60℃ -20℃～60℃ -20℃～60℃ -20℃～60℃

4K Scan Lens Low Distortion M42 Mount Wide Angle Line

4K Scan Lens Low Distortion M42 Mount Wide Angle Line

4K Scan Lens Low Distortion M42 Mount Wide Angle Line

Key Features
  • Ultra-Low TV Distortion (-0.1%): This low distortion M42 mount wide angle line scan lens prevents spatial warping at the image margins, critical for high-accuracy industrial metrology.
  • Broad Field of View (89.4°): Designed as a wide angle line scan lens, it covers expansive conveyor widths at close working distances, optimizing factory floor space.
  • Superior Edge Illumination (>80%): Prevents vignetting, guaranteeing that the 7 μm 4K line scan camera sensor receives consistent light intensity from the center to the periphery.
  • Lithium Battery Foil Inspection: Ideal for detecting surface defects, scratches, and coating pinholes on fast-moving lithium battery continuous electrode sheets.
  • Web & Textile Inspection: Enables real-time flaw tracking in continuous sheet manufacturing, including paper mills, steel sheets, and non-woven fabrics.
Frequently Asked Questions
Why should I choose a 7μm 4K Low Distortion M42 Mount Wide Angle Line Scan Lens for web inspection?
A 7μm 4K low distortion M42 mount wide angle line scan lens is essential when you need to inspect wide materials in tight spaces. The 15mm wide-angle focal length allows the camera to be mounted closer to the target, while the low distortion (-0.1%) ensures that measurements taken at the edge of the conveyor are just as accurate as those in the center.
What sensor sizes are compatible with this M42 mount wide angle line scan lens?
This lens features a Φ30mm image format, making it fully compatible with standard 4K 7μm and 8K 3.5μm line scan sensors utilizing M42 or M58 mechanical interfaces.
Is the iris and focus lockable for high-vibration industrial environments?
Yes, this M42 mount wide angle line scan lens features industrial-grade manual locking screws for both focus and iris rings to prevent drift caused by machinery vibrations.
