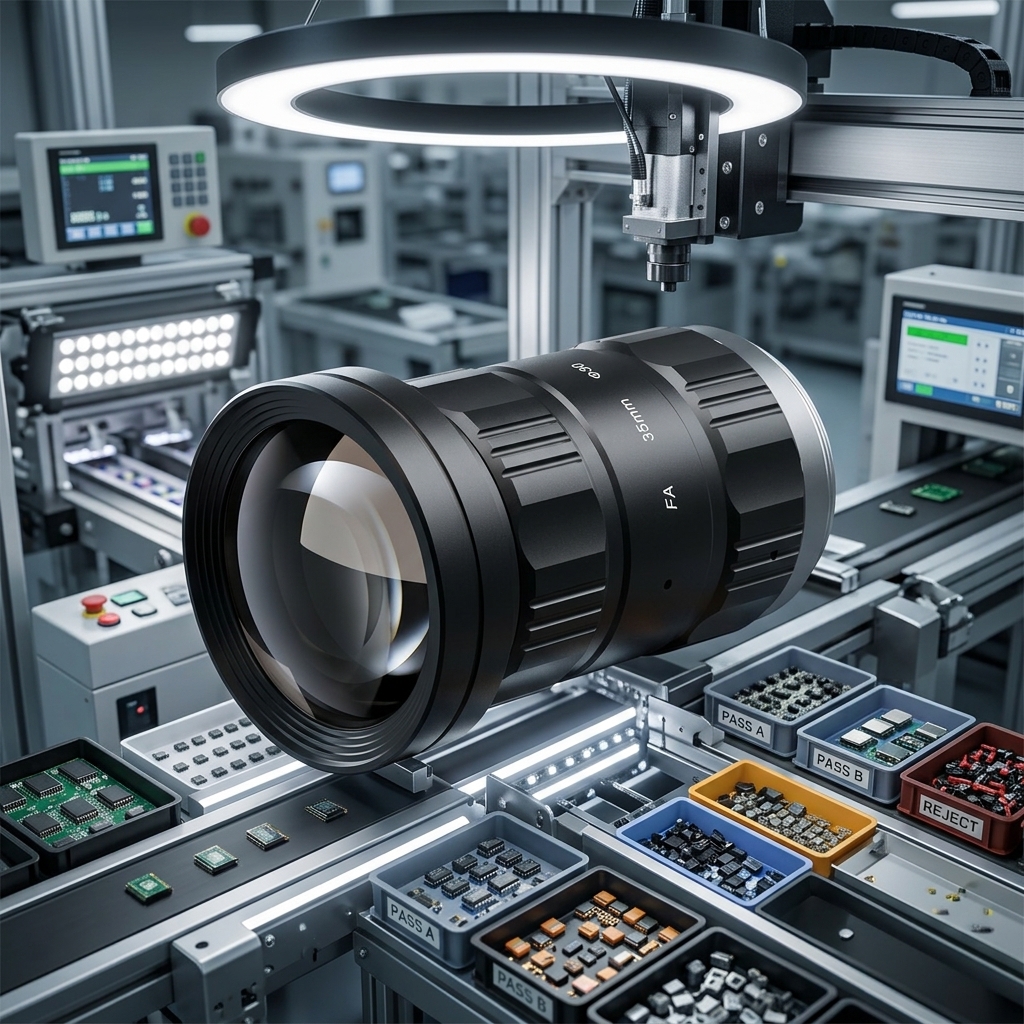

Φ60mm Large Format 16K Line Scan Camera Lens
Φ60mm Large Format 16K Line Scan Camera Lens
Specifications
Certification :
ROHS\Reach
Resolution :
8K 7μm/16K 3.5μm
Model Number :
L60F6040-M72
Focal length :
60 mm
Supply Ability :
1000k/per month
Mount Type :
M72
MOQ :
1
Delivery Time :
3~30days after order
Filter Size :
Customizable adapter ring
Dimensions :
Φ49×66mm
Payment Terms :
T/T&L/C
Flange Length :
12mm
Price :
$0.2~$100
Focus :
0.3m～Inf.
Brand Name :
Advance
Product name :
16K Line Scan Camera Lens
Packaging Details :
EVA+Vacuum
Operating Temp. :
-20℃～60℃
Place of Origin :
China
Lris :
F4.0～F16
Description
Φ60mm Large Format 16K Line Scan Camera Lens
The L60F6040-M72 is a pinnacle-tier Φ 60mm Large Format 16K Line Scan Camera Lens built exclusively for ultra-high-resolution, large-scale industrial surface inspections. Boasting a massive Φ60mm image circle, this large format 16K line scan camera lens is engineered to fully cover the newest generations of 8K 7μm and 16K 3.5μm ultra-long line scan sensors. Utilizing a robust M72 mechanical mount, this Φ 60mm large format 16K line scan camera lens provides the rock-solid stability and high optical transmission required for advanced semiconductor, glass panel, and large-format continuous web monitoring networks.
Technical Specifications
Model F30M1528M42 F30M2528M42 F30M3528M42 F30M5020M42 L60F6040-M72
Focal Length 15mm 25mm 35mm 50mm 60mm
Image Size Φ30mm Φ30mm Φ30mm Φ30mm Φ60mm
Resolution 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 4K 7μm/8K 3.5μm 8K 7μm/16K 3.5μm
Ratio Range 0.001X~0.05X 0.001X~0.125X 0.001X~0.175X 0.001X~0.167X 0.001X~0.2X
RI > >80% >72% >83% >90% >68%
Working Range - Iris F2.8～F22 F2.8～F22 F2.8～F22 F2.0～F22 F4.0～F16
Working Range - Focus 0.3m～Inf. 0.2m～Inf. 0.2m～Inf. 0.3m～Inf. 0.3m～Inf.
Control - Iris Manual Manual Manual Manual Manual
Control - Focus Manual Manual Manual Manual Manual
Field Angle 89.4° @Φ28.7
52.8° @Φ14.4		 59.7° @Φ28.7
32.1° @Φ14.4		 44.6° @Φ28.7
23.2° @Φ14.4		 22.0° @Φ28.7
10.0° @Φ14.4		 53.1° @Φ60
50.0° @Φ56
TV Distortion -0.1% -0.09% -0.08% -0.07% 0.2%
Flange Length 12mm 12mm 12mm 12mm 12mm
Mount Type M42/M58 M42/M58 M42/M58 M42/M58 M72
Filter Size Customizable adapter ring Customizable adapter ring Customizable adapter ring M43 P=0.75mm M43 P=0.75mm
Dimensions Φ55*83.5mm Φ59*98.8mm Φ55*86.7mm Φ52*63.5mm Φ49*66mm
Weight 323.5g 476g 350g 290g 314g
Operating Temp. -20℃～60℃ -20℃～60℃ -20℃～60℃ -20℃～60℃ -20℃～60℃
Φ60mm Large Format 16K Line Scan Camera Lens Φ60mm Large Format 16K Line Scan Camera Lens Φ60mm Large Format 16K Line Scan Camera Lens
Key Features
  • Massive Φ60mm Image Circle: Designed as a true large format 16K line scan camera lens, it completely covers massive high-resolution sensor lengths without corner shading.
  • 16K Resolving Power: Engineered to capture sub-micron level anomalies, this Φ 60mm large format 16K line scan camera lens supports ultra-dense 3.5μm pixels.
  • Heavy-Duty M72 Mount Connection: The M72 mount ensures zero optical axis tilting, securing heavy, large-format line scan camera modules perfectly.
  • Semiconductor Wafer Inspection: Scans entire semiconductor wafer surfaces or photolithography masks for nano-scale defects and dust particles.
  • OLED & FPD Glass Inspection: Ideal for analyzing large flat panel glass substrates for pixel array inconsistencies, glass alignment, and micro-scratches.
  • High-End Copper Foil & Battery Separation Film Scan: Tracks microscopic punctures or uneven coating thickness across ultra-wide sheet production processes.
Frequently Asked Questions
  • Q: Why do I need a Φ60mm Large Format 16K Line Scan Camera Lens instead of a standard M42 industrial lens?
    A: Standard M42 lenses only project a Φ30mm image circle. If you try to mount them on a 12K or 16K camera, the edges will be pitch black. This Φ 60mm large format 16K line scan camera lens delivers a massive Φ60mm sweet spot, ensuring the entire length of a 16K 3.5μm sensor receives high-quality image data.
  • Q: What is the mechanical interface of this large format 16K line scan camera lens?
    A: It comes with a high-rigidity M72 thread mount, providing a rock-solid, precise mechanical connection to minimize flexure in automated production lines.
  • Q: What is the optimal aperture range for maintaining peak resolution?
    A: While the lens covers F4.0 to F16, the sweet spot for peak diffraction-limited performance with a 16K sensor is typically between F4.0 and F5.6.
