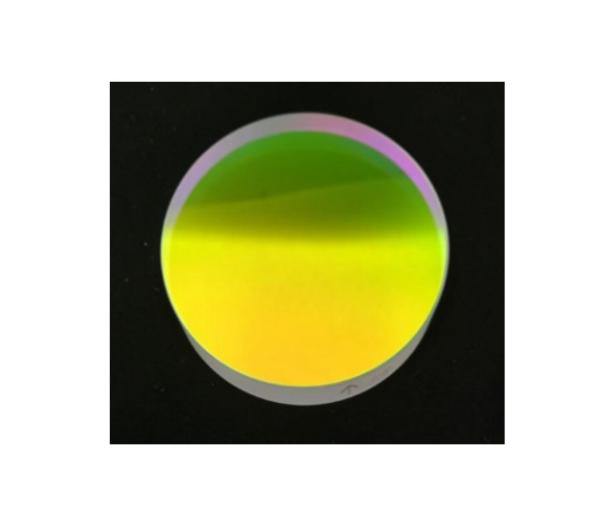

H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
Specifications
Brand Name :
ZEIT
Model Number :
Reflector-D-X
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1piece
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Carton with inner plastic case
Weight :
Customizable
Size :
Customizable
Customizable :
Available
Shipping Terms :
FEDEX, DHL, EMS,TNT, etc.
Description

Dielectric Film Reflector


Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,

planar processing, spherical processing, aspheric processing, coating, etc.

Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.

Performance
● Broadband dielectric film reflector is coated with multilayer films which is a superposition of films with different

refractive index. The angle of incidence was designed to be 45°. Such reflector has an unprecedented broad

reflection band.


● The bandwidth of a single reflector covers the wavelengths in VIS and NIR regions.


● Advantages: its characteristics hardly deteriorate with time. It is durable and easy to clean, etc.


Features

　 Dielectric Film Reflector
Model Reflector-D-X
Material

H-K9L(BK7) , Quartz, Glass ceramics
Optical film Multi-layer dielectric film
Surface precision λ/10
Parallelism ≤30 seconds
Surface quality 40-20
Dimensional tolerance ±0.1mm
Wavelength for measurement 632.8nm


Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.


Our ISO Certification

H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm

Parts Of Our Patents

H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nmH-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm

Parts Of Our Awards and Qualifications of R&D

H-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nmH-K9L Quartz Glass Ceramics Multilayer Dielectric Film Reflector 632.8nm
