Reflection Operation Mode Digital Autocollimator In Machining
Reflection Operation Mode Digital Autocollimator In Machining
Specifications
Brand Name :
ZEIT
Model Number :
DA40-3
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Operation Mode :
Reflection / Transmission
Shipping Terms :
By Sea / Air / Multimodal Transport, FEDEX, DHL, EMS, TNT, etc
Guarantee Period :
1 year or case by case
Customizable :
Available
Description

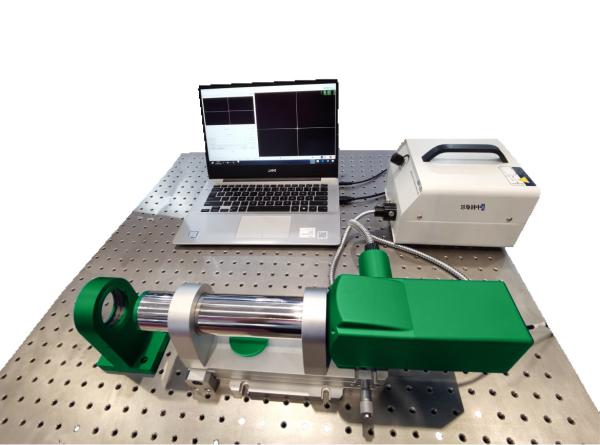

Digital Autocollimator in machining

Application Area

It is a high-precision and non-contact angle measuring instrument. Measurements involve edge angle,

angle error of rectangular prism, flatness, perpendicularity, guide rail straightness, etc. Small angle

automatic measurement can be realized in CNC machine processing field to improve detection efficiency.

Working Principle

Firstly, light passes through the reticle plate on objective lens focal plane, then forms parallel light;

Secondly, parallel light is reflected back by a mirror perpendicular to the optical axis, then passes

through the objective lens and coincidents with the standard line; Thirdly, when the mirror is tilted

at a slight angleα,the reflected light beam's tilt angleis 2α.

Features

Model DA40-3

Clear Aperture

 Ф40mm
Precision

20＂± 0.1＂

600＂± 0.2＂
Repeatability 0.02＂

Resolution

 0.002＂
Frame rate 30Hz
Focal length 300 mm
Note: Customized production available.

Product Benefits

→ Display optics true image in real time with an industrial camera;

→ Measurement precision reach to 1/20 with sub pixel image processing technology;

→ Recognize multiple optical target(spot, cross-shaped, line-shape, I –shaped);

→ Stable structure design to ensure stability.

Our Advantages

We are manufacturer.

We have been undertaking Chinese National Science and Technology Major Projects.

We have been undertaking Chinese NationalMajor Laser engineering projects.

Member of Chinese Optical Society.

Deputy director unit of Laser & Optoelectronics Progress.

Member of China testing strategic cooperation alliance.

Reply within 24 working hours.
