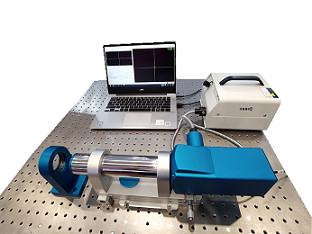

Ф40mm Clear Aperture Digital Autocollimator For Flatness Measuring
Ф40mm Clear Aperture Digital Autocollimator For Flatness Measuring
Specifications
Brand Name :
ZEIT
Model Number :
DA40-2
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Operation Mode :
Reflection / Transmission
Shipping Terms :
By Sea / Air / Multimodal Transport, FEDEX, DHL, EMS, TNT, etc
Guarantee Period :
1 year or case by case
Customizable :
Available
Description

Ф40mm Digital Autocollimator

Application Area

It is commonly used to measure guide rail straightness and panel flatness( also called flatness

measuring instrument), measure the perpendicularity with steering prism accessory. It is applied

to aerospace, shipbuilding, military projects and other industries requiring high precision, such as

machining industrial quality assurance (flatness, flatness, perpendicularity, parallelism...), metrological

verification angle testing standards, prism angle positioning and monitoring, optical component testing

and installation accuracy control, etc.

Working Principle

Light from light source passes through a reticle plate, a semi-reflection mirror, a objective lens,and

then is projected onto the reflector. If the reflector is tilted, the reflected crosshair image deviate the

zero position on reticle plate.

Features

Model DA40-2

Clear Aperture

 Ф40mm
Precision

20＂± 0.2＂

600＂± 0.4＂
Repeatability 0.05＂

Resolution

 0.01＂
Frame rate 30Hz
Focal length 300 mm
Note: Customized production available.

Product Benefits

→ Display optics true image in real time with an industrial camera;

→ Measurement precision reach to 1/20 with sub pixel image processing technology;

→ Recognize multiple optical target(spot, cross-shaped, line-shape, I –shaped);

→ Stable structure design to ensure stability.

Our Advantages

We are manufacturer.

We have been undertaking Chinese National Science and Technology Major Projects.

We have been undertaking Chinese NationalMajor Laser engineering projects.

Member of Chinese Optical Society.

Deputy director unit of Laser & Optoelectronics Progress.

Member of China testing strategic cooperation alliance.

Reply within 24 working hours.

Our ISO Certification

Ф40mm Clear Aperture Digital Autocollimator For Flatness Measuring

Parts Of Our Patents
Ф40mm Clear Aperture Digital Autocollimator For Flatness MeasuringФ40mm Clear Aperture Digital Autocollimator For Flatness Measuring

Parts Of Our Awards and Qualifications of R&D

Ф40mm Clear Aperture Digital Autocollimator For Flatness MeasuringФ40mm Clear Aperture Digital Autocollimator For Flatness Measuring
