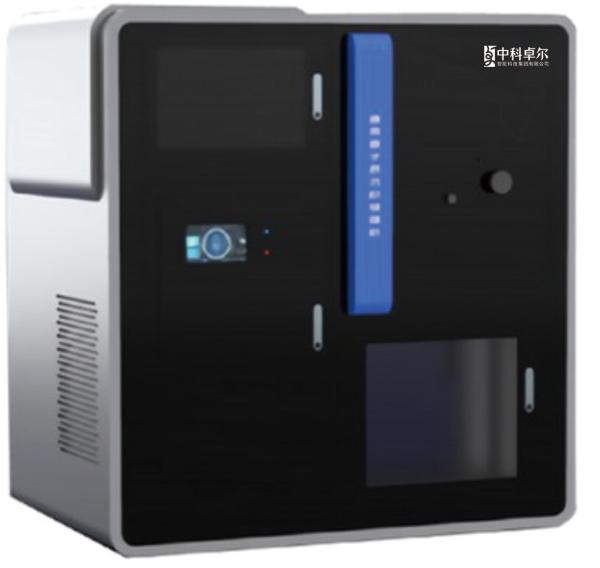

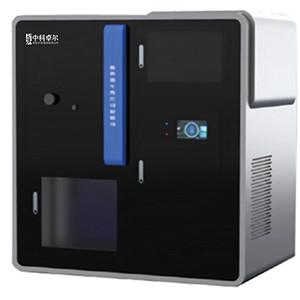

Self-developed high-end optical coating equipment with 1200mm*500mm(customized)
Self-developed high-end optical coating equipment with 1200mm*500mm(customized)
Self-developed high-end optical coating equipment with 1200mm*500mm(customized)
Self-developed high-end optical coating equipment with 1200mm*500mm(customized)
Specifications
Brand Name :
Zeit Group
Model Number :
ALD1200-500
Certification :
NA
Place of Origin :
CHENGDU.P.R CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1 set within 8 month
Delivery Time :
Delivery within 8 months after signing the contract
Packaging Details :
Wooden case packing
product name :
Self-developed high-end optical coating equipment
model :
ALD1200-500
application area :
MEMS device,3D packaging，sensor，Medical
Working principle :
Atomiclayer deposition (ALD) is a method by which a substance can be deposited on a substrate layer by layer in the form of a single atomic film.
Vacuum chamber structure :
Customized according to customer needs
Thickness control accuracy :
±0.1nm
Uniformity of film thickness :
≦±0.5%
Coating temperature range :
Normal temperature-500℃
Description

Self-developed high-end optical coating equipment with 1200mm*500mm(customized)

Working principle

Atomiclayer deposition (ALD) is a method by which a substance can be deposited on a substrate layer by layer in the form of a single atomic film.

Specification parameter

model ALD1200-500
Coating film system AL2O3,TiO2,ZnO and etc.
Coating temperature range Normal temperature-500℃
Coating vacuum chamber dimensions Inner diameter 1200mm, height 500mm(customizable)
Vacuum chamber structure Customized according to customer needs
Background vacuum <5X10-7mbar
Coating thickness ≥0.15nm
Thickness control accuracy ±0.Inm

Application Area

MEMS device
Electroluminescent plate
display
Storage material
Inductive coupling
Perovskite thin film battery
3D packaging
Luminescence application
sensor
Carp battery

ALD technology Advantages

①The precursor is saturated chemisorption, which ensures the formation of a large area uniform film.

②Multi-component nanosheets and mixed oxides can be deposited.

③Inherent deposition uniformity, easy scaling, can be directly scaled up.

④Can be widely applied to various shapes of the base.
